Repair
32 312066ZAF
Motor Brushes
Brush Removal
NOTE: Replace brushes worn to less than 1/2 in. (13
mm). Brushes wear differently on each side of motor;
check both sides. Brush Repair Kit 234037 is available.
1. Turn main power OFF . Disconnect power
supply.
2. Perform the Pressure Relief Procedure, page 25.
3. Remove motor cover, screw, and washers. Remove
inspection covers, screws, and gaskets from each
end of motor.

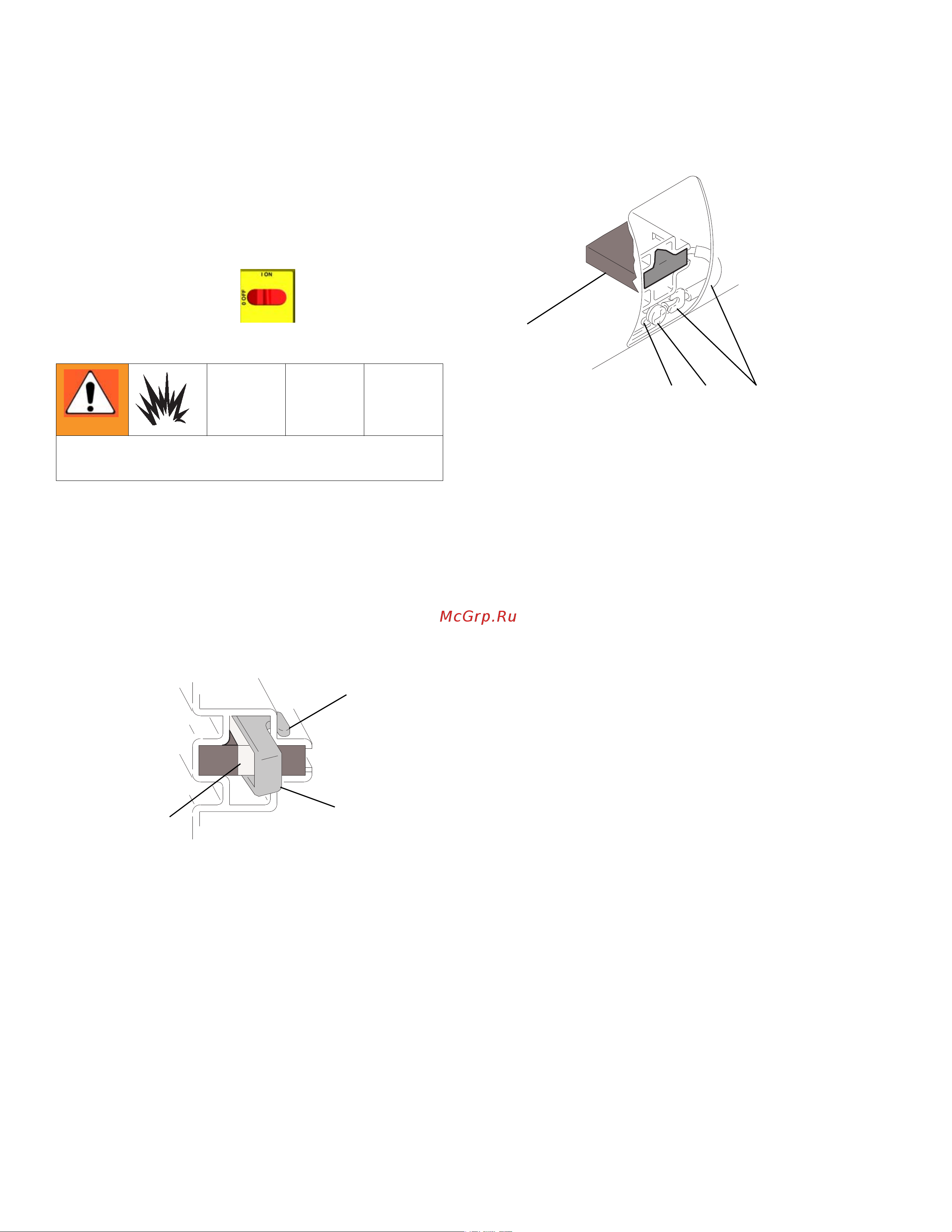

4. Push in spring clip (C) to release hooks (H) from
brush holder. Pull out clip and spring (S).
NOTE: One brush has a wire on top for brush wear
signal. Note which side of motor it is on. Unplug at
spade connector provided.
5. Loosen terminal screw (R). Pull away brush lead
(L), being careful motor lead terminal (T) remains in
place. Remove and discard brush (B).
6. Inspect commutator for excessive pitting, burning,
or gouging. Black color on commutator is normal.
Have commutator resurfaced by qualified motor
repair shop if brushes wear too quickly.
7. Repeat for other side.
Wait 5 min for stored voltage to discharge (E-30 and
E-XP2 models only).
01227-2
