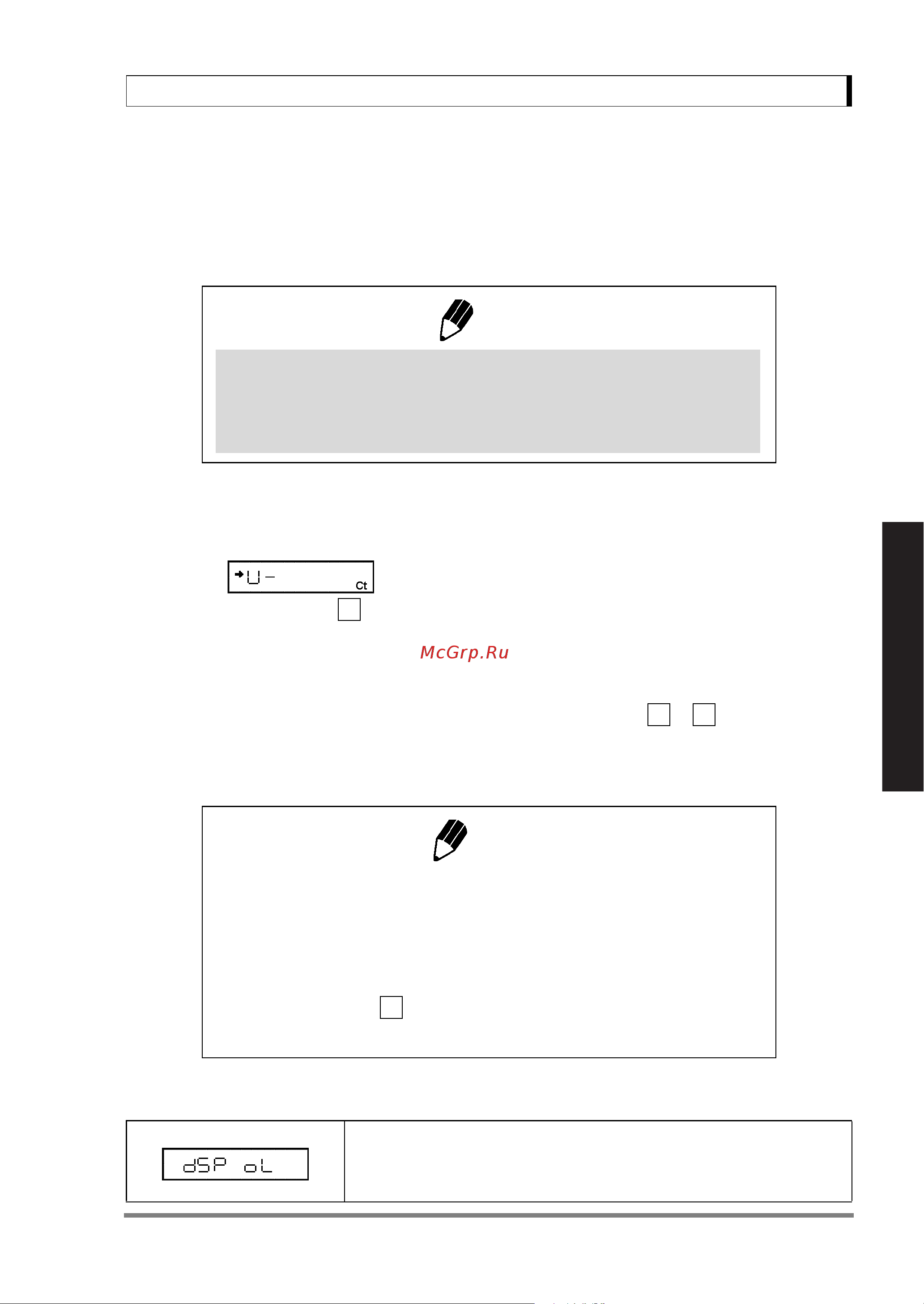

Shimadzu UX-2200H [69/129] Unit display set up
![Shimadzu UX-2200H [69/129] Unit display set up](/views2/1910815/page69/bg45.png)
53
12. Units
Read Chapter 7 Before Use of These Pages
12. Units
12.1 Unit Display Set-up
The UW/UX series balance can display weighed results in various weighing units (Refer to 5.2).
1 It is possible to display units other than “g”.
Press the [UNIT] key in mass display to sequen-
tially change the selected units.
2 Before weighing, set the display units to be
used. Gram, %, and PCS (piece counting) are set
up before shipment. Set up the desired units by
selecting menu from to .
For details of PCS and specific gravity measure-
ment, refer to 13.3 and 14.1 to 14.2.
Error Display
Note
Using a verified balance as a legal measuring instrument in the EU:
Only g (gramme=gram), ct (carat) weighing units, percentage conversion
and piece counting are available for use. Carat is not available for
UW820SV and UW8200SV models.
(Example)
When menu item (carat) has
been selected.
58
54 62
Notes
For the unit names, refer to the menu map.
• In the unit setting menu, the stability symbol is illuminated to indicate the
currently set units.
• Set or release the unit by pressing the [O/T] key when the unit is dis-
played. Gram cannot be released.
User unit (menu item ): A numeric value (multiplier) is multiplied by the
gram (g) weight of the unit.
Display Overload: This display appears if the mass display exceeds 7 digits
due to the choice of unit.
