13. Enhancing Productivity

Read Chapter 7 Before Use of These Pages

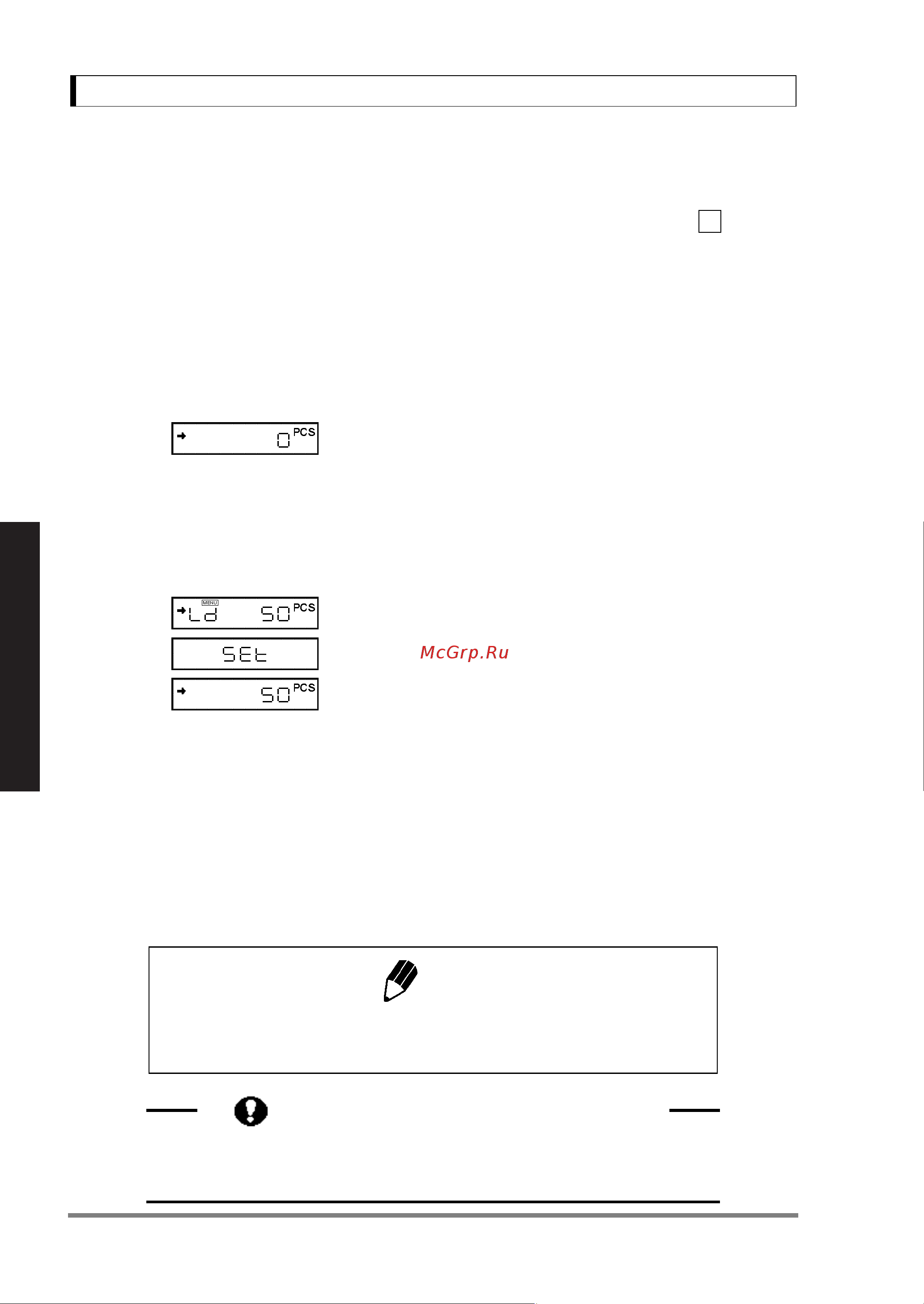

13.2 Piece Counting (PCS)

1 Set up the PCS with menu item if it is not

set.

(The PCS unit is set before shipment.)

2 Press the [UNIT] key several times in the mass

display until the PCS is displayed.

3 Load the container and press the [O/T] key to

tare the balance.

4 Count exactly five pieces (or 10, 20, 50, 100, or

200 pieces) of sample to be measured and load

them on the pan.

5 Press the [CAL] key.

6 Every time the [CAL] key is pressed, the dis-

play sequentially changes as

“Ld 5pcs” ....“Ld 200pcs”, “Ld 5pcs”...

The default setting is “Ld 10pcs”.

Press the [O/T] key when the display is equiva-

lent to the number of loaded pieces.

Example:If 50 pieces are loaded, press the [O/T]

key when “Ld 50pcs” is displayed. This

determines the unit weight or average

weight per piece.

As sample is added or removed, the

piece count (number of pieces) is dis-

played.

(Example)

Note

Repeat steps 3 through 6 above when the sample or manufacturing lot is

changed.

Piece Count Menu Display at Next Setting

In this example, when the [CAL] key is pressed in the next PCS menu, dis-

play starts from “Ld 50pcs”.
