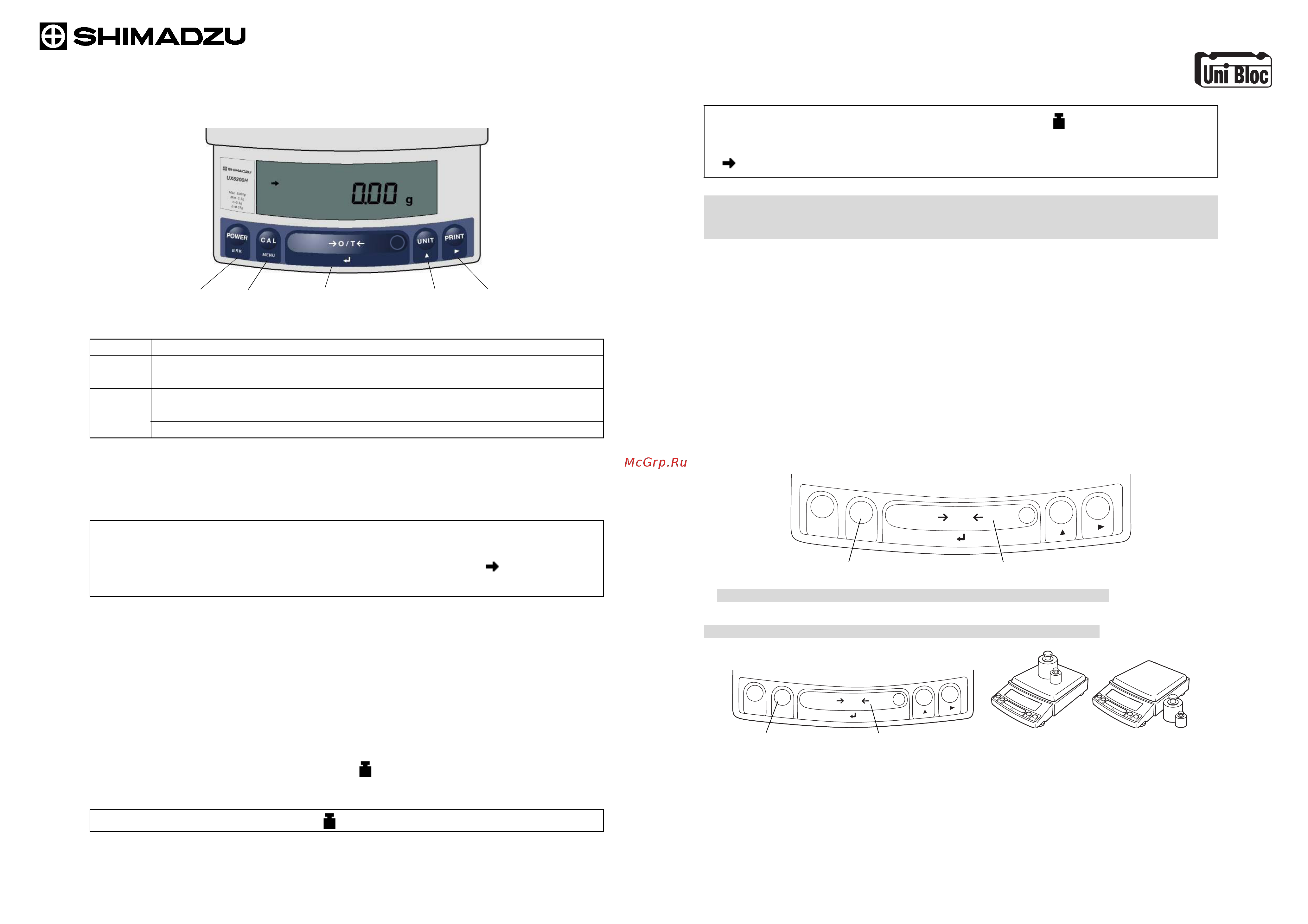

Key Switch Basic Function
Key function during basic weighing (Refer main manual 2.2 for details)
Stabilizing Display / Faster Response for Filling
• If it is unavoidable to install the balance at a location subject to air flow or vibration, try changing the
environmental settings to stabilize the reading.
This setting will bring more stability, however response will be slower. If further stability is desired,
select “EA-wind” instead of “EA-vibr” in the above procedure.
• If faster response is required for filling or dosing purpose, select “PoUr” instead of “EA-vibr” in the
above procedure. Pouring mode is set and the response will be very fast, but display unstable. Refer
to 11.2 for details of Pouring mode.
Hints on Fully-automatic Span Calibration(UW series only)
Fully-automatic span calibration PSC
Default setting of PSC is ON. Upon detection of temperature change, span calibration is automatically
performed to maintain accuracy. The Weight symbol blinks prior to fully-automatic calibration.
How to skip a PSC calibration
[POWER] Switches between operation and stand-by (On/Off).
[CAL] Enters span calibration or menu item selection.
[O/T] Tares the balance (Displays zero with a container on the pan)
[UNIT] Switches weighing units.
[PRINT]
Output the displayed data to an electronic printer or a computer.
To output date and time → Press and hold for about 3 seconds
(From mass display) Press [CAL] repeatedly till “E” is blinking in “SEL:EAUS” display → Press
[O/T] (“
→E- AbtP8” is displayed with “→” blinking) → Press [CAL] once (“A” blinks) → Press
[CAL] repeatedly until “EA-vibr” is displayed
→ Press [O/T] (Stability mark is added to “EA-
vibr”)
→ Press [POWER] repeatedly to return to mass display.
Press [POWER] key while Weight symbol is blinking.
[POWER] key [CAL] key [O/T] key [UNIT] key [PRINT] key
UW/UX Series
[Explanatory Operation Sheet]
How to switch off PSC
When PSC is off, perform span calibration according to Span Calibration Procedure when it is necessary.
Using a verified balance as a legal measuring instrument in the EU:
When PSC, fully-automatic span calibration, is not activated, operator must carry out span calibration
with the built-in weight (refer to the following) upon blinking of the Weight Symbol.
Clock-CAL is a practical alternative that performs regular automatic span calibration according to
time setting (UW series only, up to 3 times a day, refer to main manual 10.3.3).
Span Calibration Procedure
Calibration is required to accurately weigh items with an electronic balance.
Calibration should be performed:
• When the location of the balance is changed, even within the same room.
• When the room temperature changes considerably.
• Periodically, according to the quality control plan of the user.
Before span calibration, verify that the balance is in the mass-display and that the pan is empty.
UW series [Span Calibration Using the Built-in Weight]
(1) Press the [CAL] key once. “i-CAL” is displayed.
(2) Press the [O/T] key. After “i-CAL3”...“i-CAL1”, and “SEt”, “CAL End” are displayed indicating the
completion of span calibration, the mass-display will return.
* This is the calibration of default setting. Refer to 10.3.1 for the use of external weights
(Not applicable to a verified balance as a legal measuring instrument in the EU).
UX series [Span Calibration Using External Weights]
Not applicable to a verified balance as a legal measuring instrument in the EU
(1) Press the [CAL] key once. “E-CAL” is displayed.
(2) Press the [O/T] key.
The value of the correct calibration weight to be loaded is displayed and blinks.
(3) Load the indicated calibration weight and press the [O/T] key.
(4) When the zero display blinks, unload the weight from the pan and press the [O/T] key. “SEt” is
displayed briefly to indicate completion of span calibration. Then the mass-display will return.
(From mass display) Press [CAL] repeatedly till Weight symbol is blinking
→ Press [O/T]
(“- iEtAtP” is displayed with “i” blinking)
→ Press [CAL] repeatedly until “A” blinks → Press [O/T]
(“PSC on” is displayed)
→ Press [CAL] (“PSC off” is displayed) → Press [O/T] (Stability mark
) is added)
→ Press [POWER] repeatedly to return to the mass display.
POWER
POWER
PRINT
PRINT
POWER
C A L
PRINT
UNIT
O / T
BRK
M
ENU
(1) (2)
P
O
W
E
R
P
O
W
E
R
PR
IN
T
PR
IN
T
P
O
W
E
R
C
A L
P
R
IN
T
UNIT
O / T
B
R
K
M
E
N
U
(1) (2) (3) (4) (4)(3)
