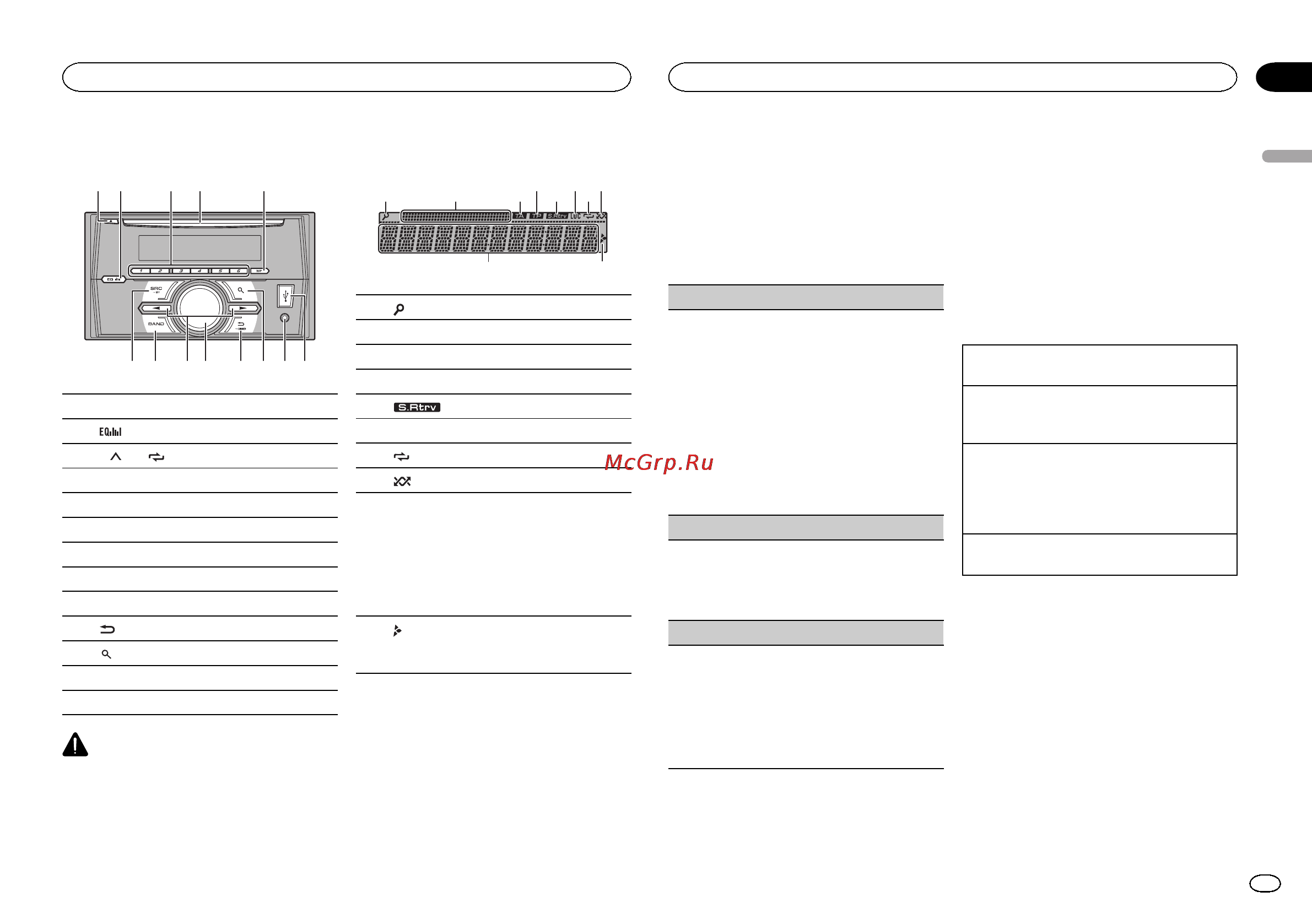

Pioneer FH-X360UB [3/32] Basic operations

Black plate (3,1)

Head unit

1 2 4 5

8 9

7 a c6 b d

1 h (eject)

(equalizer)

3 1/

to 6/

4 Disc loading slot

5 DISP

6 SRC/OFF

7 BAND

8 c/d

9 MULTI-CONTROL (M.C.)

(back)/DIMMER (dimmer)

(list)

c AUX input jack (3.5 mm stereo jack)

d USB port

CAUTION

Use an optional Pioneer USB cable (CD-U50E)

to connect the USB storage device as any device

connected directly to the unit will protrude out

from the unit, which could be dangerous.

Display indication

21 3 75

4 6 8

1 (list)

2 Sub information section

3 TA (traffic announcements)

4 TP (traffic program identification)

(sound retriever)

6 LOC (local seek tuning)

(repeat)

(random)

Main information section

! Tuner: band and frequency

! RDS: program service name, PTY infor-

mation and other literal information

! CD player and USB storage device:

elapsed playback time and text informa-

tion

Appears when a lower tier of folder or menu

exists.

Set up menu

1 After installation of this unit, turn the

ignition switch to ON.

SET UP appears.

2 Turn M.C. to switch to YES.

# If you do not use the unit for 30 seconds, the set

up menu will not be displayed.

# If you prefer not to set up at this time, turn M.C.

to switch to NO.

3 Press M.C. to select.

4 Follow these steps to set the menu.

To proceed to the next menu option, you need to

confirm your selection.

LANGUAGE (multi-language)

This unit can display the text information from a

compressed audio file even for information em-

bedded in English, Russian or Turkish.

! If the embedded language and the selected

language setting are not the same, text infor-

mation may not display properly.

! Some characters may not be displayed prop-

erly.

1 Turn M.C. to select the desired setting.

РУС (Russian)—TUR (Turkish)—ENG (Eng-

lish)

2 Press M.C. to confirm the selection.

CLOCK SET (setting the clock)

1 Turn M.C. to adjust hour.

2 Press M.C. to select minute.

3 Turn M.C. to adjust minute.

4 Press M.C. to confirm the selection.

FM STEP (FM tuning step)

Use FM STEP to set FM tuning step options (seek

step settings).

1 Turn M.C. to select the FM tuning step.

100 (100 kHz)—50 (50 kHz)

2 Press M.C. to confirm the selection.

QUIT appears.

! The manual tuning step is fixed at 50 kHz.

5 To finish your settings, turn M.C. to select

YES.

# If you prefer to change your setting again, turn

M.C. to switch to NO.

6 Press M.C. to select.

Notes

! You can set up the menu options from the

system menu and initial menu. For details

about the settings, refer to System menu on

page 6 and Initial menu on page 7.

! You can cancel set up menu by pressing

SRC/OFF.

Basic operations

Turning the unit on

1 Press SRC/OFF to turn the unit on.

Turning the unit off

1 Press and hold SRC/OFF until the unit turns

off.

Selecting a source

1 Press SRC/OFF to cycle between:

RADIO—CD—USB—AUX

! USB MTP displays while the MTP connection

is in use.

Adjusting the volume

1 Turn M.C. to adjust the volume.

Note

When this unit’s blue/white lead is connected to

the vehicle’s auto-antenna relay control termi-

nal, the vehicle’s antenna extends when this

unit’s source is turned on. To retract the anten-

na, turn the source off.

English

Using this unit

Section

Using this unit

<QRB3357-A>3
