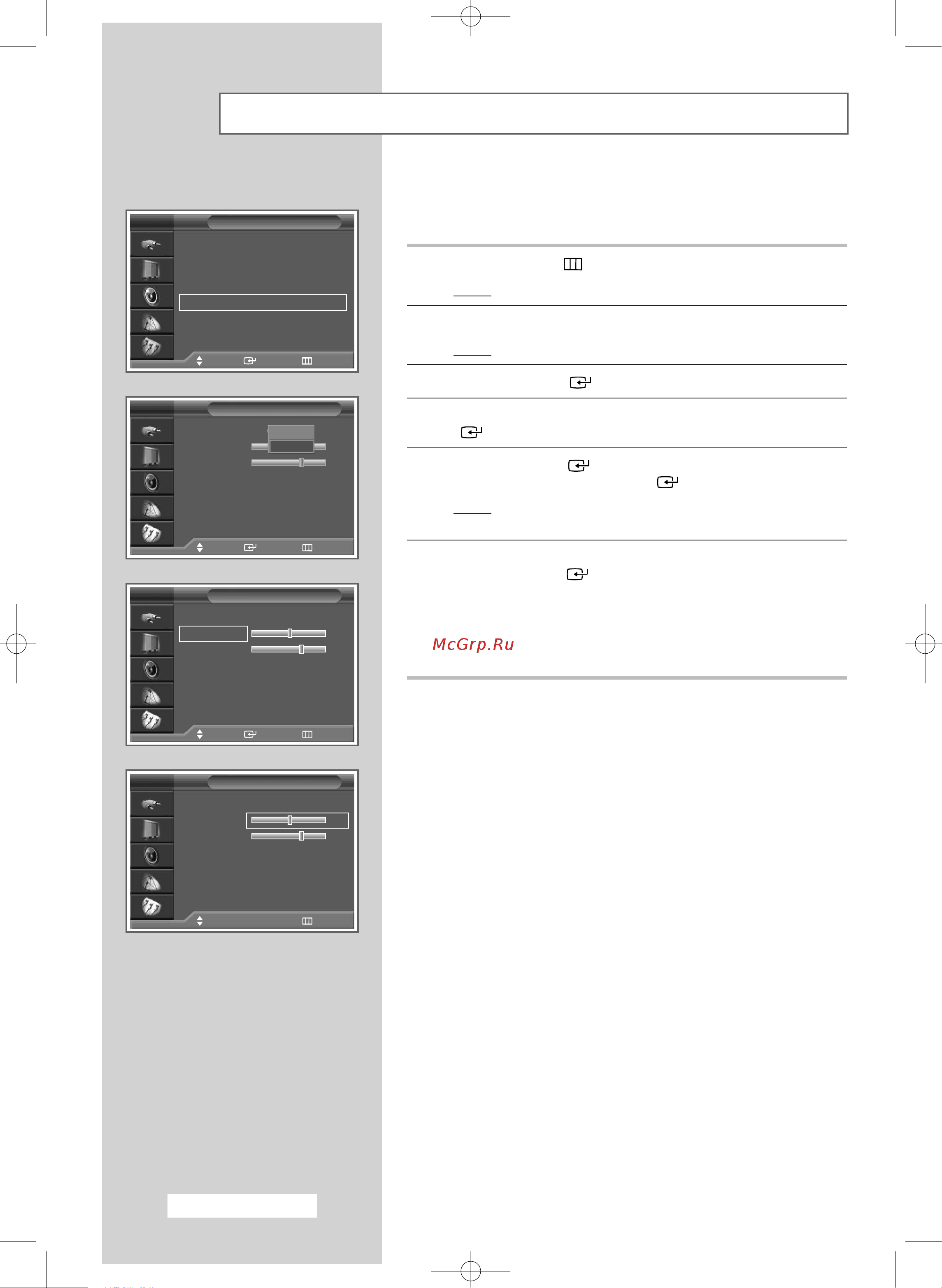

Samsung LW-46G15 W [42/72] Setting the sub woofer output
![Samsung LW-46G15 W [42/72] Setting the sub woofer output](/views2/1931824/page42/bg2a.png)
English - 42
If your TV is connected to a Sub Woofer, you can select the Sub
Woofer output, volume and cut-off frequencies.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the ▲ or ▼ button to select Sound.
Result
:
The options available in the
Sound
group are displayed.
3 Press the ENTER () button.
4 Press the ▲ or ▼ button to select Sub Woofer. Press the ENTER
() button
.
5 Press the ENTER () button again. Press the ▲ or ▼ button to
select On, then press the ENTER () button.
Result
:
The options available in the Sub Woofer group are
displayed.
6 Press the ▲ or ▼ button to select the item you wish to adjust, then
press the ENTER () button. Press the œ or √ button to adjust
to your preference.
◆ Volume : Adjusts the volume of the sub woofer.
◆ Cut off Freq. : Adjusts the cut off frequency for the
sub woofer for the best bass response in
your room.
Setting the Sub Woofer Output
TV
Sub Woofer : Off
Volume 50
Cut Off Freq. 150
Sub Woofer
Move Enter Return
Off
On
TV
Sub Woofer : On
√
√
Volume 50
Cut Off Freq. 150
Sub Woofer
Move Enter Return
Sound
Move Enter Return
Mode : Custom
√
√
Equalizer
√√
Auto Volume : Off
√√
SRS TSXT :Off
√√
Sub Woofer
√√
TV
Sub Woofer : On
√
√
Volume 50
Cut Off Freq. 150
Sub Woofer
Move
œœ √√
Adjust Return
TV
BN68-00746A(GAIA2_Euro_ENG) 2004/08/23 03:55 PM Page 42
