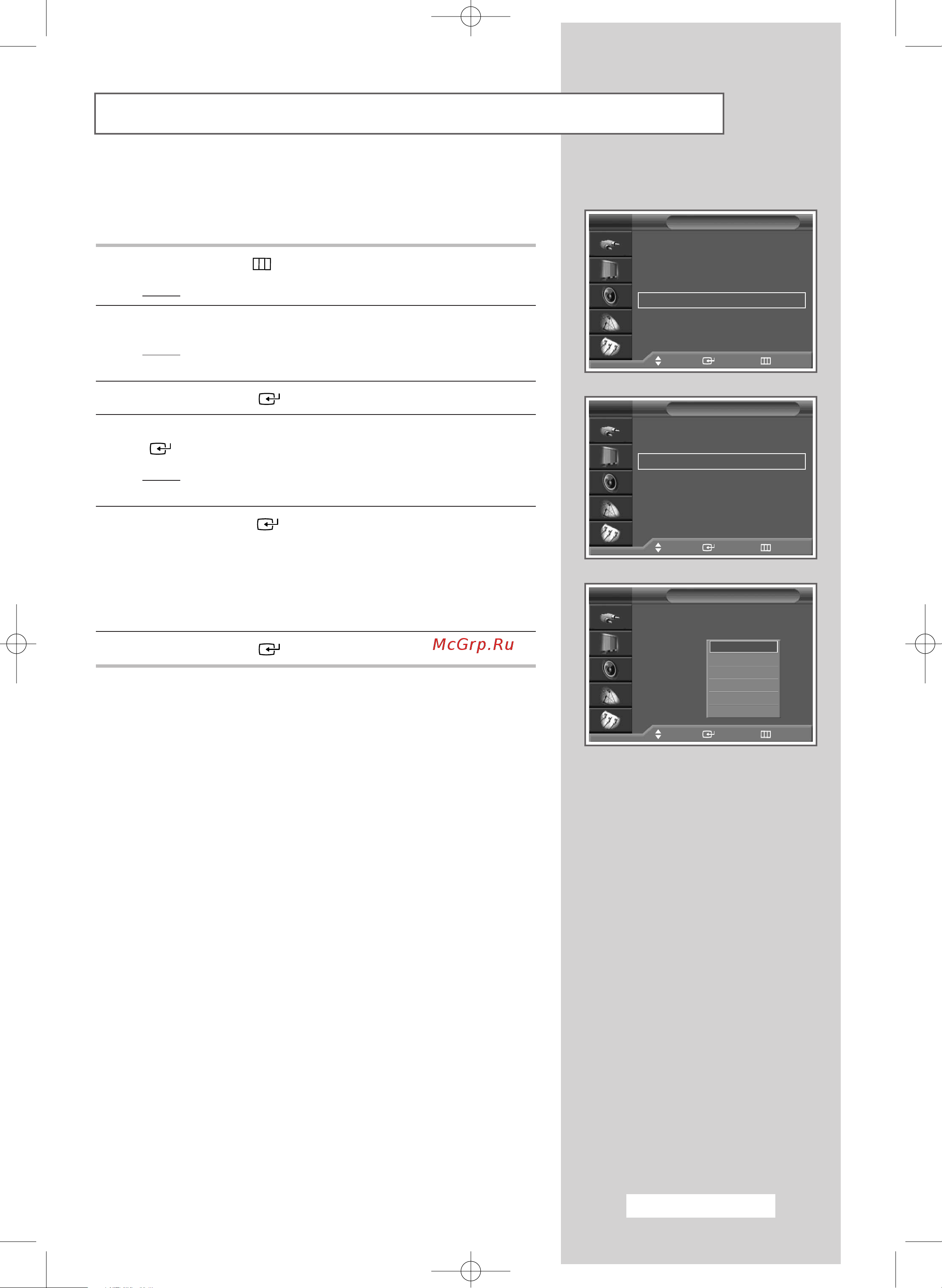

English - 53
Redirecting an Input to the External Output
Your television enables you to choose which audio/video signals
are output to the external connector.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the ▲ or ▼ button to select Setup.
Result
: The options available in the Setup group are
displayed.
3 Press the ENTER () button.
4 Press the ▲ or ▼ button to select AV Setup. Press the ENTER
() button.
Result
: The AV Setup menu is displayed with the Ext.3
selected.
5 Press the ENTER () button. Select the source to be directed to
the output of Ext.3 by pressing the ▲ or ▼ button.
➢
Ext.1 : Default (TV)
Ext.2 : Default (TV)
(The default value of the current mode will appear.)
Ext.3 : Variable (TV, Ext.1, Ext.2, Ext.3, AV, or S-Video)
6 Press the ENTER () button to confirm your choice.
Setup
Move Enter Return
Time
√
√
Plug & Play
√√
Language : English
√√
Blue Screen : Off
√√
AV Setup
√√
Colour Weakness : Off
√√
Melody : On
√√
PC
√
√
TV
AV Setup
Move Enter Return
Ext.1 : TV
√
√
Ext.2 : TV
√√
Ext.3 : TV
√
√
TV
AV Setup
Move Enter Return
Ext.1 : TV
Ext.2 : TV
Ext.3 : TV
TV
TV
Ext.1
Ext.2
Ext.3
AV
S-Video
BN68-00746A(GAIA2_Euro_ENG) 2004/08/23 03:56 PM Page 53
