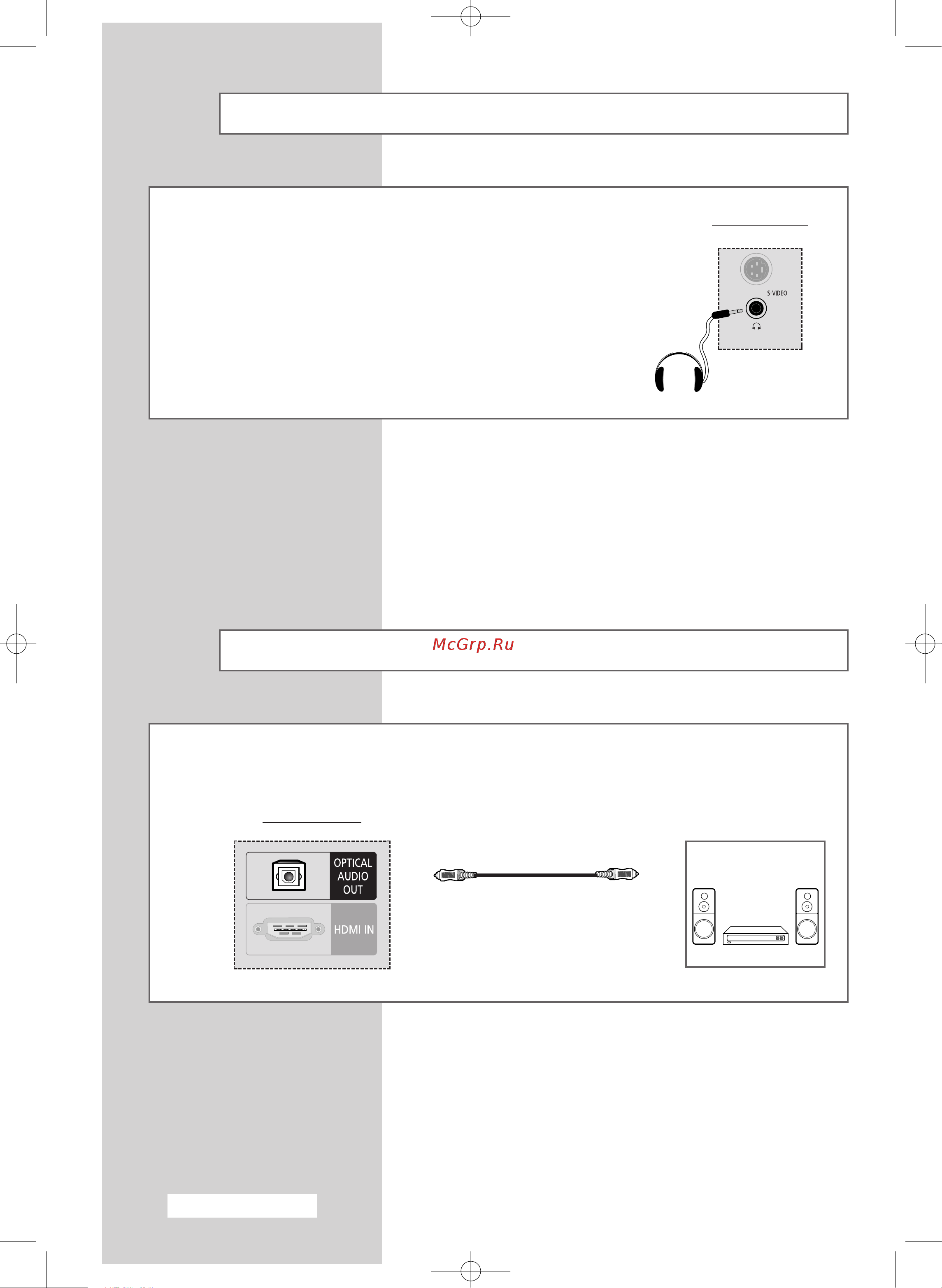

Samsung LW-46G15 W [60/72] Connecting headphones

English - 60

Connecting to the Digital Audio Input

The OPTICAL AUDIO OUT connector is used for equipment with digital in (to take digital sound).

But the optical out is available only when you use the HDMI digital in.

TV Rear View

Home Theater

Connecting Headphones

You can connect a set of headphones to your television if you wish to

watch a television programme without disturbing the other people in the

room.

➢ Prolonged use of headphones at a high volume may damage your

hearing.

TV Side View

BN68-00746A(GAIA2_Euro_ENG) 2004/08/23 03:56 PM Page 60
