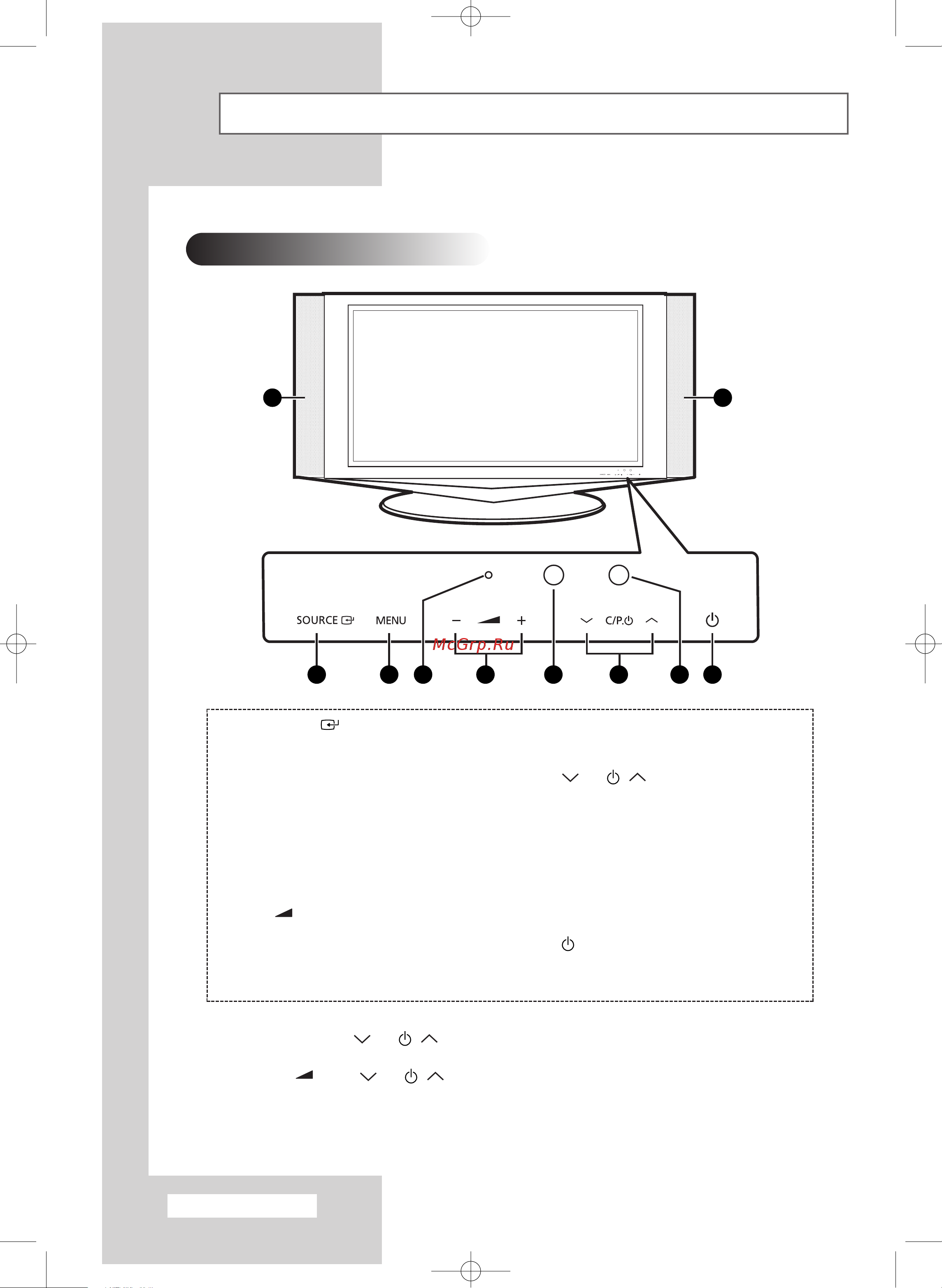

Samsung LW-46G15 W [6/72] Control panel
![Samsung LW-46G15 W [6/72] Control panel](/views2/1931824/page6/bg6.png)
English - 6
Control Panel
( 1 ) SOURCE
External input selection.
Confirm your choice(Store or Enter) on
the on-screen menu.
( 2 ) MENU
Press to open or exit from the on-screen
menu, or return to the previous menu.
( 3 ) Power IndicatorIndicator
Power off : Red
Power on : Off
Timer on : Green
( 4 )
-
+
Adjust the volume.
Also used to select or adjust items on the
on-screen menu.
( 5 ) Remote Control Sensor
Aim the remote control towards this spot
on the TV.
( 6 )
C/P.
Select channels.
Auto power on. Also used to move up or
down in the on-screen menu.
( 7 ) Light Detecting Sensor
Senses the ambient light and adjusts the
brightness automatically.
Checks the connection status of all input
sources or selects an item from the menu
screen.
( 8 ) (Power)
Press to turn the TV on and off.
( 9 ) Speakers
TV Front View
1
2 5 6 7 8
3 4
99
➢
◆ You can use the C/P. buttons to switch on the TV when it is in standby mode depending on
the model.
◆ The
-
+ and C/P. buttons have the same function as the ▲/▼/œ/√ buttons
on the remote control.
◆ If the remote control no longer works or your have misplaced it, you can use the controls on the panel
of the TV.
BN68-00746A(GAIA2_Euro_ENG) 2004/08/23 03:54 PM Page 6
