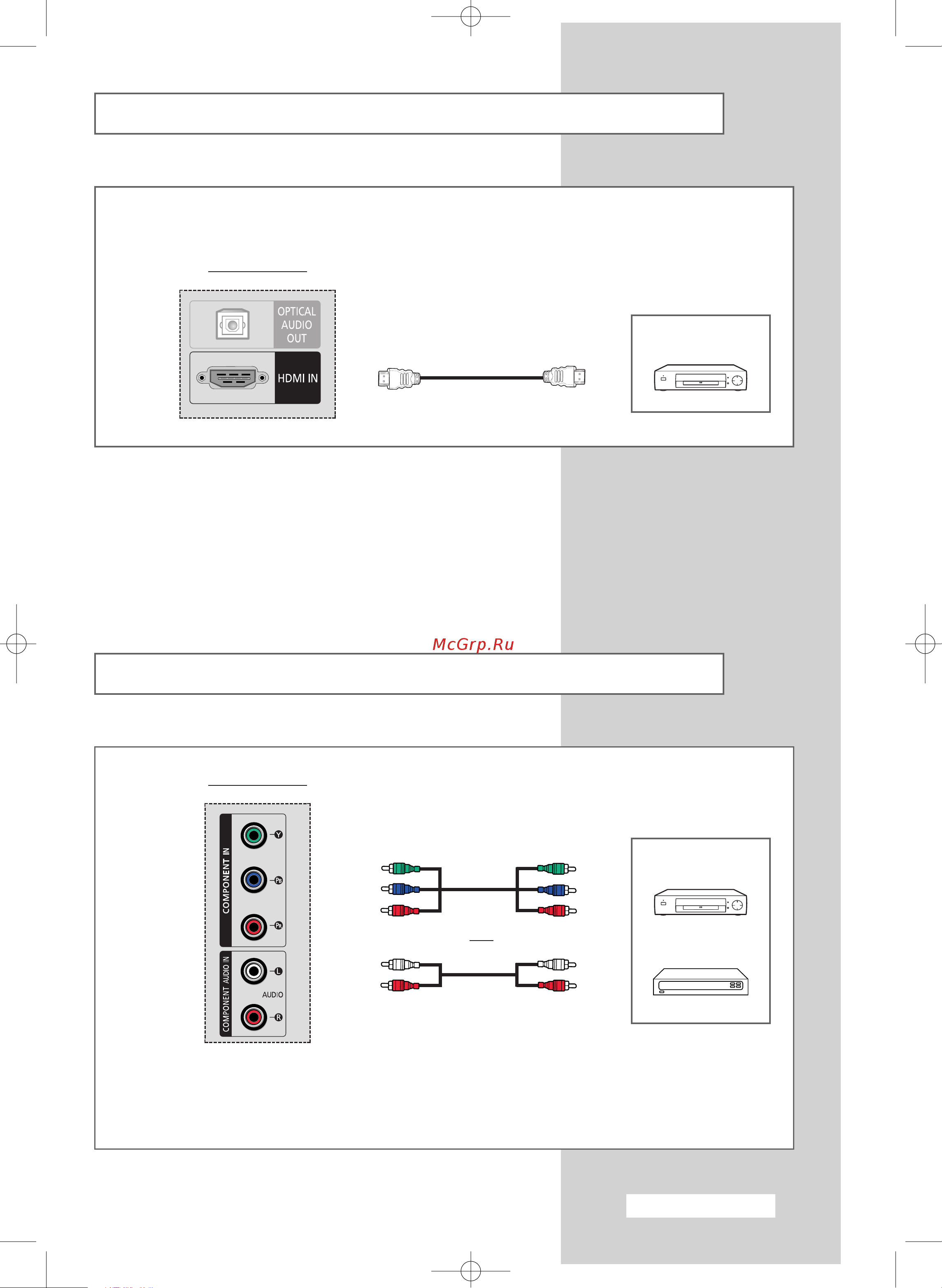

Samsung LW-46G15 W [61/72] Connecting to the component input

English - 61

Connecting to the HDMI Input

Connecting to the Component Input

➢ The COMPONENT IN and COMPONENT AUDIO IN connectors are used for equipment with a DVD or

DTV receiver out. (480i, 480p, 576i, 576p, 720p, 1080i, 1080p)

DVD

TV Rear View

DTV receiver

TV Rear View

DVD

The HDMI IN connector is used for equipment with a HDMI out.

and

BN68-00746A(GAIA2_Euro_ENG) 2004/08/23 03:56 PM Page 61
