Installation
Feed water pipe installation (Dispenser model only)
Height adjustment
Installation
▪Automatic ice maker operation needs water pressure of 147~834kPa
(1.5~8.5kgf/cm2) (The pressure is correct when an instant paper cup (180cc) is
filled in 3 sec.).
▪If water pressure does not reach the rating 147kPa(1.5kgf/cm
2
) or below, it
is necessary to purchase a separate pressure pump for normal automatic icing
and cool water feed.
▪Keep the total length of the feed water pipe tube within 8m and be careful that
the tube does not bend. If the tube is 8m or longer it may cause water feed
problems owing to the drain water pressure.▪Install the feed water pipe tube at
a place free from heat.
▪Connect to drinking water supply only.
▪Refer to instructions with water lter kit for installation.

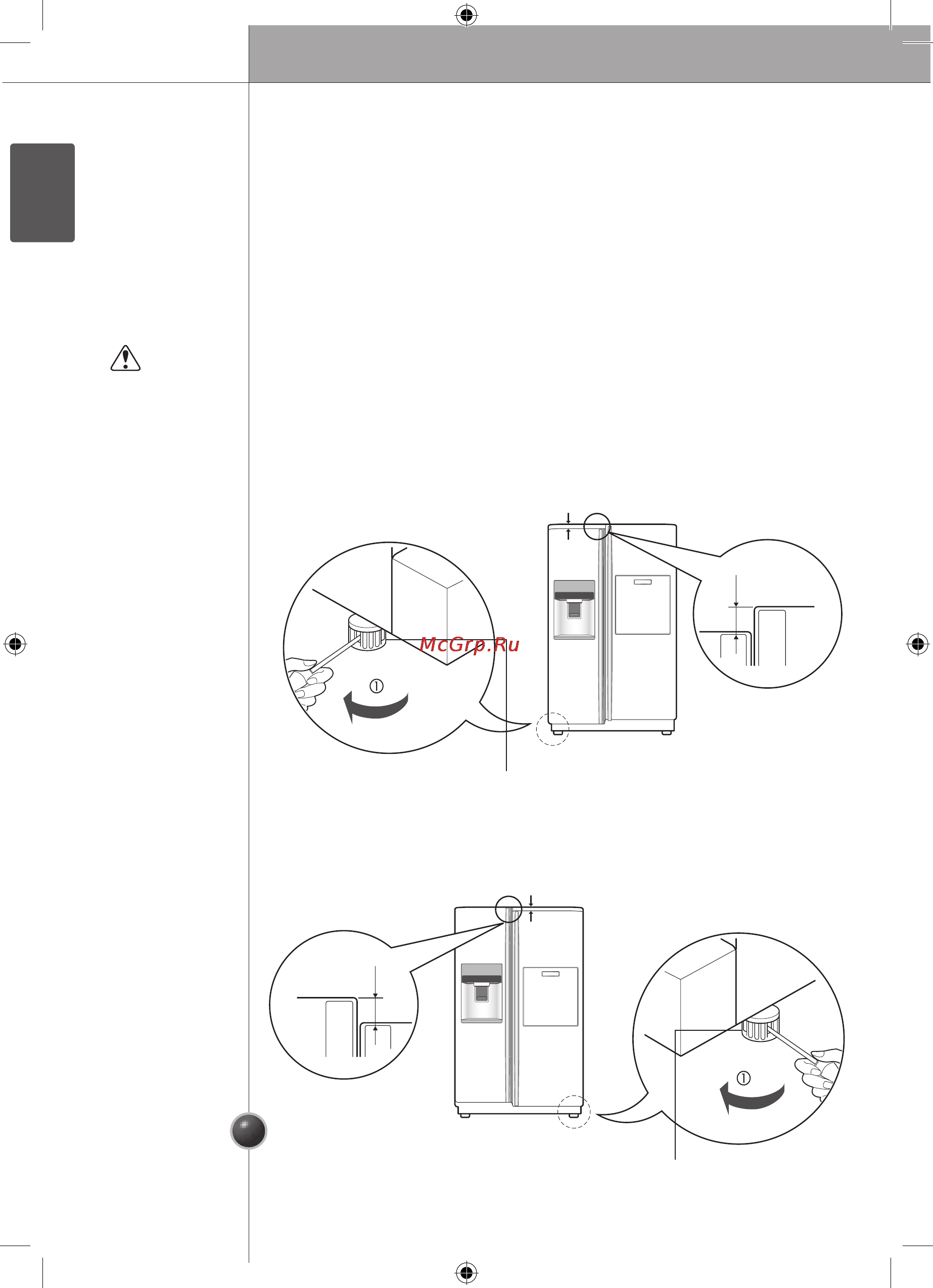

Level the door by inserting flat( - type) driver into the groove of the left height
adjusting screw and rotate it clockwise ( ).
Level the door by inserting flat( - type) driver into the groove of the left height
adjusting screw and rotate it clockwise ( ).
Before
installation
If the freezer
compartment
door is lower than
the refrigerator
compartment
door
If the freezer
compartment
door is higher than
the refrigerator
compartment
door
Height dierence
Height dierence
Height
dierence
Height
dierence
Left height
adjustment screw
Right height
adjustment screw
Warning
①
①
ENGLISH
