LG GW-P207FTQA [8/39] Installation

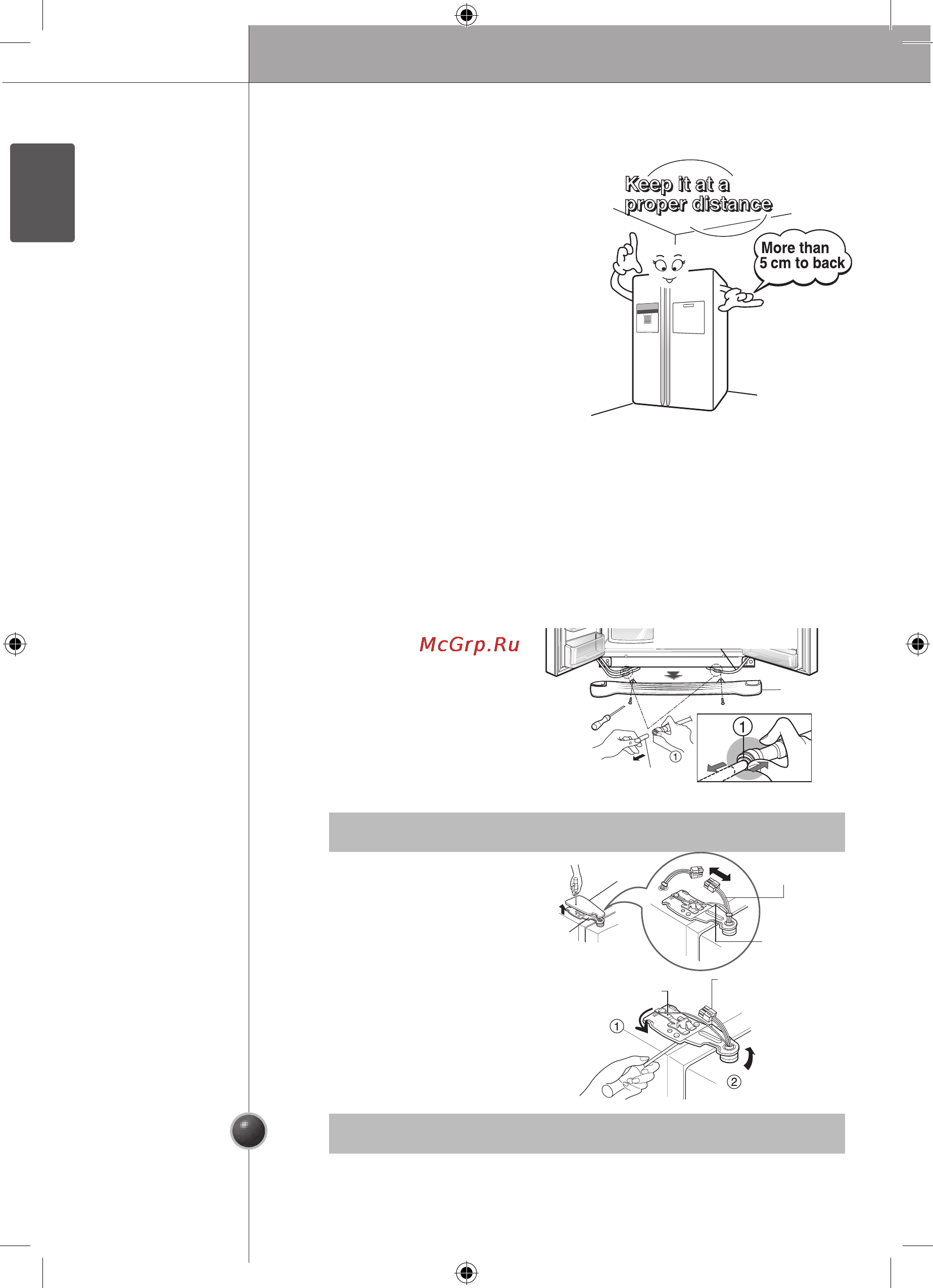

![LG GW-P207FTQA [8/39] Installation](/views2/1093494/page8/bg8.png)
88
Installation
Where to install
Door removal
Installation
1. Place your appliance where it is easy to use.
2. Avoid placing the unit near heat sources, di-
rect sunlight or moisture. Do not operate the
appliance outdoors where it can be exposed
directly, or indirectly to sun, wind and rain.
3. To ensure proper air circulation around the
fridge -freezer, please maintain sucient
space on both the sides as well as top and
maintain at least 2 inches (5 cm) from the
rear wall.
4. To avoid vibrations, the appliance must be
levelled.
5. Do not install the appliance in temperatures
of less than 5°C as the performance may be
aected.
Electric Shock Hazard
Disconnect electrical supply to refrigerator before installing. Failure to do so could
result in death or serious injury.
If your front door is too narrow to get
the refrigerator into the house,
remove the refrigerator doors and
pass the appliance through laterally.
Remove the lower cover by loosen-
ing all the screws. Then push in the
feed water tube while depressing the
connector , as shown in the illustration
on the righ
1) Remove the hinge cover by
loosening the screws. Then sepa-
rate all connection wires except
for the earth.
2) Remove the keeper by rotating it
counter clockwise ( ) and then
lifting the upper hinge up ( ).
This appliance contains uid (refrigerant, lubricant) and is made of parts and materi-
als which are reusable and/or recyclable.
All the packaging materials should be sent to the collection centre for recycling. For
details of your local recycling centre, please contact your local council.
Select a good
location
Disposal of the
old appliance
Remove lower
cover and then
feed water
tube
Remove the
freezer
compartment
door
Applicable to No Plumbing
Ice & Water Model only
Lower cover
Feed water tube
NOTE
• If a tube end is deformed or abraded, trim the end with sharp knife until perfectly round.
NOTE
• When removing the upper hinge, be careful that the door does not fall forwards .
①
②
Connection
wires
Earth line
Upper
hinge
Hinge
cover
Keeper
Upper hinge
