Aten CN9600 [162/183] Pin assignment for the cpu com rs 232 dte port is given in the table below

CN9000/CN9600/CN9950 User Manual

148

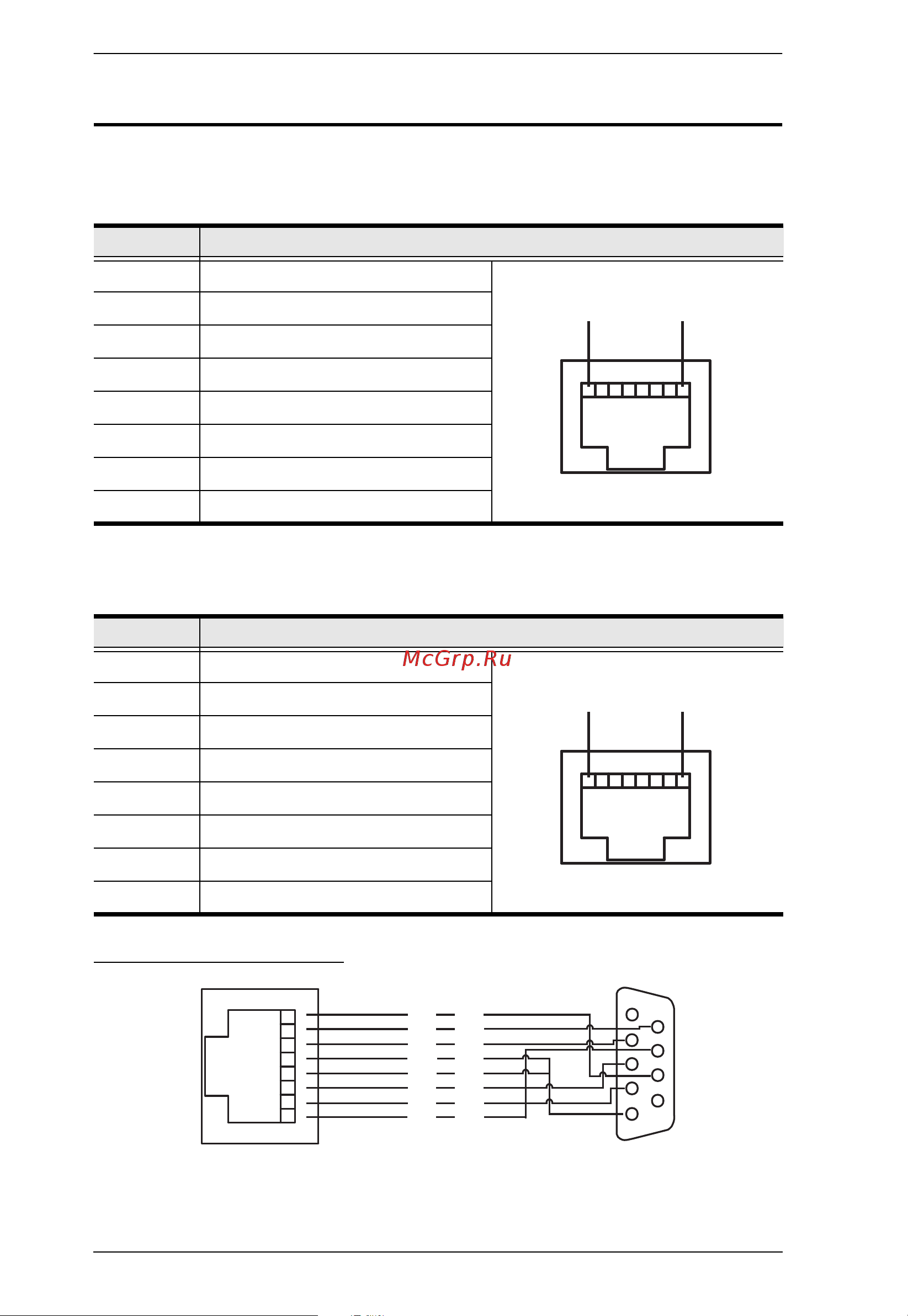

Serial Port Pin Assignment

Pin assignment for the CPU COM (RS-232 DTE) port is given in the table

below:

Pin assignment for the Local Console COM (RS-232 DCE) port is given in the

table below:

RJ-45 to DB-9 Cable Pinout

Pin Assignment

1 RTS

2 DTR

3 TXD

4 CTS

5 GND

6 RXD

7 DCD

8 DSR

Pin Assignment

1 CTS

2 N/A

3 RXD

4 GND

5 GND

6 TXD

7 N/A

8 RTS

RJ-45 Female

RJ-45

CTS

RTS

DSR

DTR

RXD

TXD

GND

TXD

RXD

DTR

DSR

RTS

CTS

DB-9
