VM6404HB User Manual
10

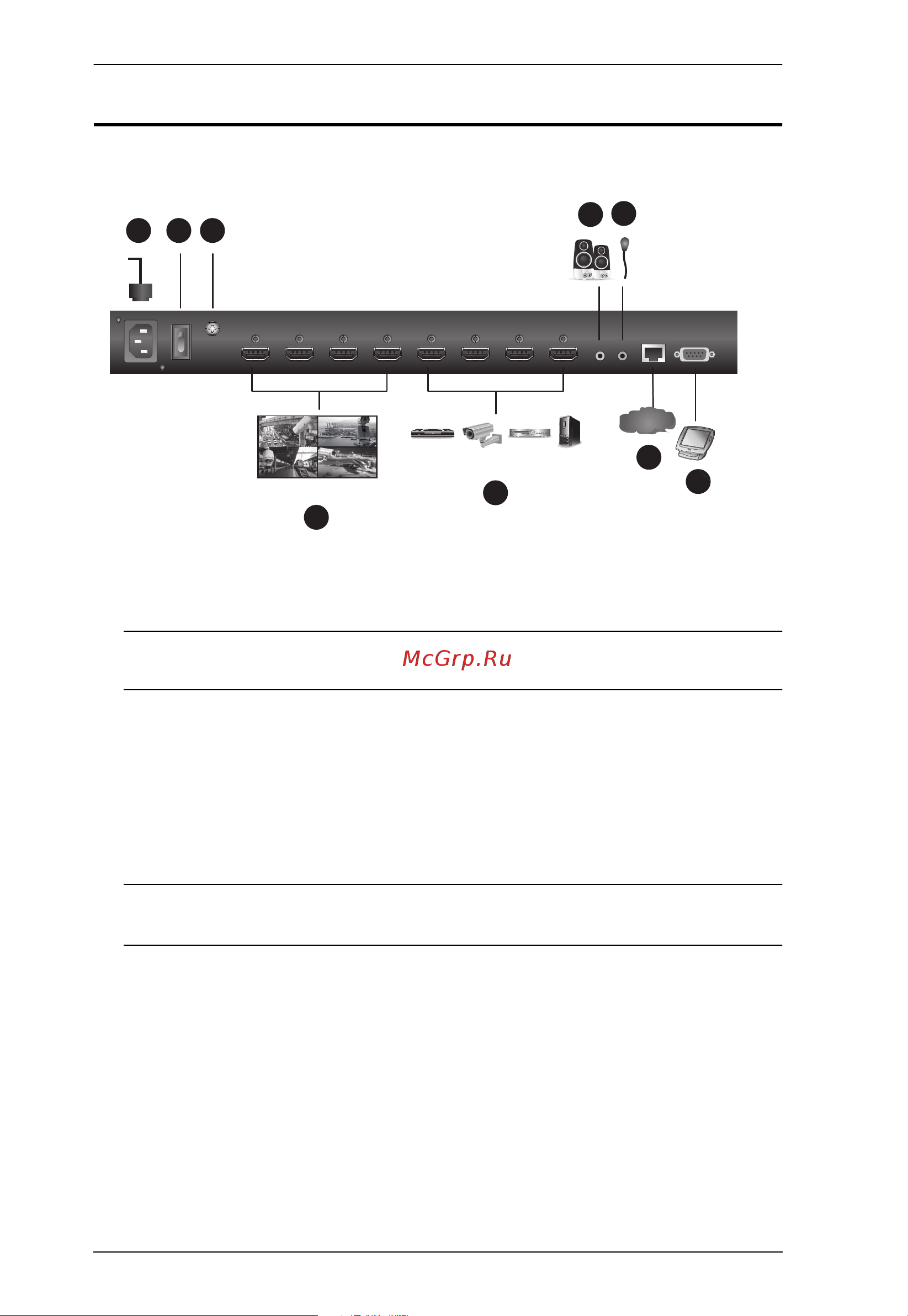

Cable Connection
Follow the steps below to safely connect the required devices to the
VM6404HB.
1. Use a grounding wire to ground the unit by connecting one end of the wire
to the grounding terminal, and the other end to a suitable grounded object.
Also make sure to properly ground all devices in the installation.
Note: Do not omit this step. Proper grounding helps prevent damage to the
unit from surges or static electricity.
2. Connect up to 4 HDMI-enabled video sources to the HDMI input ports.
3. Connect up to 4 HDMI-enabled display devices to the HDMI output
ports.
4. To access system settings via the web GUI or to remotely control the
VM6404HB using the Video Matrix Control App, use an Ethernet cable to
connect the Ethernet port of the unit to a network switch.
Note: For more information on the Video Matrix Control app, see Video
Matrix Control App User Manual.
5. (Optional) To extract HDMI audio, connect a speaker to the stereo audio
out port.
6. (Optional) To operate the VM6404HB using an IR remote control, connect
the supplied IR receiver to the IR receiver port.
7. (Optional) To configure the unit’s settings via an RS-232 interface,
connect a hardware or software controller to the RS-232 serial port.
8. Plug the power cord to the power socket.
9. Put the power switch to ON.
10. Power on all the connected devices.
4
2
3
8 9 1
6
5
Display Devices
Source Devices
Speaker IR Receiver
RS-232
Controller
Internet
LAN
7
