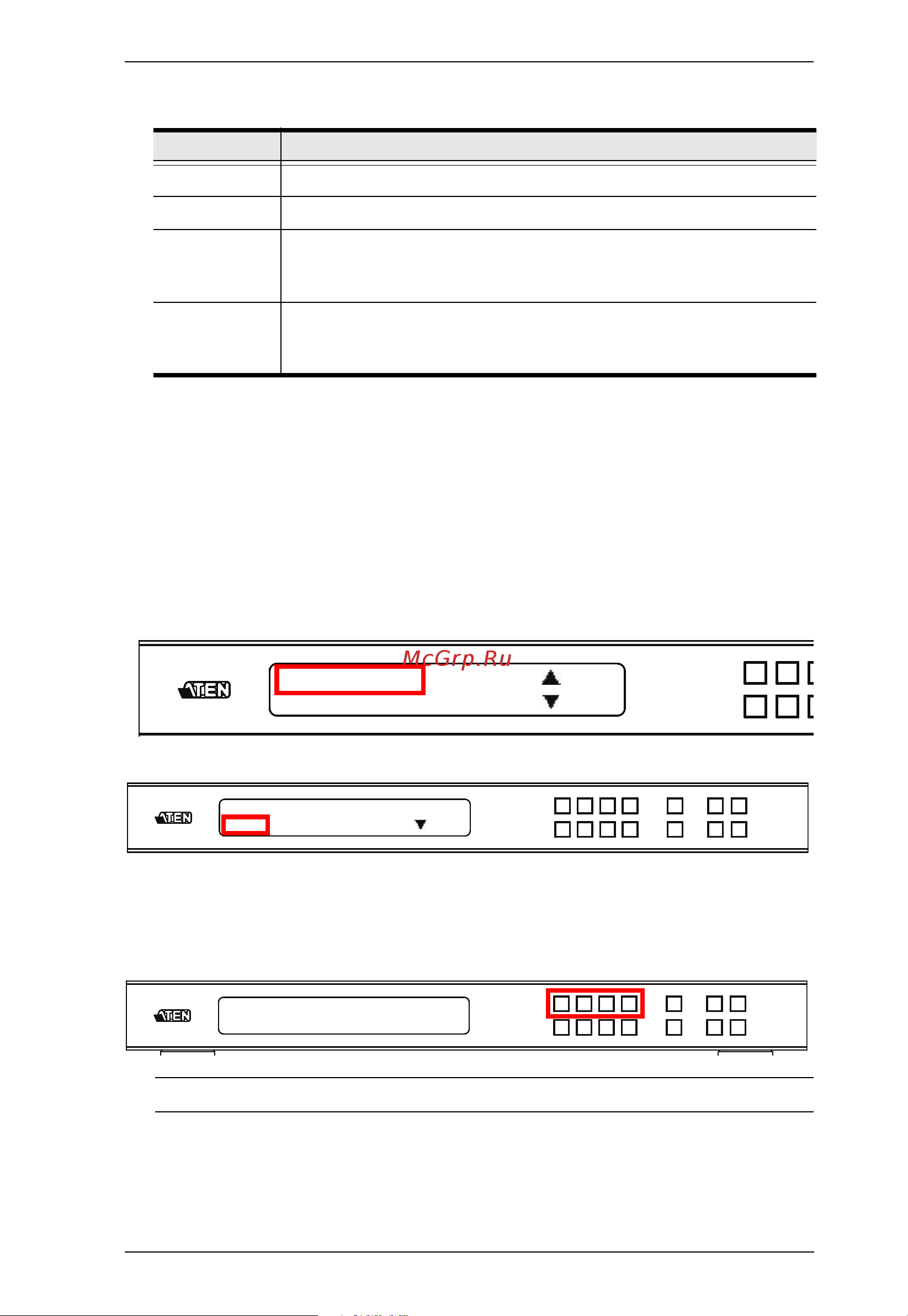

Chapter 3. Front Panel Configuration
19
EDID Mode options are:
4. Press Menu to return to the Menu page.
5. Press Cancel to go back a level, return to the initial screen, or exit.
CEC
To configure the CEC setting, do the following:
1. Press the Menu pushbutton, press Next, and then press Input
pushbutton 1.
2. From the Operation Mode page, press Input pushbutton 2:
3. Press Input pushbuttons (1-4) to enable (ON) or disable (NA) the CEC
feature for the output port. If the port does not support CEC, an NA is
shown.
Note: The default CEC setting is NA.
4. Press Menu to return to the Menu page.
5. Press Cancel to go back a level, return to the initial screen, or exit.
EDID Option Description
1: Default The default EDID is passed to all video sources.
2: Port 1 The EDID from port1 is passed to all video sources.
3: Remix Uses the EDID of each connected display according to its
connection when the VM6404HB is first powered on, or
immediately after pressing 3 to select the Remix option.
4: Customized This mode features an EDID Wizard that allows user-defined EDID
configurations for optimum output. See Customized EDID
Parameters, page 71.
1: Operation Mode
2: Security Mode
: Next
: Prev
1: EDID Mode
2: CEC
: Next
OUTPUT 1 2 3 4
NA ON ON NA
