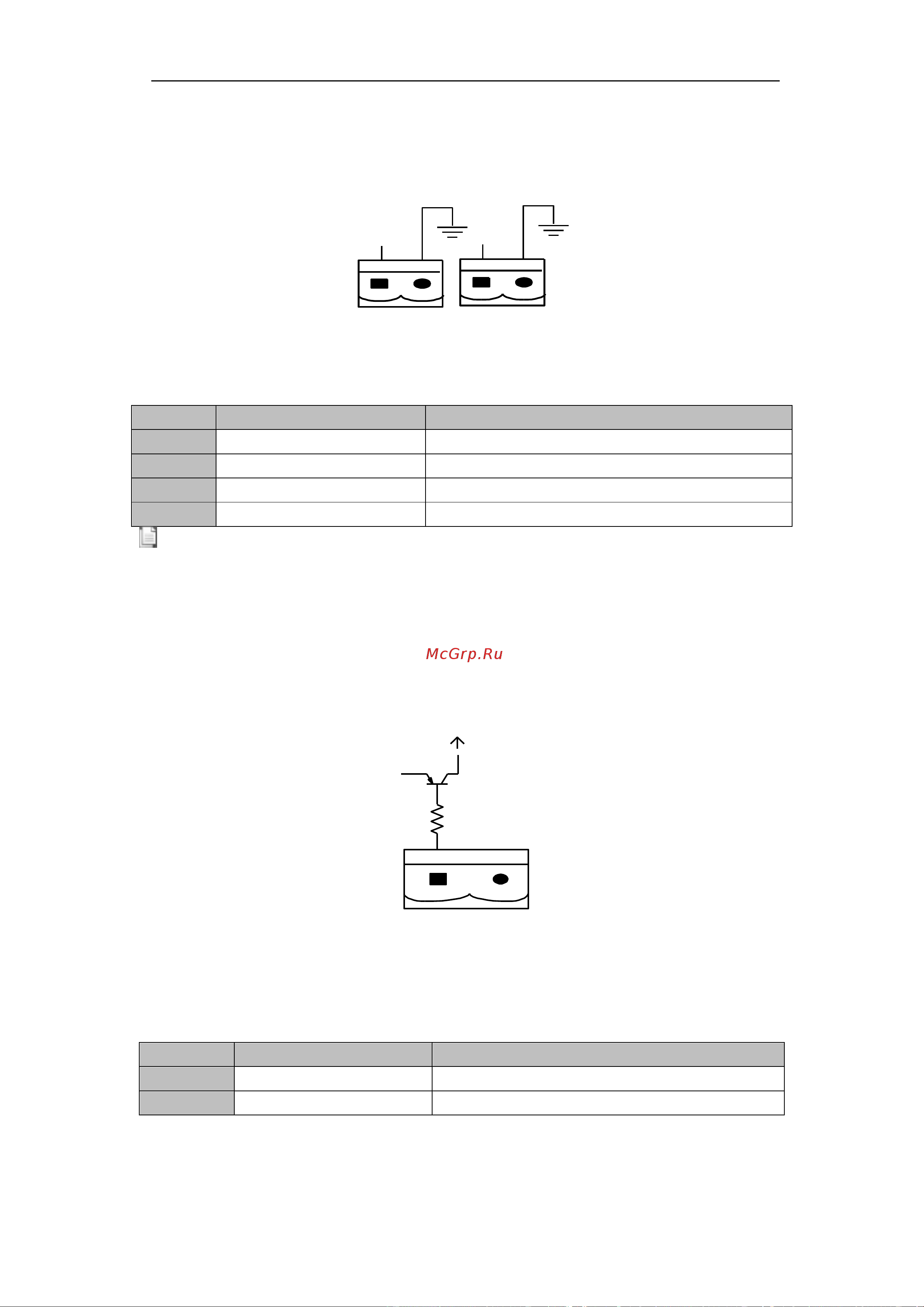

HR33 Rack Mounted UPS 25KVA User Manual 17
Installation Instruction
J2
J3
TEMP_BAT
TEMP_ENV
Fig.3-6 J2 and J3 for temperature detecting
Table 3.6Description of J2 and J3
Port
Name
Function
J2-1
TEMP_BAT
Detection of battery temperature
J2-2
TEMP_COM
common terminal
J3-1
TEMP_ENV
Detection of environmental temperature
J3-2
TEMP_COM
common terminal
Note
Specified temperature sensor is required for temperature detection (R25=5Kohm, B25/50=3275),
please confirm with the manufacturer, or contact the local maintenance engineers when placing an
order.
Remote EPO Input Port
J4 is the input port for remote EPO. It requires shorting NC and +24V during normal
operation, and the EPO is triggered when opening NC and +24V. The port diagram is
shown in Fig.3-7, and port description is shown in Table 3.7.
EPO_NC
+24V
+24V
Fig.3-7 Diagram of input port for remote EPO
Table 3.7 Description of input port for remote EPO
Port
Name
Function
J4-1
+24V_DRY
+24V
J4-2
REMOTE_EPO_NC
Trigger EPO when disconnect with J4-1
BCB Input Port
