HR33 Rack Mounted UPS 25KVA User Manual 27

Operations

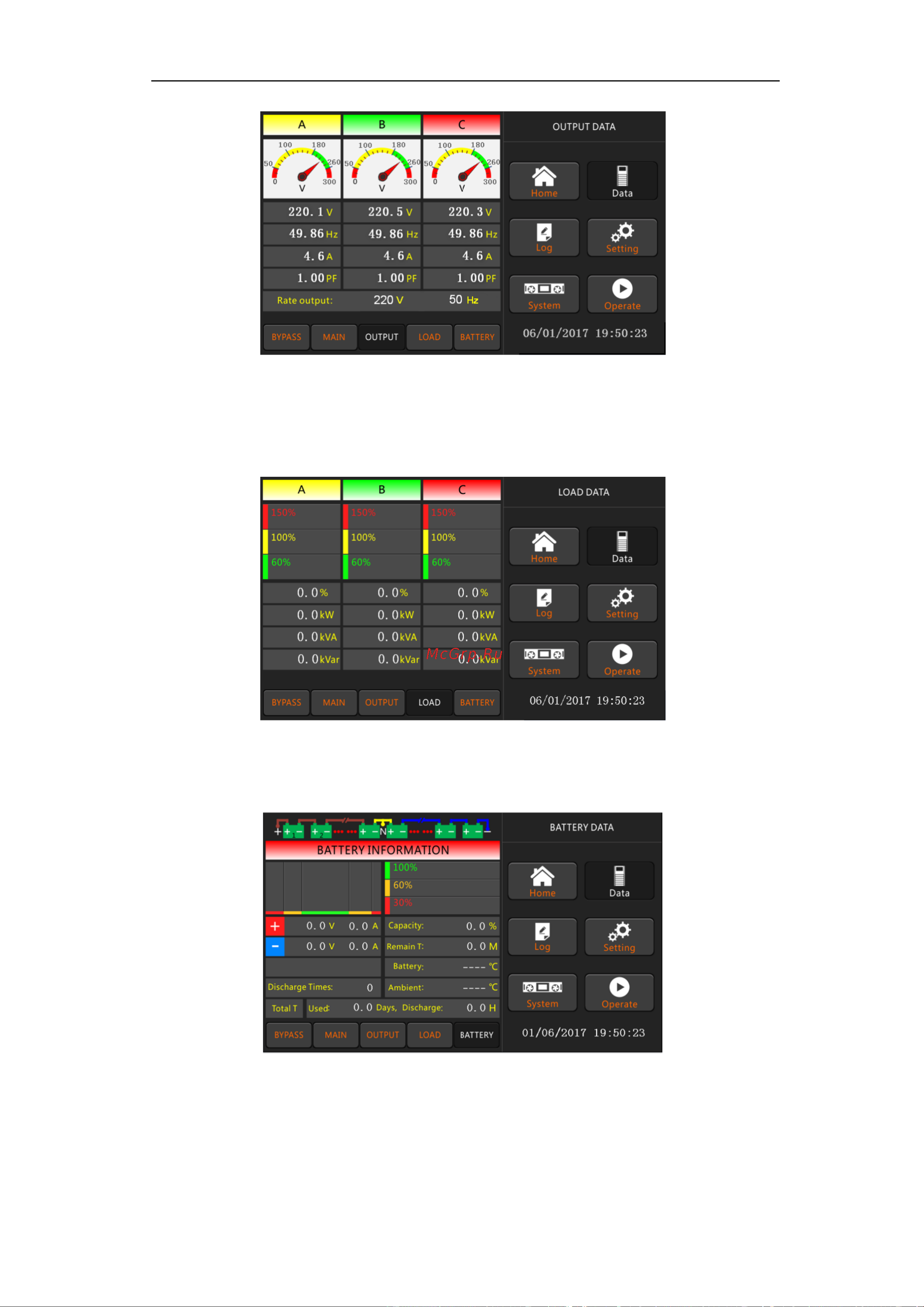

Figure 4-6 data display page (output data)

The output data page dispays the output voltage of each phase, the output

frequency, the output current, the output power factor, the rated output voltage and

the frequency.

Figure 4-7 Data display page (load data)

The load data page displays each phase output load percentage, the load power,

the load active power, and the load reactive power.

Figure 4-8 Data display page (battery data)

The battery data display page displays key parameters of battery, such as battery

voltage, battery current, battery capacity, etc.

4.4.2 Log

Touch the “Log” icon, and the system enters the interface of the Log, as it is shown in
