11

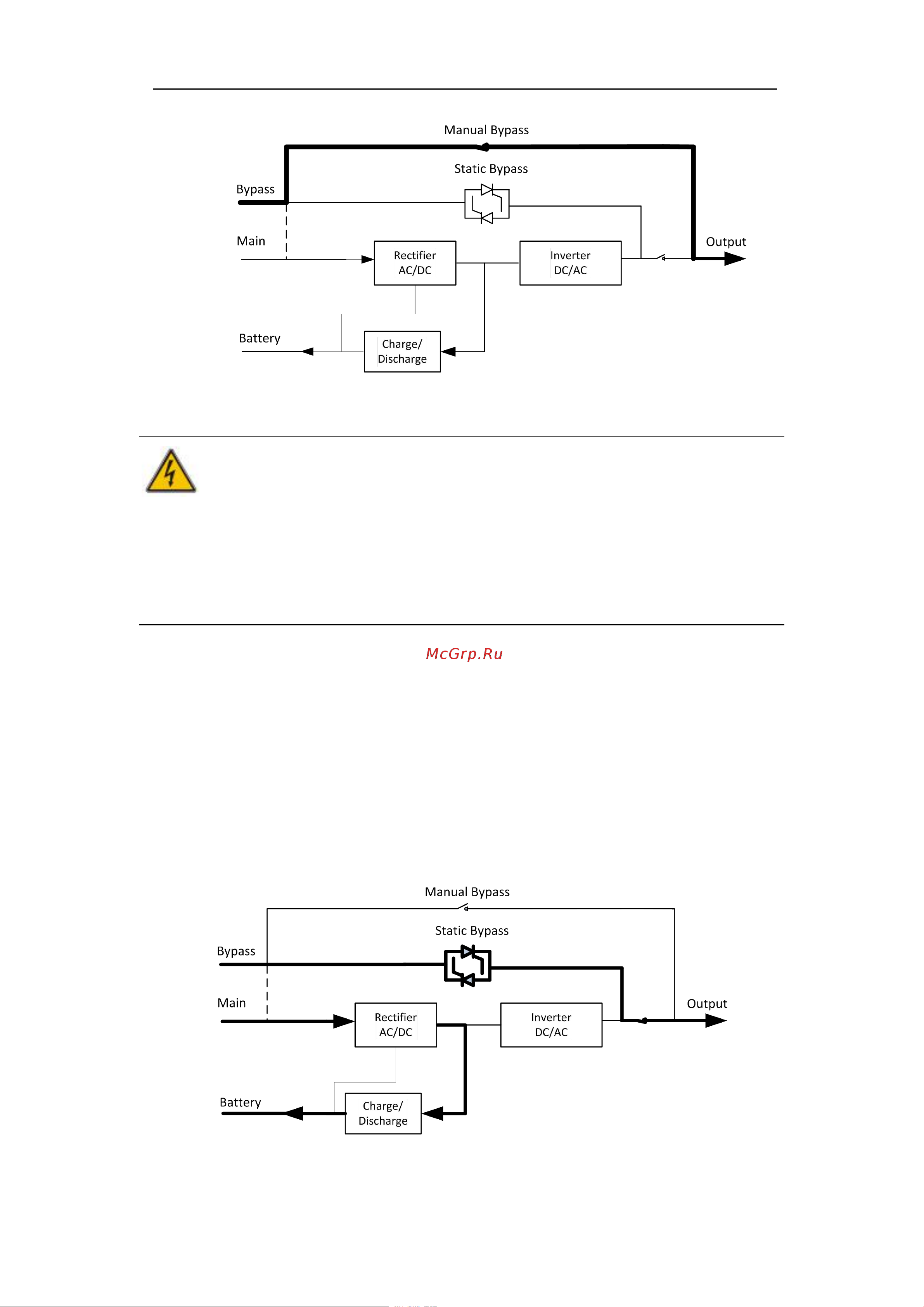

Figure 2- 6 UPS conceptual diagram in Maintenance Mode
Danger
During Maintenance mode, dangerous voltages are present on the terminal of input, output and neutral, even
with all the modules and the LCD turned off.
The UPS which without External maintenance switch in Maintenance Mode, dangerous voltages are present
on terminal and internal Copper bar.
2.4.5. ECO Mode
The economy control operation (ECO) mode is an energy-saving mode, In ECO mode,
when the bypass input voltage is within the ECO voltage range, the static bypass turns
on, and the bypass supplies power, and inverter is standby. When the bypass input
voltage is beyond the ECO voltage range, the UPS transfers from bypass mode to
normal mode. As 如 Figure 2- 7 shows。
Figure 2- 7 UPS conceptual diagram in ECO Mode
