50
replaced with new batteries. It must be activated via software.
91
Bypass CAN Fail
The CAN bus between bypass module and cabinet is abnormal.
92
Dust Filter Expired
Dust filter need to be clear or replaced with a new one
102
Wave Trigger
Waveform has been saved while UPS fail
103
Bypass CAN Fail
Bypass and cabinet communicate with each other via CAN bus. Check
If connector or signal cable is abnormal.
If monitoring board is abnormal.
105
Firmware Error
Manufacturer used only.
106
System Setting Error
Manufacturer used only.
107
Bypass Over Temp.
Bypass module is over temperature. Please check
If bypass load is overload
If ambient temperature is over 40°C
If bypass SCRs are assembled correctly
If bypass fans are normal
108
Module ID Duplicate
At least two modules are set as same ID on the power connector board, please
set the ID as correct sequence
Note
Different colors of the words represent different level of events:
(a)Green, an event occurs
(b)Grey, the event occurs then clears
(c)Yellow, warning occurs
(d) Red, faults happen.

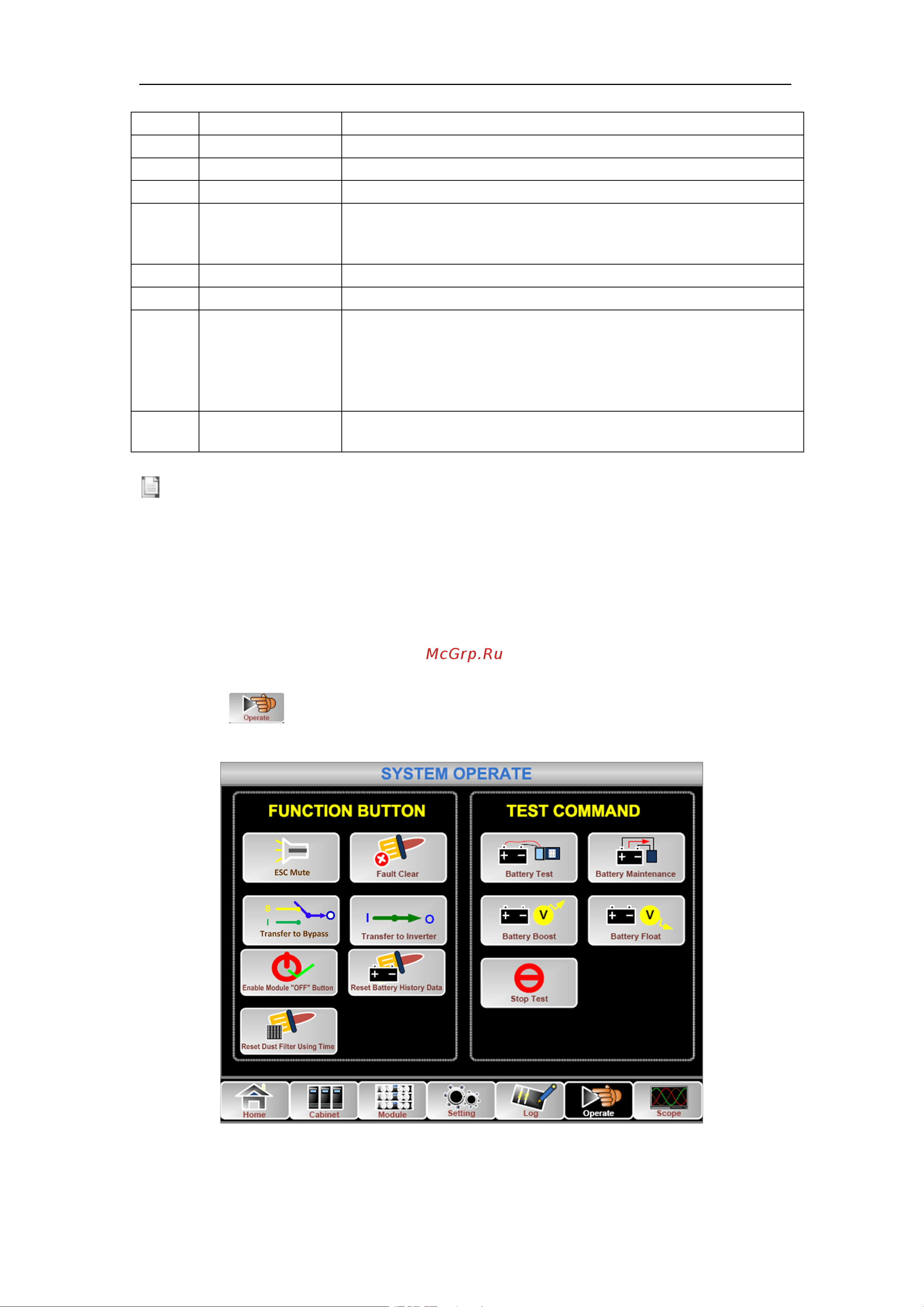

4.2.5 Operate
Touch the icon (At the bottom of the screen), and the system enters the page of the “Operate”, as it is
shown in Figure 4- 10.
Figure4- 10 Operate menu
