SNR UPS-ONRT-200-25CMX33 [21/69] Rack mounting

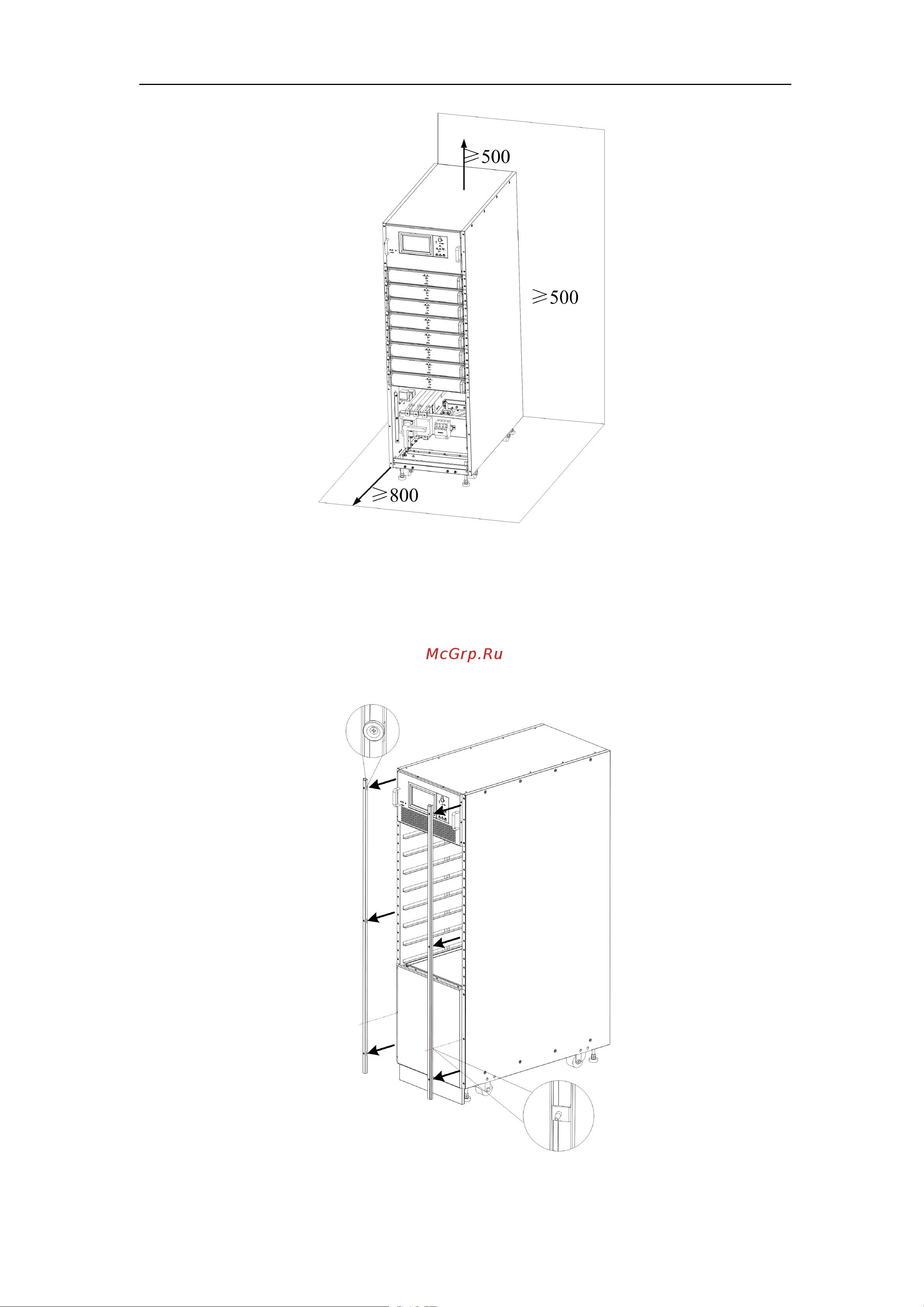

Figure 3- 5 Cabinet space reservation schematic (unit: mm)

3.4. Rack mounting

The UPS system supports rack mounting to meet the application requirements of the micro modular machine room。

The specific procedures for installing the UPS rack are as follows

：

1. Remove cabinet trim strip，asFigure 3- 6 shows；

Figure 3- 6 Remove cabinet trim strip
