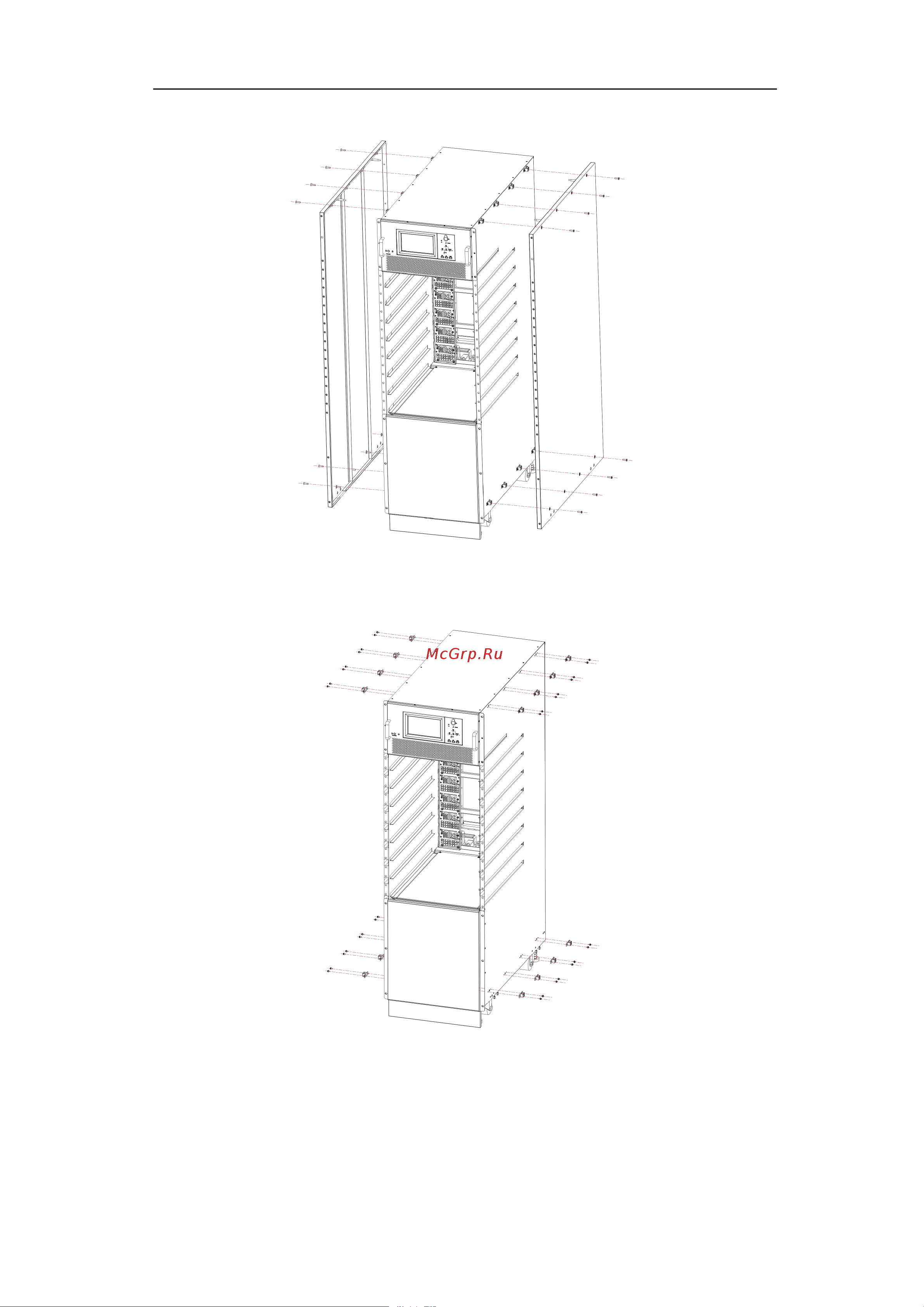

SNR UPS-ONRT-200-25CMX33 [22/69] Figure 3 7 remove the side door of the cabinet

2. Remove the side door of the cabinet

，

asFigure 3- 7 shows

；

Figure 3- 7 Remove the side door of the cabinet

3. Remove bracket for cabinet side door，asFigure 3- 8 shows；

Figure 3- 8 Remove bracket for cabinet side door
