Boss SY-1000 [5/22] Panel descriptions

Getting Ready

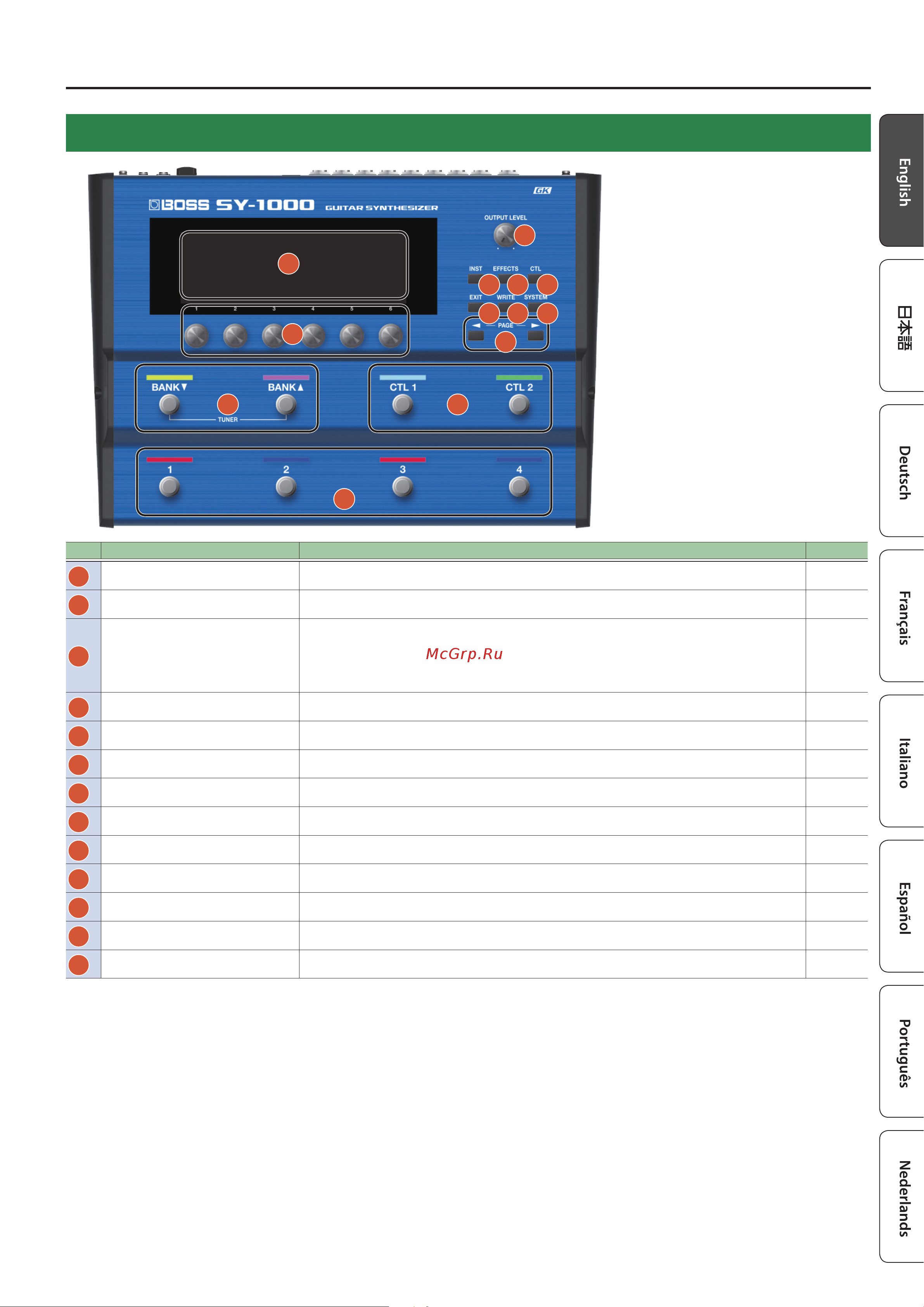

Panel Descriptions

4 5 6

7 8 9

11 12

No. Name Explanation Page

Display Various information regarding the SY-1000 is indicated here. p. 10

[1]–[6] knobs Use this to select or edit the value of the parameter that’s shown in the display. p. 11

[OUTPUT LEVEL] knob

This adjusts the volume level for the MAIN OUTPUT jack.

* Depending on how you switch the settings, you can also adjust the MAIN OUTPUT and

SUB OUTPUT volumes simultaneously.

[SYSTEM] button0HARDWARE SETTING0KNOB0OUTPUT LEVEL KNOB

–

[INST] button Species the sound of the INST (sound engine). p. 13

[EFFECTS] button Species the eect settings and the order in which eects are connected. p. 15

[CTL] button Accesses the CTL screen, where you can assign functions to the buttons and switches. p. 17

[EXIT] button Used to return previous screens and to undo operations. –

[WRITE] button Use for storing settings in patches and executing operations. p. 18

[SYSTEM] button Used for making settings related to the SY-1000’s operating p. 19

[K] [J] (PAGE) buttons

This switches the screens displayed in the display. p. 10

BANK [I], BANK [H] switches

Switch banks. p. 12

[CTL 1] [CTL 2] switches By default, the [CTL 1] and [CTL 2] pedals control a function that’s assigned by each patch. –

[1]–[4] switches Switch patches. –
