Universal DMX Control: This function allows you to use a univer-

sal DMX-512 controller to control the matrix lights, moonflower rota-

tion, strobing, and the visual ring colors. A DMX controller allows you

to create unique programs tailored to your individual needs.

1. The Boom Box FX3 has a 2 DMX channel modes; a 3 channel

mode and 52 channel mode. See pages 18-22 for detailed

description of the DMX values and traits.

2. To control your fixture in DMX mode, follow the set-up procedures

on pages 7-9 as well as the set-up specifications that are

included with your DMX controller.

3. Follow the instructions on page 13 to select your desired DMX

channel mode and set the DMX address.

4. For longer cable runs (more than a 100 feet) use a terminator on

the last fixture.

5. For help operating in DMX mode consult the manual included

with your DMX controller.

Sound Active Mode: This mode allows a single unit or several units

linked together, to run to the beat of the music.

1. Press the MENU button until “Soun” is displayed, and press

ENTER.

2. Press the UP or DOWN buttons to either activate sound active

mode or deactivate, and press ENTER. The unit will now run to

the beat of the music.

3. The sound sensitivity can be adjusted by pressing the MENU

button until “Sens” is displayed, and then press ENTER. Use the

UP or DOWN buttons to adjust the sound sensitivity, 0 being the

least sensitive, and 100 being the most sensitive.

Show Mode: This mode allows a single unit or several units linked

together, to run 1 of 9 built-in shows.

1. Press the MENU button until “Shnd” is displayed, and press

ENTER.

2. Press the UP or DOWN buttons to nd your desired show and

press ENTER. The unit will now run your chosen built-in program.

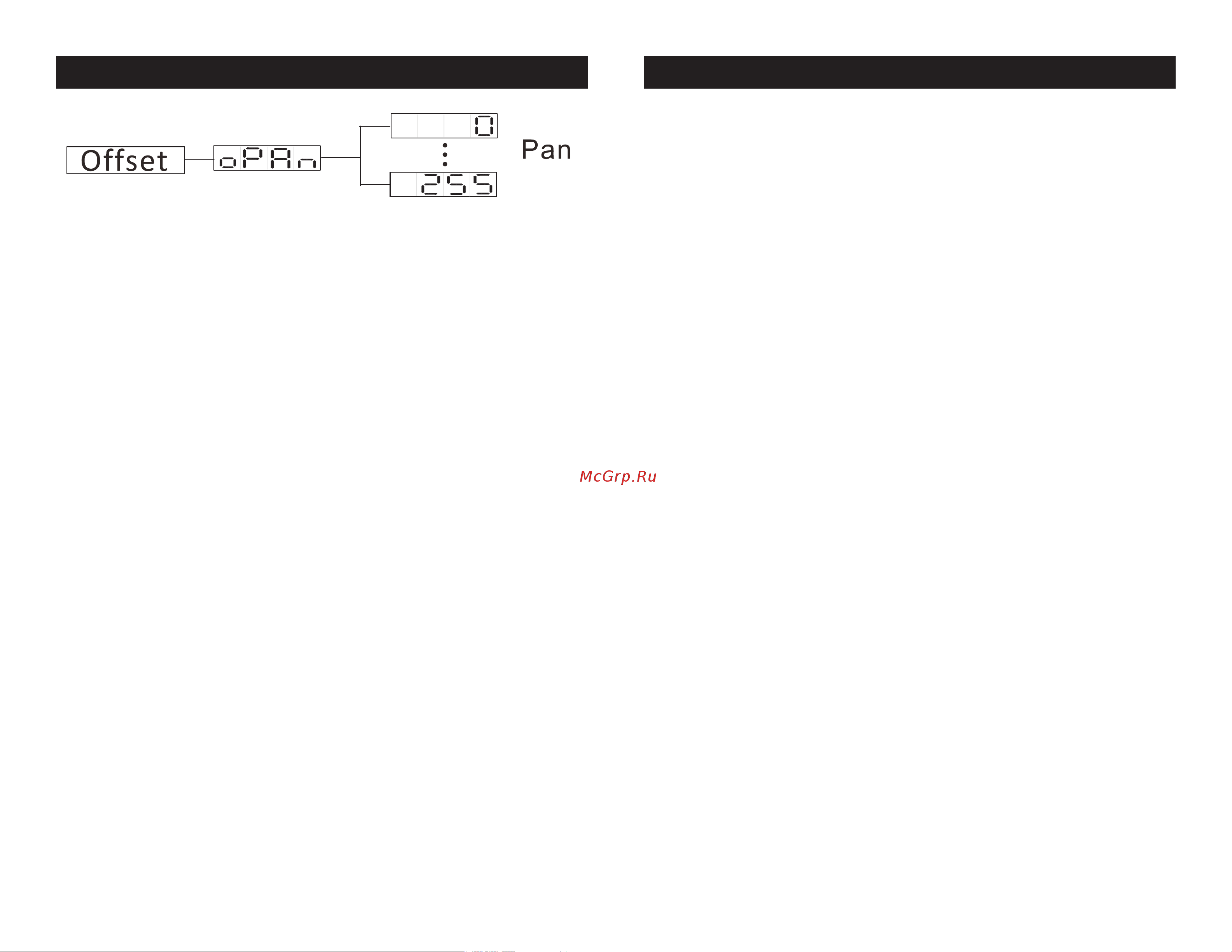

Boom Box FX3 Operation Boom Box FX3 Offset Menu

To enter the home position adjustment menu, press the ENTER

button for at least 5 seconds. In this submenu you are able to adjust

the original position of the beam and gobo motors and laser motors.

oPAn - Adjustment of the beam motor.

1. Press the ENTER button for at least 5 seconds, then press the UP

or DOWN buttons so that “oPAn” is displayed, press ENTER.

2. Use the UP and DOWN buttons to make your adjustments, and

then press ENTER to conrm. Press the MENU button for one second

to exit.
