A.D.J. Supply Europe B.V. – www.americandj.eu – Mystic LED Instruction Manual Page 10

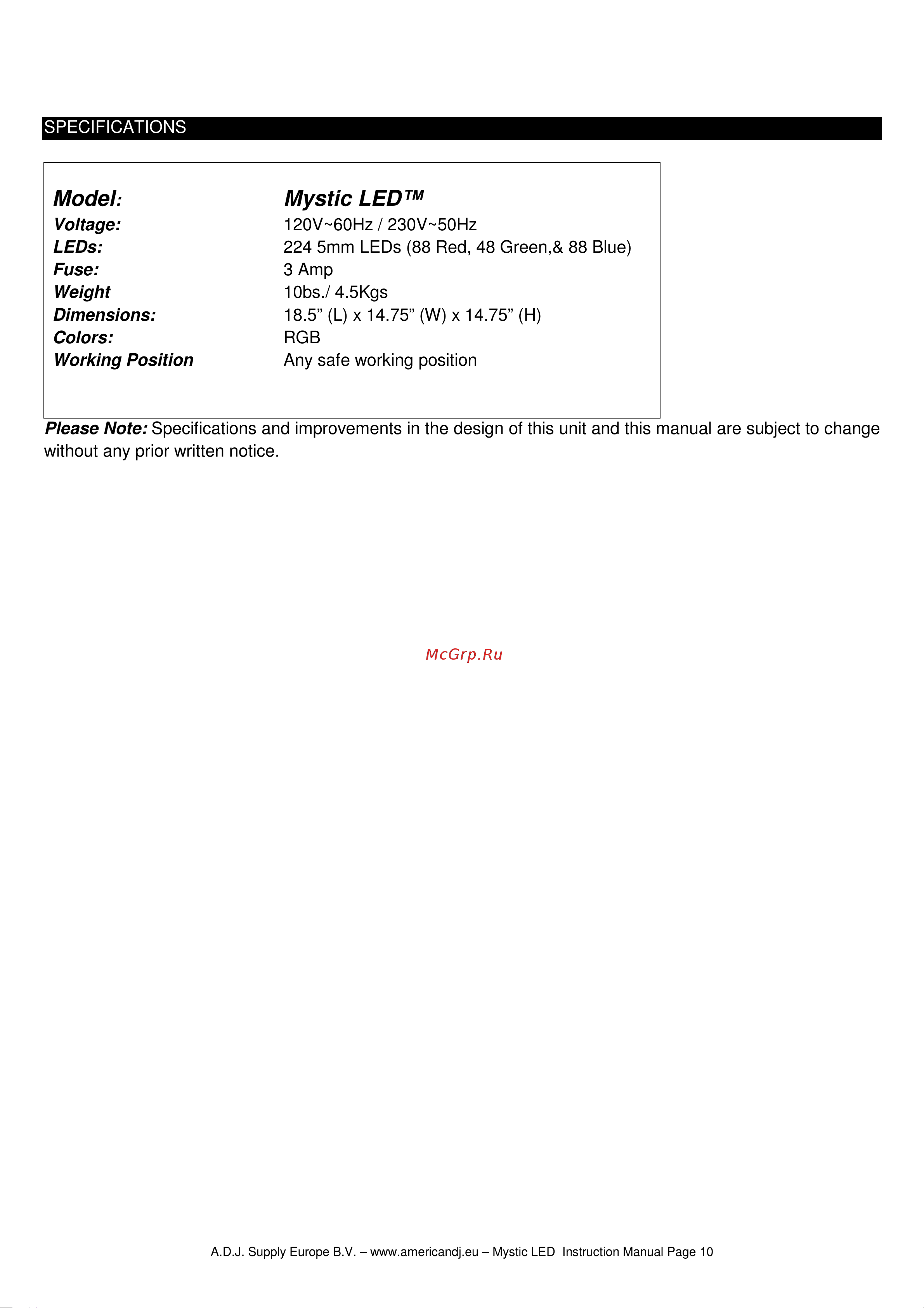

SPECIFICATIONS
Model
:
Voltage:
LEDs:
Fuse:
Weight
Dimensions:
Colors:
Working Position
Mystic LED™
120V~60Hz / 230V~50Hz
224 5mm LEDs (88 Red, 48 Green,& 88 Blue)
3 Amp
10bs./ 4.5Kgs
18.5” (L) x 14.75” (W) x 14.75” (H)
RGB
Any safe working position
Please Note: Specifications and improvements in the design of this unit and this manual are subject to change
without any prior written notice.
