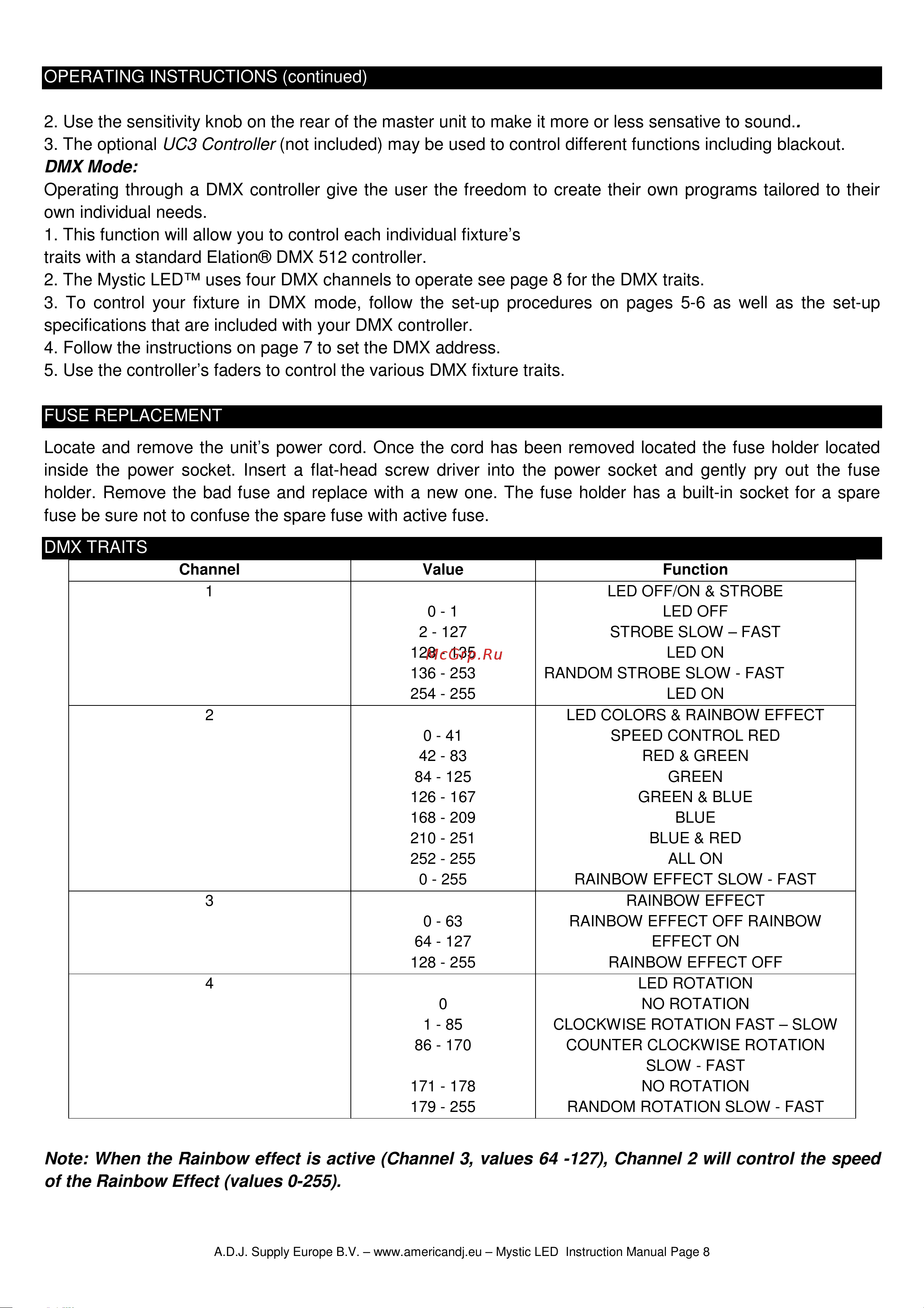

A.D.J. Supply Europe B.V. – www.americandj.eu – Mystic LED Instruction Manual Page 8
OPERATING INSTRUCTIONS (continued)
2. Use the sensitivity knob on the rear of the master unit to make it more or less sensative to sound..
3. The optional UC3 Controller (not included) may be used to control different functions including blackout.
DMX Mode:
Operating through a DMX controller give the user the freedom to create their own programs tailored to their
own individual needs.
1. This function will allow you to control each individual fixture’s
traits with a standard Elation® DMX 512 controller.
2. The Mystic LED™ uses four DMX channels to operate see page 8 for the DMX traits.
3. To control your fixture in DMX mode, follow the set-up procedures on pages 5-6 as well as the set-up
specifications that are included with your DMX controller.
4. Follow the instructions on page 7 to set the DMX address.
5. Use the controller’s faders to control the various DMX fixture traits.
FUSE REPLACEMENT
Locate and remove the unit’s power cord. Once the cord has been removed located the fuse holder located
inside the power socket. Insert a flat-head screw driver into the power socket and gently pry out the fuse
holder. Remove the bad fuse and replace with a new one. The fuse holder has a built-in socket for a spare
fuse be sure not to confuse the spare fuse with active fuse.
DMX TRAITS
Channel Value Function
1
0 - 1
2 - 127
128 - 135
136 - 253
254 - 255
LED OFF/ON & STROBE
LED OFF
STROBE SLOW – FAST
LED ON
RANDOM STROBE SLOW - FAST
LED ON
2
0 - 41
42 - 83
84 - 125
126 - 167
168 - 209
210 - 251
252 - 255
0 - 255
LED COLORS & RAINBOW EFFECT
SPEED CONTROL RED
RED & GREEN
GREEN
GREEN & BLUE
BLUE
BLUE & RED
ALL ON
RAINBOW EFFECT SLOW - FAST
3
0 - 63
64 - 127
128 - 255
RAINBOW EFFECT
RAINBOW EFFECT OFF RAINBOW
EFFECT ON
RAINBOW EFFECT OFF
4
0
1 - 85
86 - 170
171 - 178
179 - 255
LED ROTATION
NO ROTATION
CLOCKWISE ROTATION FAST – SLOW
COUNTER CLOCKWISE ROTATION
SLOW - FAST
NO ROTATION
RANDOM ROTATION SLOW - FAST
Note: When the Rainbow effect is active (Channel 3, values 64 -127), Channel 2 will control the speed
of the Rainbow Effect (values 0-255).
