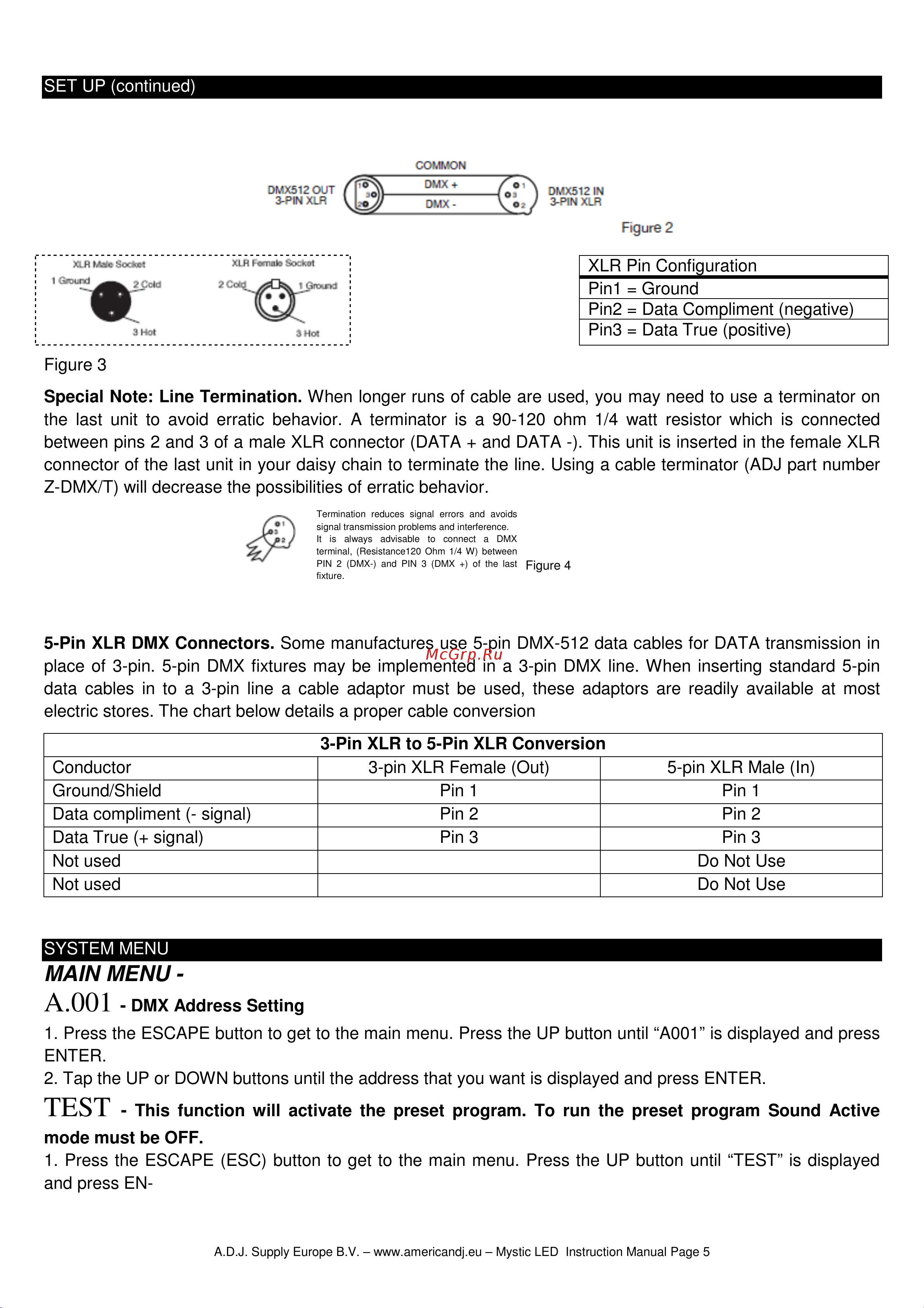

A.D.J. Supply Europe B.V. – www.americandj.eu – Mystic LED Instruction Manual Page 5
SET UP (continued)
XLR Pin Configuration
Pin1 = Ground
Pin2 = Data Compliment (negative)
Pin3 = Data True (positive)
Figure 3
Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on
the last unit to avoid erratic behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is connected
between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR
connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number
Z-DMX/T) will decrease the possibilities of erratic behavior.
Termination reduces signal errors and avoids
signal transmission problems and interference.
It is always advisable to connect a DMX
terminal, (Resistance120 Ohm 1/4 W) between
PIN 2 (DMX-
) and PIN 3 (DMX +) of the last
fixture.
Figure 4
5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-512 data cables for DATA transmission in
place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin
data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily available at most
electric stores. The chart below details a proper cable conversion
3
-
Pin XLR to 5
-
Pin XLR Conversion
Conductor 3-pin XLR Female (Out) 5-pin XLR Male (In)
Ground/Shield Pin 1 Pin 1
Data compliment (- signal) Pin 2 Pin 2
Data True (+ signal) Pin 3 Pin 3
Not used Do Not Use
Not used Do Not Use
SYSTEM MENU
MAIN MENU -
A.001 -
DMX Address Setting
1. Press the ESCAPE button to get to the main menu. Press the UP button until “A001” is displayed and press
ENTER.
2. Tap the UP or DOWN buttons until the address that you want is displayed and press ENTER.
TEST -
This function will activate the preset program. To run the preset program Sound Active
mode must be OFF.
1. Press the ESCAPE (ESC) button to get to the main menu. Press the UP button until “TEST” is displayed
and press EN-
