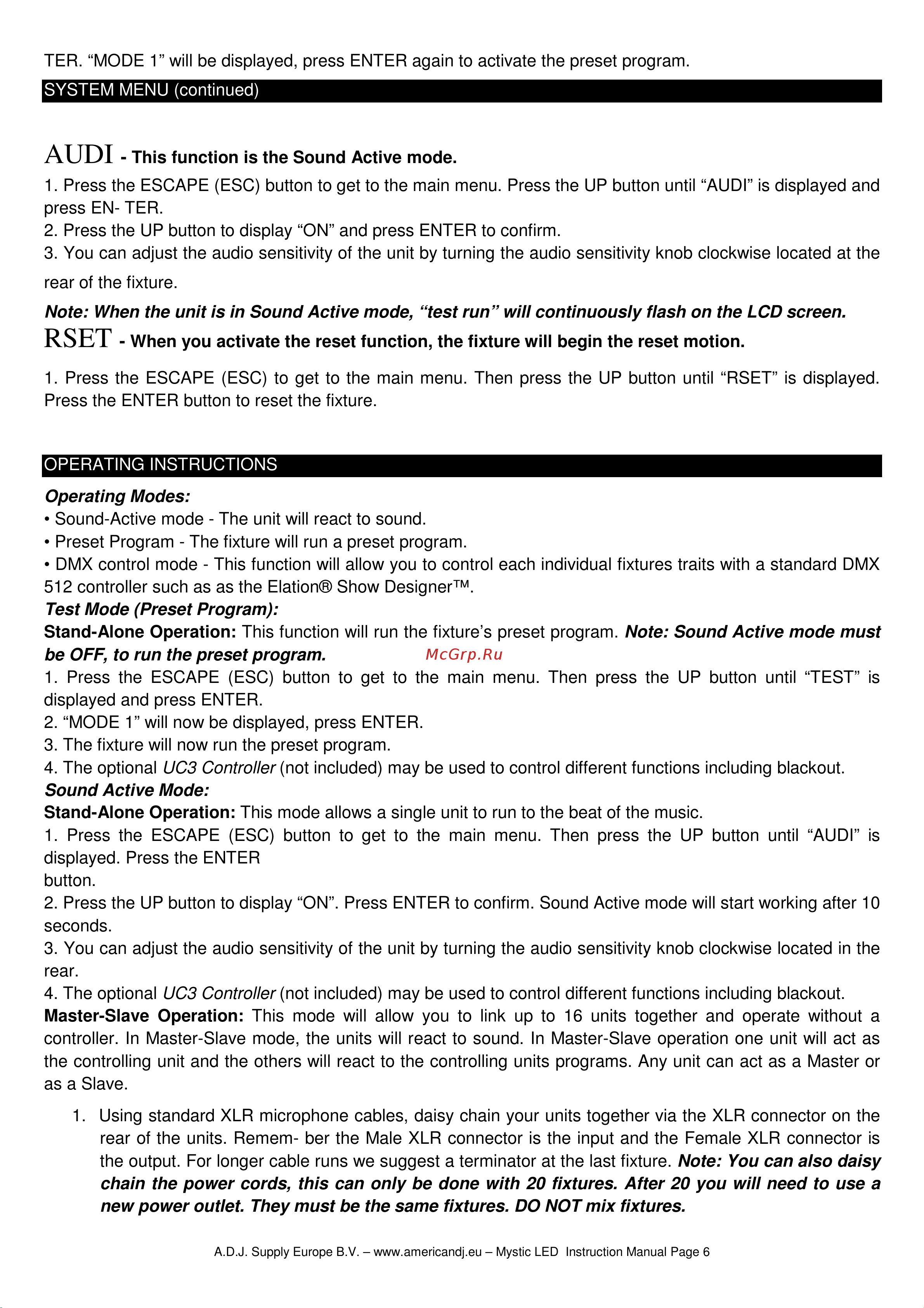

A.D.J. Supply Europe B.V. – www.americandj.eu – Mystic LED Instruction Manual Page 6
TER. “MODE 1” will be displayed, press ENTER again to activate the preset program
.
SYSTEM MENU (continued)
AUDI -
This function is the Sound Active mode.
1. Press the ESCAPE (ESC) button to get to the main menu. Press the UP button until “AUDI” is displayed and
press EN- TER.
2. Press the UP button to display “ON” and press ENTER to confirm.
3. You can adjust the audio sensitivity of the unit by turning the audio sensitivity knob clockwise located at the
rear of the fixture
.
Note: When the unit is in Sound Active mode, “test run” will continuously flash on the LCD screen
.
RSET -
When you activate the reset function, the fixture will begin the reset motion.
1. Press the ESCAPE (ESC) to get to the main menu. Then press the UP button until “RSET” is displayed.
Press the ENTER button to reset the fixture.
OPERATING INSTRUCTIONS
Operating Modes:
• Sound-Active mode - The unit will react to sound.
• Preset Program - The fixture will run a preset program.
• DMX control mode - This function will allow you to control each individual fixtures traits with a standard DMX
512 controller such as as the Elation® Show Designer™.
Test Mode (Preset Program):
Stand-Alone Operation: This function will run the fixture’s preset program. Note: Sound Active mode must
be OFF, to run the preset program.
1. Press the ESCAPE (ESC) button to get to the main menu. Then press the UP button until “TEST” is
displayed and press ENTER.
2. “MODE 1” will now be displayed, press ENTER.
3. The fixture will now run the preset program.
4. The optional UC3 Controller (not included) may be used to control different functions including blackout.
Sound Active Mode:
Stand-Alone Operation: This mode allows a single unit to run to the beat of the music.
1. Press the ESCAPE (ESC) button to get to the main menu. Then press the UP button until “AUDI” is
displayed. Press the ENTER
button.
2. Press the UP button to display “ON”. Press ENTER to confirm. Sound Active mode will start working after 10
seconds.
3. You can adjust the audio sensitivity of the unit by turning the audio sensitivity knob clockwise located in the
rear.
4. The optional UC3 Controller (not included) may be used to control different functions including blackout.
Master-Slave Operation: This mode will allow you to link up to 16 units together and operate without a
controller. In Master-Slave mode, the units will react to sound. In Master-Slave operation one unit will act as
the controlling unit and the others will react to the controlling units programs. Any unit can act as a Master or
as a Slave.
1. Using standard XLR microphone cables, daisy chain your units together via the XLR connector on the
rear of the units. Remem- ber the Male XLR connector is the input and the Female XLR connector is
the output. For longer cable runs we suggest a terminator at the last fixture. Note: You can also daisy
chain the power cords, this can only be done with 20 fixtures. After 20 you will need to use a
new power outlet. They must be the same fixtures. DO NOT mix fixtures.
