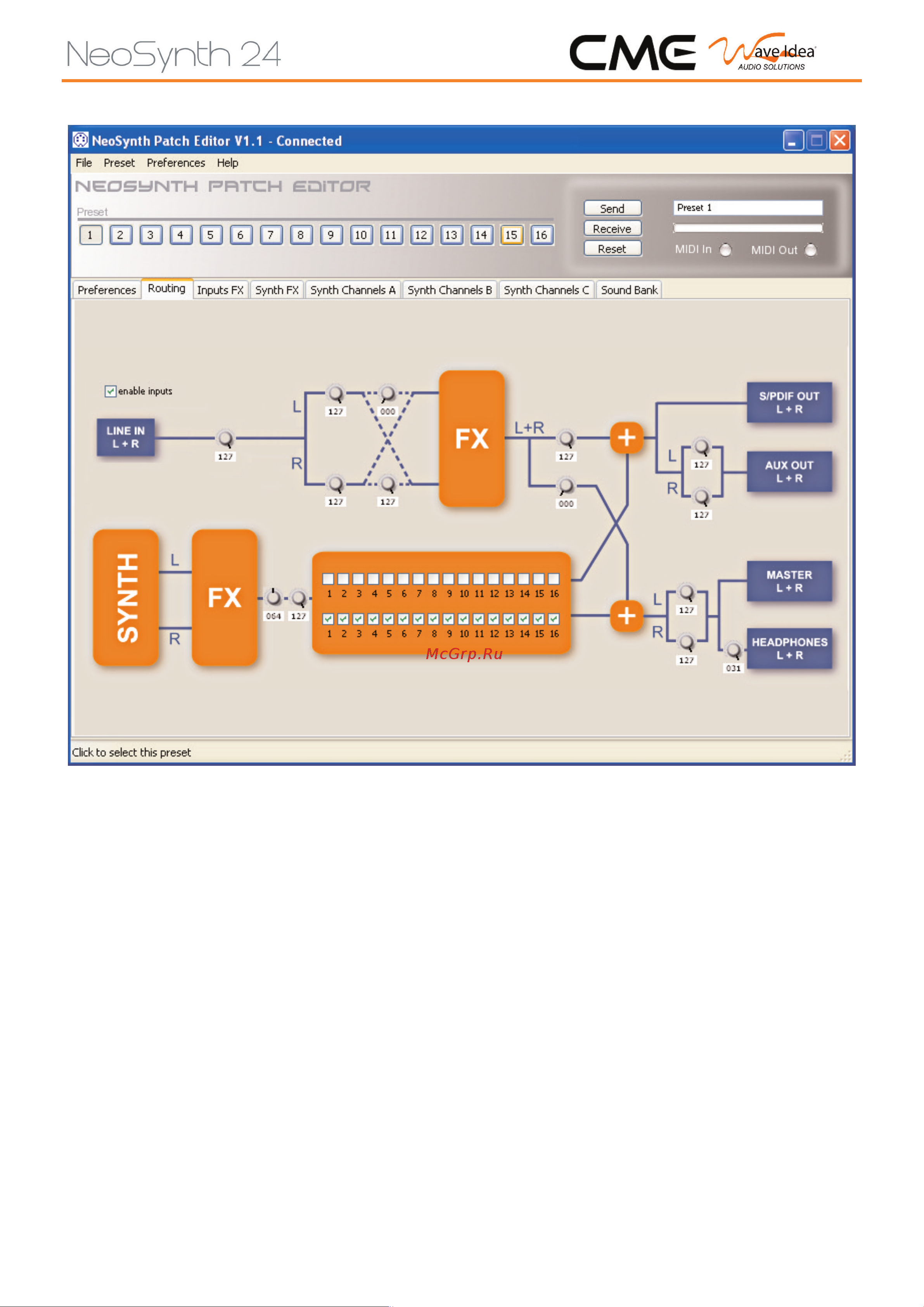

Routing screen
There are two stereo audio paths that can be mixed and panned in all kinds of ways. One stereo path
(from here called external audio) is the line in left and right analog inputs going through a effects section
which is then routed to the S/PDIF output (stereo) and mirrored on the left and right auxilary outputs. On
top of that you can mix this external audio signal into the synth audio path.
The second audio path is the stereo synthesizer audio path (from here called synth audio) coming out of
the synthesizer engine and is going through the effects section, then going through a mixer where you
can make settings for the 16 channels and then going out of the Master left and right outputs and Head-
phones output (stereo). This audio path can also be mixed into the external audio path.
You can even connect externally with two short audio cables the master L+R master outputs to the Line
in L+R inputs to make use of an extra external FX box!
First, let’s go through all the controls possible in this screen. We are going from left to right and from up
