Tesla TA36FFUL-1232IA [41/56] Mounting plate

41

ENG

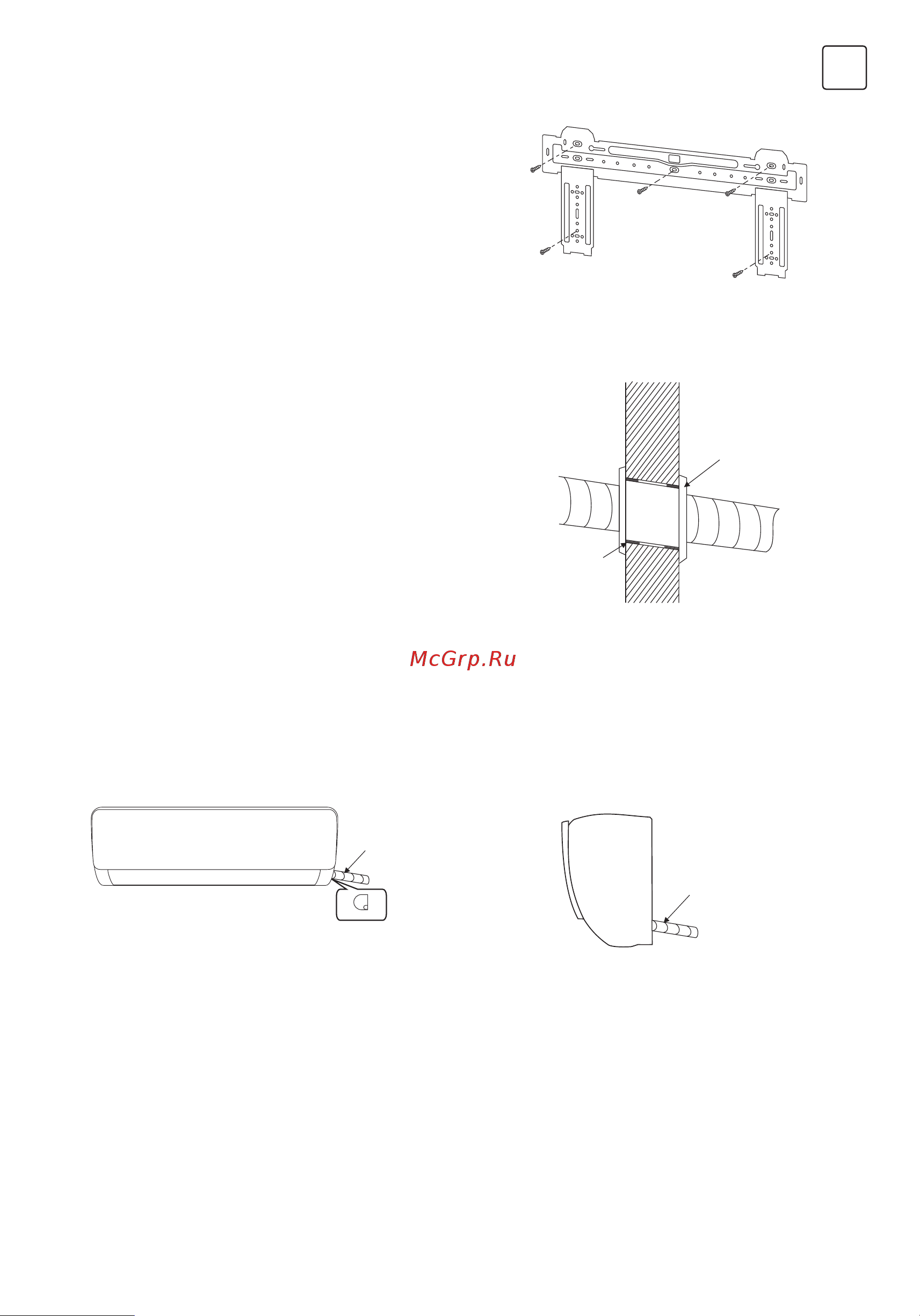

Mounting plate

Wall-through Hole

Route of Pipeline

1. The wall for installation of the indoor unit shall be hard and

firm, so as to prevent vibration.

2. Use the “+” type screw to fasten the peg board, horizontally

mount the peg board on the wall, and ensure the lateral

2. To protect the piping and the cables from being damaged

running through the wall, and from the rodents that may

inhabit in the hollow wall, a pipe protecting ring shall be

installed and sealed with putty.

Note: Usually, the wall hole is ɸ60mm~ɸ80mm. Avoid pre-

buried power wire and hard wall when making the hole.

1. Depending on the position of the unit, the piping may be routed sideway from the left or the right (Fig 1), or

vertically from the back (Fig 2) (depending on the pipe length of the indoor unit). In the case of sideway routing,

cut off the outlet cutting stock of the opposite side.

Pipe protection

Cables
