Dune SMART ME [5/20] Exterior

Exterior

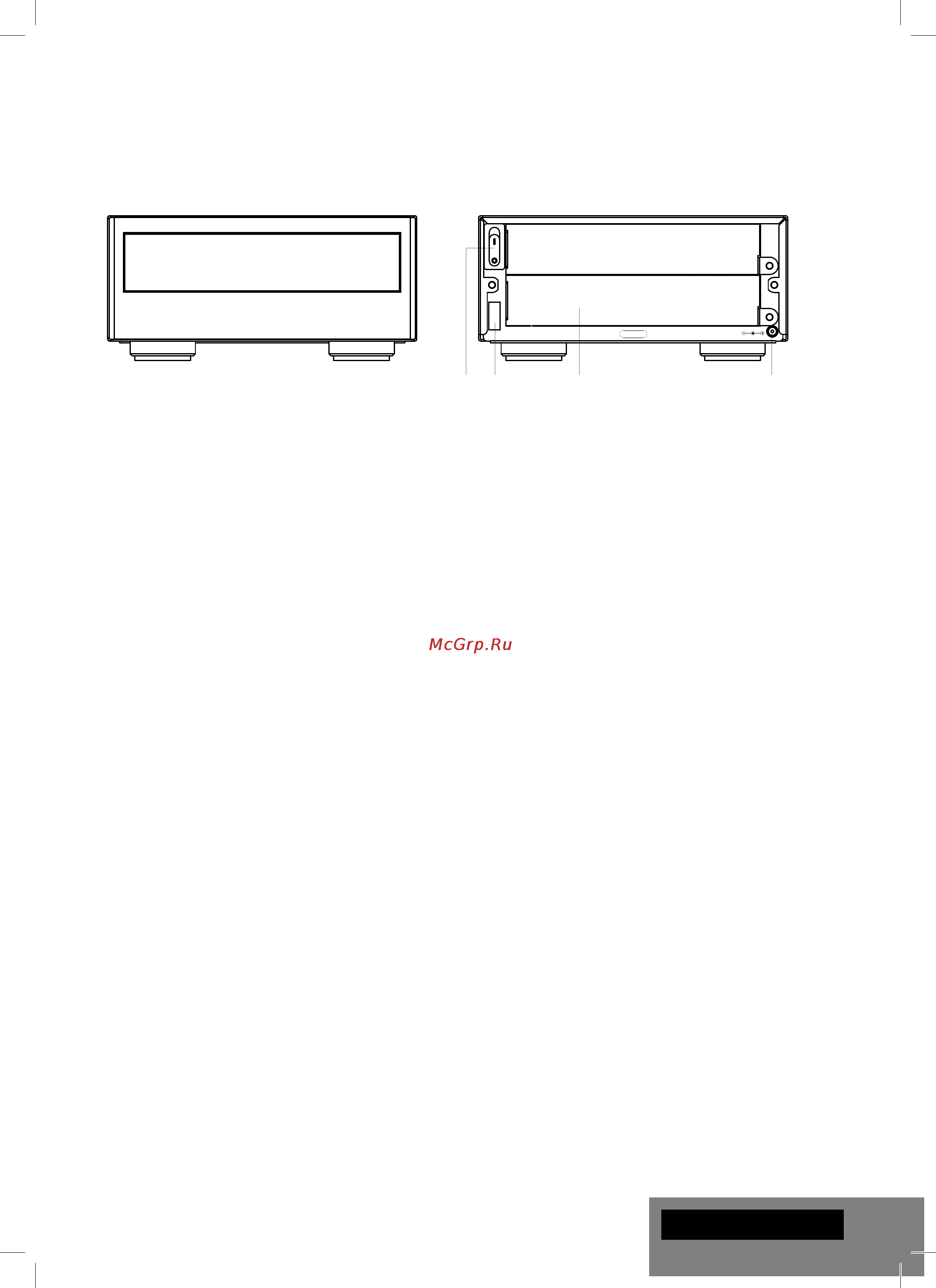

Front view Rear view

1. Power switch

2. USB 2.0 host

12 3 4

DC IN 12VUSB

EXT. 1&2

Usage Instructions

To connect the extension module to the player:

● Connect the USB port of the extension module to the USB host port of the player.

● Ensure power is connected to both the player and the extension module (NOTE: the extension module

has its own power connection, and is not powered from the player via USB connection).

● NOTE: For maximum safety and reliability, it is recommended to switch both the player and the extension

module off (full power off) before connecting and disconnecting them.

● NOTE: You can also use special fastening brackets (not included, can be purchased separately) to

physically connect the extension module to the player.

To install an extension board into the extension module:

● Power off the extension module.

● Choose an unused extension slot.

● Loosen the screw and remove the cover panel from the extension slot.

● Insert the extension board into the extension slot, and fix it using the screw.

● Also follow specific instructions (if any) provided for a particular extension board model.

To remove an extension board from the extension module:

● Power off the extension module.

● Loosen the screw and remove the extension board from the extension slot.

● Attach the cover panel to the extension slot and fix it using the screw.

Getting More Information

Please check here for more detailed and up-to-date information on Dune HD media players and Dune HD

Smart extension modules: http://dune-hd.com

3. Extension slots

4. DC power 12V

ENGLISH
