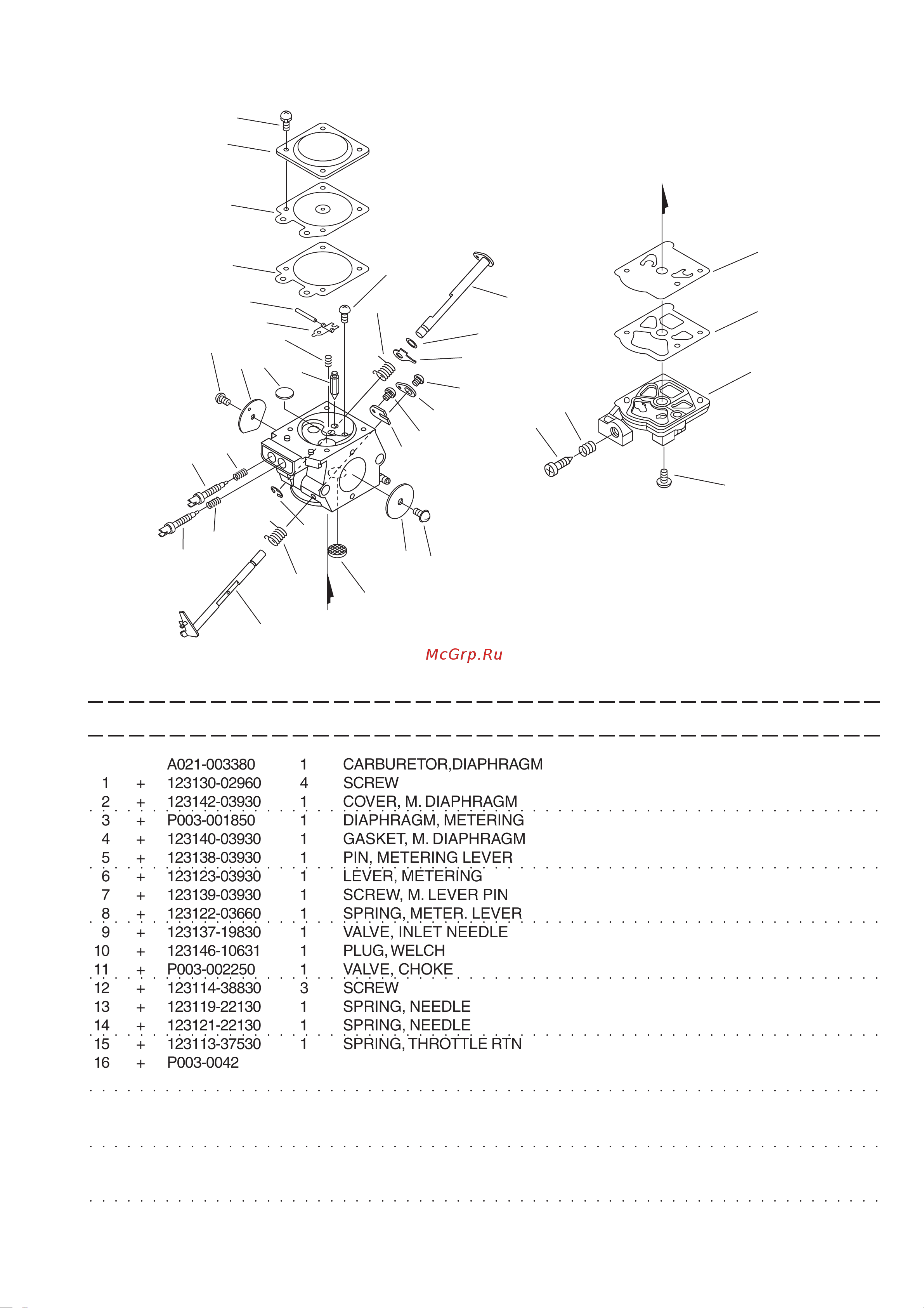

ECHO INCORPORATED ECHO CS-352ES (деталировка) [10/14] Cs 352es 7 carburettor
![ECHO INCORPORATED ECHO CS-352ES (деталировка) [10/14] Cs 352es 7 carburettor](/views2/2002404/page10/bga.png)
- 9 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
A021-003380 1 CARBURETOR,DIAPHRAGM
1 + 123130-02960 4 SCREW
2 + 123142-03930 1 COVER, M. DIAPHRAGM
3 + P003-001850 1 DIAPHRAGM, METERING
4 + 123140-03930 1 GASKET, M. DIAPHRAGM
5 + 123138-03930 1 PIN, METERING LEVER
6 + 123123-03930 1 LEVER, METERING
7 + 123139-03930 1 SCREW, M. LEVER PIN
8 + 123122-03660 1 SPRING, METER. LEVER
9 + 123137-19830 1 VALVE, INLET NEEDLE
10 + 123146-10631 1 PLUG, WELCH
11 + P003-002250 1 VALVE, CHOKE
12 + 123114-38830 3 SCREW
13 + 123119-22130 1 SPRING, NEEDLE
14 + 123121-22130 1 SPRING, NEEDLE
15 + 123113-37530 1 SPRING, THROTTLE RTN
16 + P003-004200 1 SHAFT ASSY, THROTTLE
17 + 123126-10631 1 SCREEN, INLET
18 + 123116-23230 1 VALVE, THROTTLE
19 + 123127-15030 1 RING
20 + P003-001040 1 LEVER THROTTLE
21 + P003-002260 1 SPRING
22 + P003-001510 1 LEVER-FAST IDLE
23 + 123149-26030 1 WASHER
CS-352ES 7 Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
15
16
17
18
19
12
12
20
21
22
23
24
25
26
27
28
30
31
32
35
33
13
34
14
