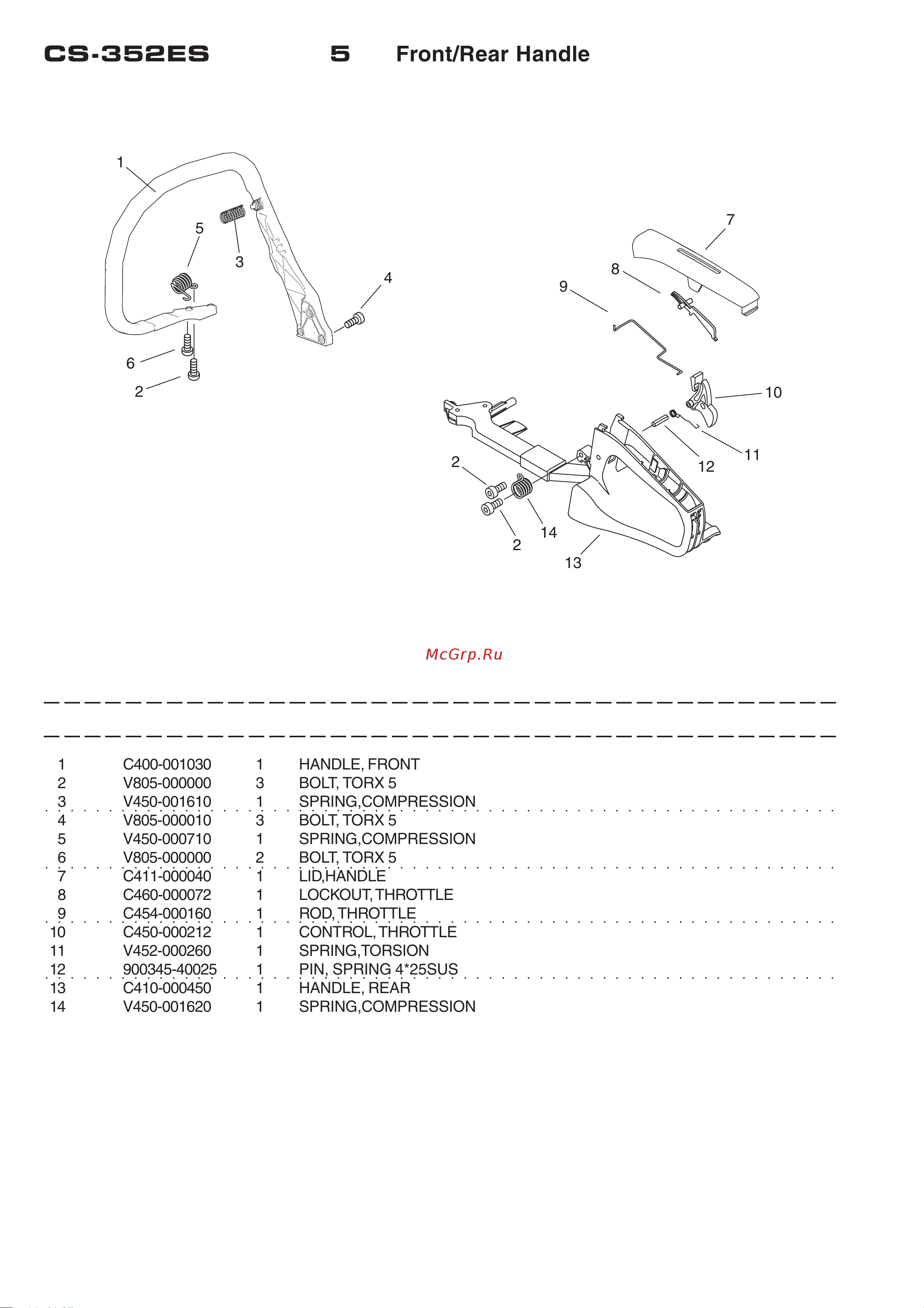

ECHO INCORPORATED ECHO CS-352ES (деталировка) [7/14] Cs 352es 5 front rear handle
![ECHO INCORPORATED ECHO CS-352ES (деталировка) [7/14] Cs 352es 5 front rear handle](/views2/2002404/page7/bg7.png)
- 6 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1 C400-001030 1 HANDLE, FRONT
2 V805-000000 3 BOLT, TORX 5
3 V450-001610 1 SPRING,COMPRESSION
4 V805-000010 3 BOLT, TORX 5
5 V450-000710 1 SPRING,COMPRESSION
6 V805-000000 2 BOLT, TORX 5
7 C411-000040 1 LID,HANDLE
8 C460-000072 1 LOCKOUT, THROTTLE
9 C454-000160 1 ROD, THROTTLE
10 C450-000212 1 CONTROL, THROTTLE
11 V452-000260 1 SPRING,TORSION
12 900345-40025 1 PIN, SPRING 4*25SUS
13 C410-000450 1 HANDLE, REAR
14 V450-001620 1 SPRING,COMPRESSION
CS-352ES 5 Front/Rear Handle
2
6
5
3
4
1
2
2
14
7
8
9
1
0
11
12
13
