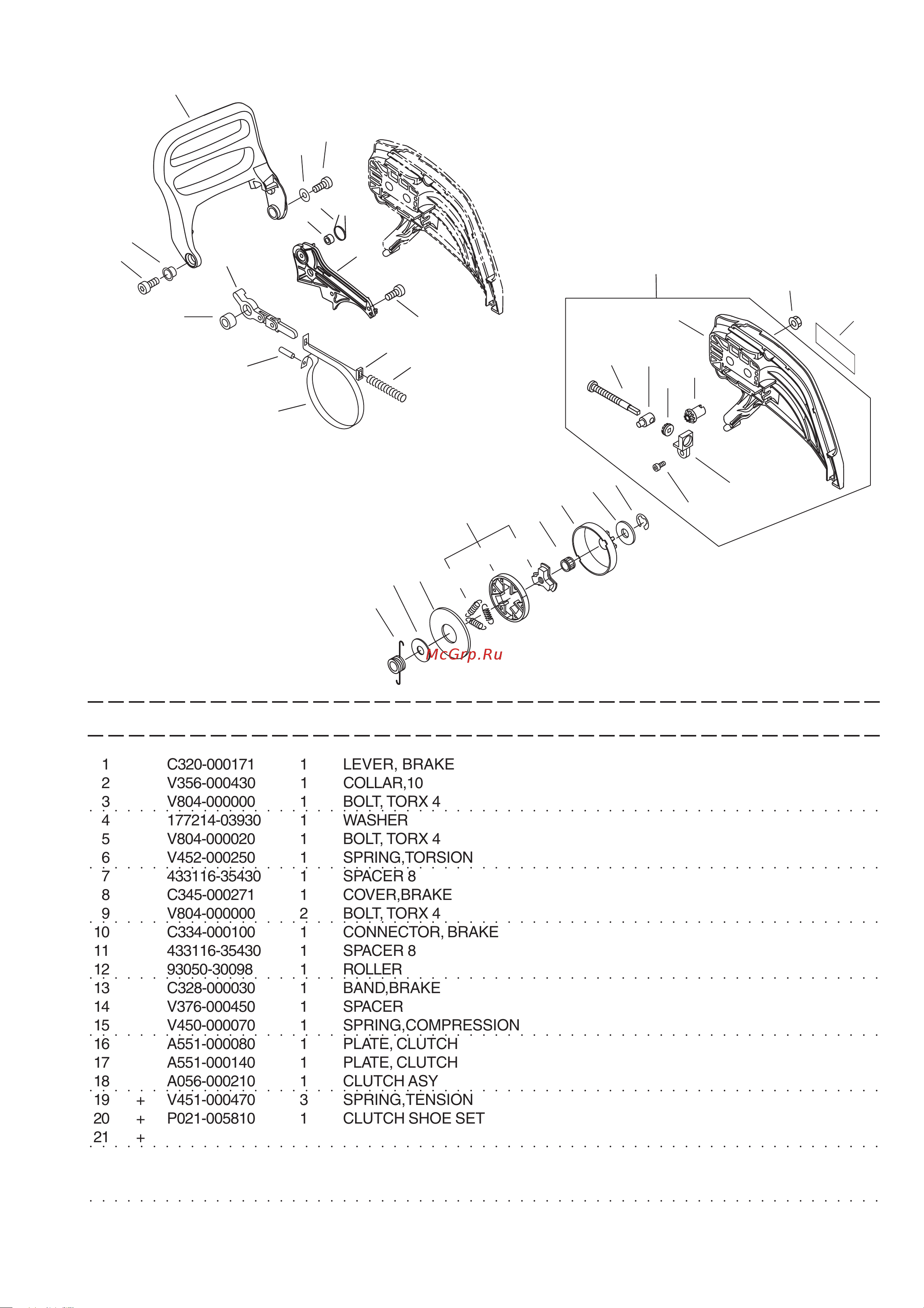

ECHO INCORPORATED ECHO CS-352ES (деталировка) [8/14] Cs 352es 6 clutch sprocket brake handle
![ECHO INCORPORATED ECHO CS-352ES (деталировка) [8/14] Cs 352es 6 clutch sprocket brake handle](/views2/2002404/page8/bg8.png)
- 7 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1 C320-000171 1 LEVER, BRAKE
2 V356-000430 1 COLLAR,10
3 V804-000000 1 BOLT, TORX 4
4 177214-03930 1 WASHER
5 V804-000020 1 BOLT, TORX 4
6 V452-000250 1 SPRING,TORSION
7 433116-35430 1 SPACER 8
8 C345-000271 1 COVER,BRAKE
9 V804-000000 2 BOLT, TORX 4
10 C334-000100 1 CONNECTOR, BRAKE
11 433116-35430 1 SPACER 8
12 93050-30098 1 ROLLER
13 C328-000030 1 BAND,BRAKE
14 V376-000450 1 SPACER
15 V450-000070 1 SPRING,COMPRESSION
16 A551-000080 1 PLATE, CLUTCH
17 A551-000140 1 PLATE, CLUTCH
18 A056-000210 1 CLUTCH ASY
19 + V451-000470 3 SPRING,TENSION
20 + P021-005810 1 CLUTCH SHOE SET
21 + A552-000100 1 HUB, CLUTCH
22 175012-03930 1 BEARING, NEEDLE
23 A556-000542 1 DRUM, CLUTCH
24 100143-19830 1 WASHER
CS-352ES 6 Clutch,Sprocket,Brake Handle
1
2
3
4
5
7
6
8
9
10
11
12
13
14
15
16
17
18
19
20
21
35
22
23
24
25
26
27
28
29
30
31
32
33
34
36
