ECHO INCORPORATED ECHO CS-352ES (деталировка) [11/14] Cs 352es 8 carburettor
![ECHO INCORPORATED ECHO CS-352ES (деталировка) [11/14] Cs 352es 8 carburettor](/views2/2002404/page11/bgb.png)
- 10 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
24 + P003-000150 1 CHOKE, SHAFT
25 + 123112-15030 1 DIAPHRAGM, FUEL PUMP
26 + 123125-15030 1 GASKET, FUEL PUMP
27 + 123124-09520 1 COVER, FUEL PUMP
28 + 123110-03930 1 SCREW, PUMP COVER
30 + 123133-04260 1 SPRING, IDLE ADJUST
31 + 123134-04260 1 SCREW, IDLE ADJUST
32 + 123127-03930 1 CLIP, THROTTLE SHAFT
33 + P003-001340 1 NEEDLE POWER
34 + 123118-30330 1 NEEDLE, IDLE
35 + P003-002380 1 SCREW

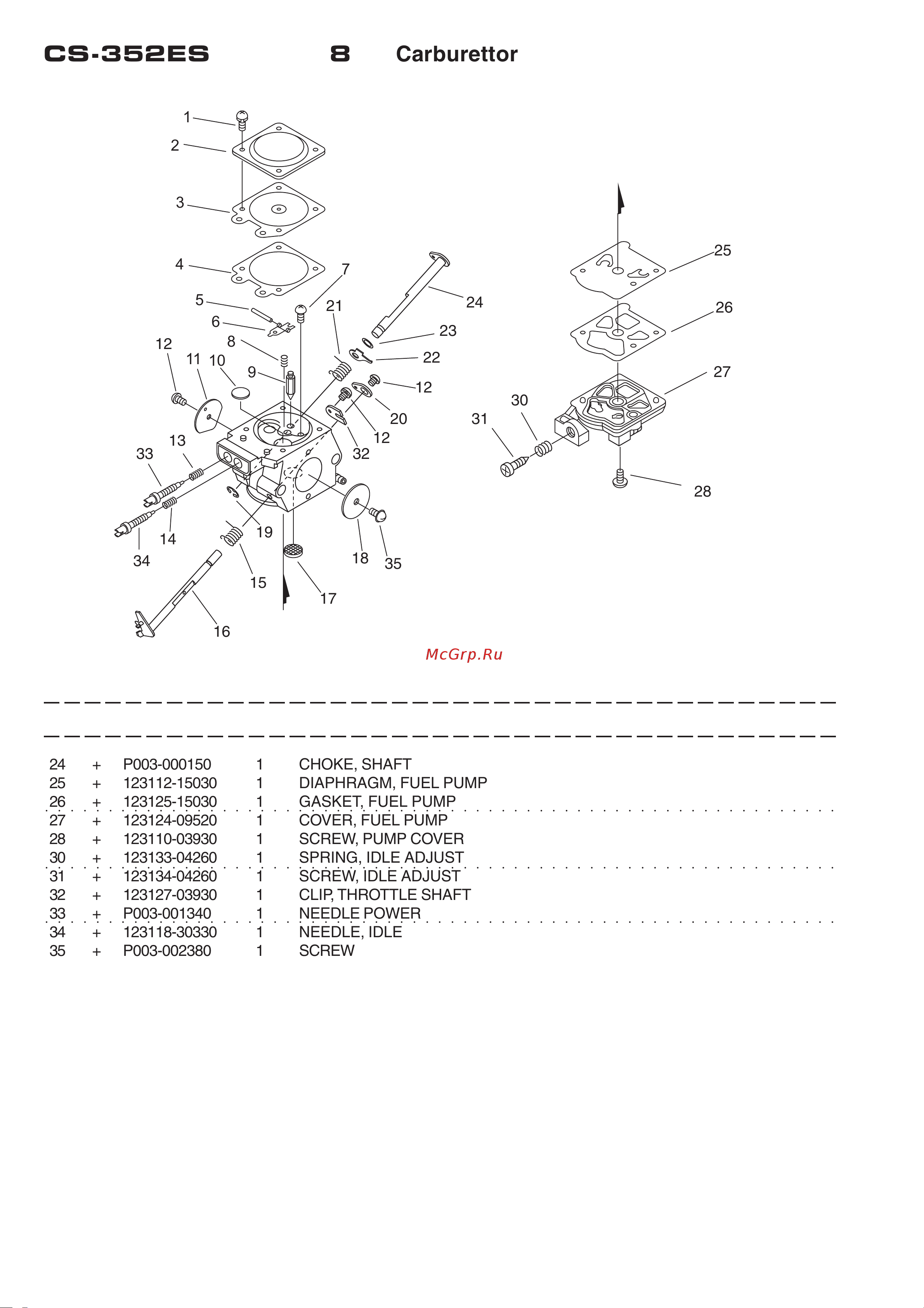

CS-352ES 8 Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
15
16
17
18
19
12
12
20
21
22
23
24
25
26
27
28
30
31
32
35
33
13
34
14
