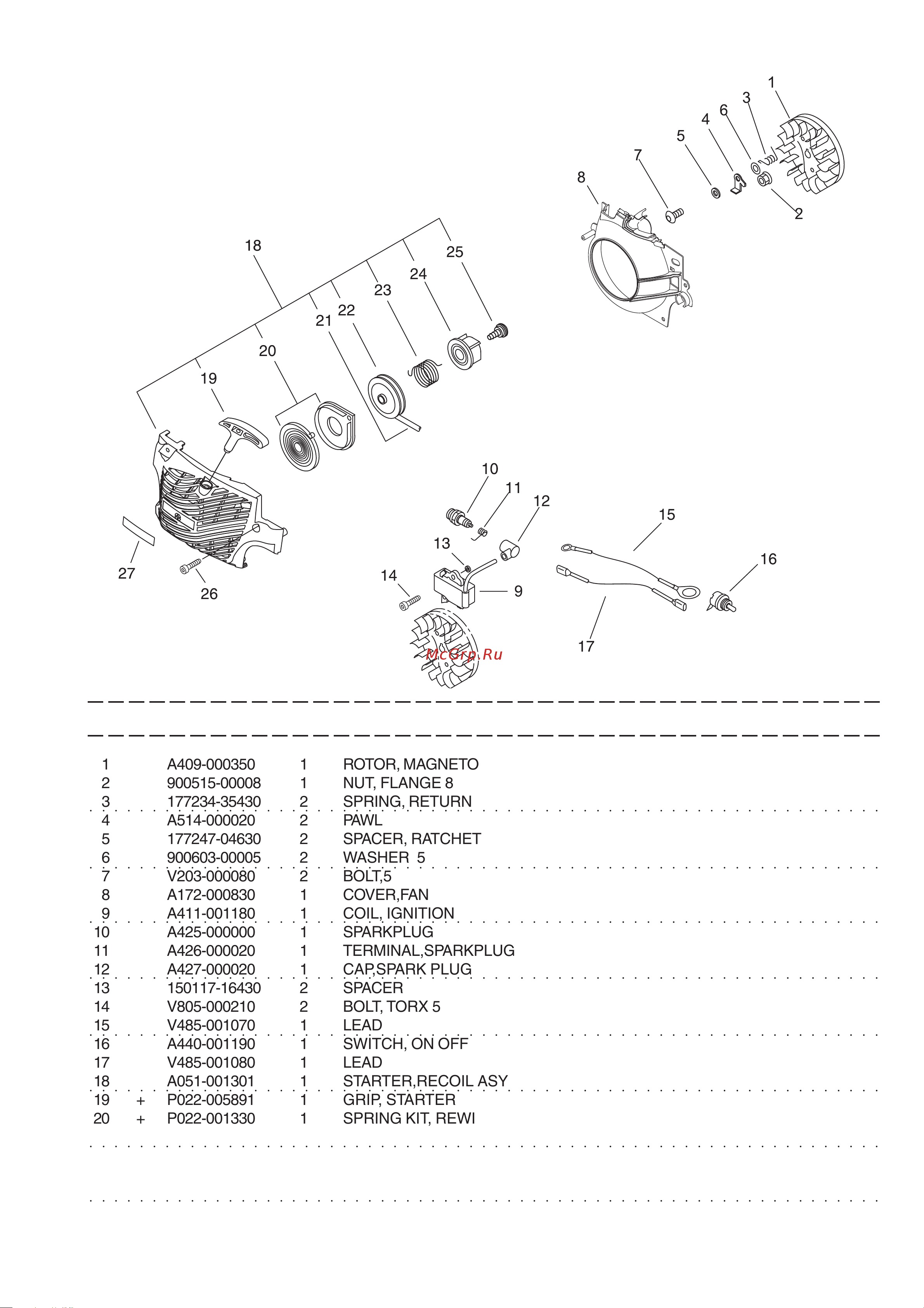

- 3 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1 A409-000350 1 ROTOR, MAGNETO
2 900515-00008 1 NUT, FLANGE 8
3 177234-35430 2 SPRING, RETURN
4 A514-000020 2 PAWL
5 177247-04630 2 SPACER, RATCHET
6 900603-00005 2 WASHER 5
7 V203-000080 2 BOLT,5
8 A172-000830 1 COVER,FAN
9 A411-001180 1 COIL, IGNITION
10 A425-000000 1 SPARKPLUG
11 A426-000020 1 TERMINAL,SPARKPLUG
12 A427-000020 1 CAP,SPARK PLUG
13 150117-16430 2 SPACER
14 V805-000210 2 BOLT, TORX 5
15 V485-001070 1 LEAD
16 A440-001190 1 SWITCH, ON OFF
17 V485-001080 1 LEAD
18 A051-001301 1 STARTER,RECOIL ASY
19 + P022-005891 1 GRIP, STARTER
20 + P022-001330 1 SPRING KIT, REWIND
21 + P022-008440 1 ROPE, STARTER
22 + A506-000460 1 REEL,ROPE
23 + V452-001320 1 SPRING,TORSION
24 + A507-000110 1 CATCHER,PAWL
25 + 177236-61830 1 SCREW
26 V805-000010 4 BOLT, TORX 5
27 X502-000670 1 LABEL,ECHO
CS-352ES 3 Starter,Magneto
