- 8 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
25 V583-000120 1 RING
26 P021-015111 1 GUARD,SPROCKET KIT
27 + C300-000401 1 GUARD, SPROCKET
28 + V203-000110 1 BOLT,5
29 + C309-000030 1 TENSIONER,CHAIN
30 + V651-000011 1 GEAR,BEVEL
31 + V651-000001 1 GEAR,BEVEL
32 + V355-000140 1 COLLAR,8
33 + V804-000000 1 BOLT, TORX 4
34 433019-12330 2 NUT, FLANGE 8
35 V652-000040 1 GEAR,WORM
36 X502-000340 1 LABEL,ECHO

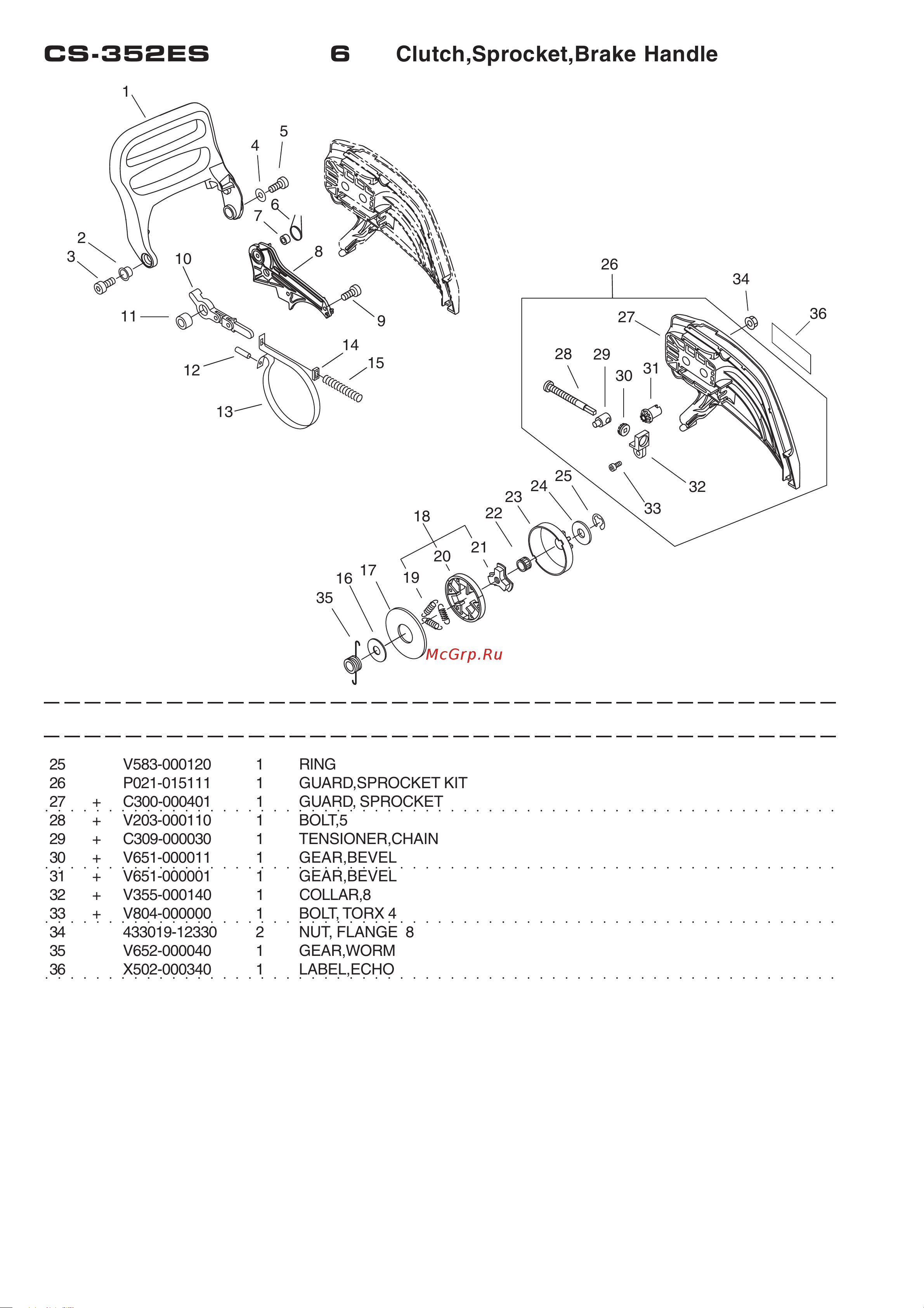

CS-352ES 6 Clutch,Sprocket,Brake Handle
1
2
3
4
5
7
6
8
9
10
11
12
13
14
15
16
17
18
19
20
21
35
22
23
24
25
26
27
28
29
30
31
32
33
34
36
