ECHO INCORPORATED ECHO CS-352ES (деталировка) [5/14] Cs 352es 4 carburettor cylinder cover fuel oil tank
![ECHO INCORPORATED ECHO CS-352ES (деталировка) [5/14] Cs 352es 4 carburettor cylinder cover fuel oil tank](/views2/2002404/page5/bg5.png)
- 4 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1 P021-005581 1 OIL CAP ASY
2 + 900720-00018 1 O-RING 18
3 + A365-000050 1 CONNECTOR,CAP
4 436114-13930 1 VALVE, CHECK
5 436205-02832 1 STRAINER, OIL
6 132115-01461 1 GROMMET
7 130110-05260 1 PIPE, IMPULSE
8 V186-000020 1 JOINT,PIPE
9 V470-000810 1 PIPE
10 V137-000000 1 GROMMET,FUEL
11 A356-000031 1 VALVE,CHECK
12 131004-37933 1 CAP ASY, FUEL
3 + A365-000050 1 CONNECTOR,CAP
13 + V581-000610 1 RING,O
15 V471-002170 1 PIPE
16 132013-09820 1 CLIP
17 V471-001560 1 PIPE
18 132115-44330 1 GROMMET
19 131205-14930 1 STRAINER,FUEL
20 V805-000010 2 BOLT, TORX 5
21 A200-000352 1 INSULATOR, INTAKE
22 A021-003380 1 CARBURETOR,DIAPHRAGM
23 V805-000040 2 BOLT, TORX 5
24 A204-000211 1 ELBOW, CARBURETOR

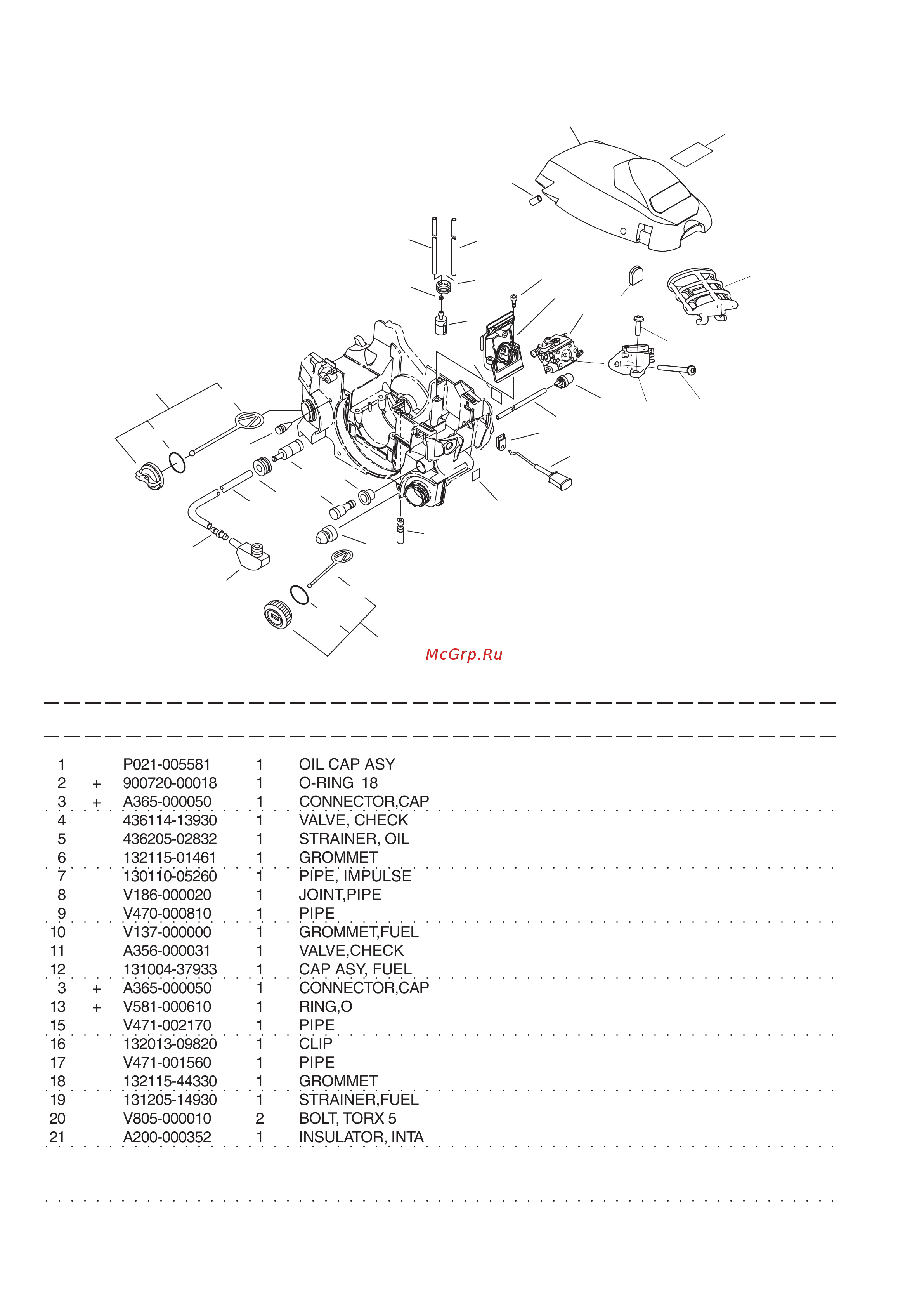

CS-352ES 4 Carburettor,Cylinder cover,Fuel/Oil tank
1
2
3
4
5
6
7
8
9
10
11
12
13
3
15
16
17
18
19
20
21
22
23
24
25
27
28
29
30
31
32
2
6
33
36
37
38
39
43
