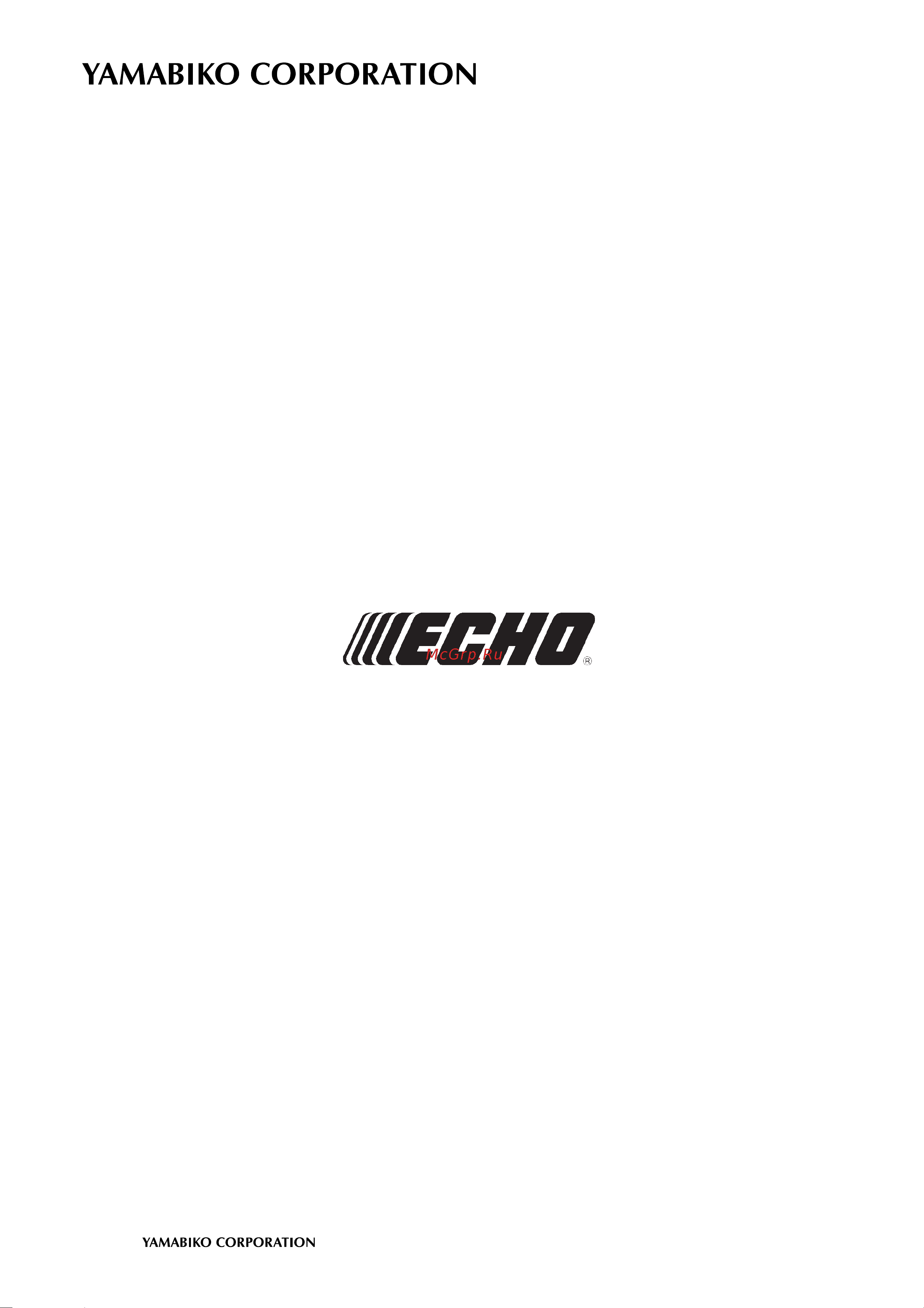

2011

©

7-2 SUEHIROCHO 1-CHOME, OHME, TOKYO 198-8760, JAPAN

PHONE: 81-428-32-6118. FAX: 81-428-32-6145.

11/06 03-317

Содержание

Cs 352es 1 cylinder crankcase piston 2
Key lv part number q ty description remarks 2
P021 035190 1 crankcase kit 2 v805 000220 4 bolt torx 5 3 a202 000070 1 bellows intake 4 a206 000000 1 holder bellows 5 p021 035200 1 piston kit 6 a101 000580 1 ring piston 7 100013 15330 1 pin piston 8 100015 04630 2 circlip piston pin 10 100014 11520 2 spacer piston pin 11 100142 12330 1 key woodruff 12 p021 015072 1 crankshaft assy 13 v505 000011 2 seal oil 12 14 94035 36201 2 bearing ball 16 p021 036934 1 cover engine 17 v225 000030 2 bolt stud 8 18 c463 000030 2 knob latch 19 j485 000200 2 hinge 20 v490 000400 2 clip 21 v622 000070 4 pin straight 4 22 v805 000180 4 bolt torx 5 23 c617 000500 2 stopper 24 v456 000240 1 holder spring 25 v805 000140 1 bolt torx 5 2
900516 00005 2 nut frange 5 2 145861 60930 1 lid muffler 3 145614 60930 1 plate muffler 4 145610 60930 1 muffler 5 v104 000732 1 gasket exhaust 6 101023 60930 2 bolt 5 5 60 8 898510 39130 1 bag tool 9 x602 000080 1 tool wrench 10 895812 03930 1 driver screw 50 12 x605 000050 1 tool l wrench 13 p021 014660 1 scabbard chain 14 898568 14530 1 rope 15 431019 15832 1 chain saw 91vx 52e 16 x123 000250 1 bar guide 35 3
Cs 352es 2 muffler tools 3
Key lv part number q ty description remarks 3
A409 000350 1 rotor magneto 2 900515 00008 1 nut flange 8 3 177234 35430 2 spring return 4 a514 000020 2 pawl 5 177247 04630 2 spacer ratchet 6 900603 00005 2 washer 5 7 v203 000080 2 bolt 5 8 a172 000830 1 cover fan 9 a411 001180 1 coil ignition 10 a425 000000 1 sparkplug 11 a426 000020 1 terminal sparkplug 12 a427 000020 1 cap spark plug 13 150117 16430 2 spacer 14 v805 000210 2 bolt torx 5 15 v485 001070 1 lead 16 a440 001190 1 switch on off 17 v485 001080 1 lead 18 a051 001301 1 starter recoil asy 19 p022 005891 1 grip starter 20 p022 001330 1 spring kit rewind 21 p022 008440 1 rope starter 22 a506 000460 1 reel rope 23 v452 001320 1 spring torsion 24 a507 000110 1 catcher pawl 25 177236 61830 1 screw 26 v805 000010 4 bolt torx 5 27 x502 000670 1 label echo 4
Cs 352es 3 starter magneto 4
Key lv part number q ty description remarks 4
Cs 352es 4 carburettor cylinder cover fuel oil tank 5
Key lv part number q ty description remarks 5
P021 005581 1 oil cap asy 2 900720 00018 1 o ring 18 3 a365 000050 1 connector cap 4 436114 13930 1 valve check 5 436205 02832 1 strainer oil 6 132115 01461 1 grommet 7 130110 05260 1 pipe impulse 8 v186 000020 1 joint pipe 9 v470 000810 1 pipe 10 v137 000000 1 grommet fuel 11 a356 000031 1 valve check 12 131004 37933 1 cap asy fuel 3 a365 000050 1 connector cap 13 v581 000610 1 ring o 15 v471 002170 1 pipe 16 132013 09820 1 clip 17 v471 001560 1 pipe 18 132115 44330 1 grommet 19 131205 14930 1 strainer fuel 20 v805 000010 2 bolt torx 5 21 a200 000352 1 insulator intake 22 a021 003380 1 carburetor diaphragm 23 v805 000040 2 bolt torx 5 24 a204 000211 1 elbow carburetor 5
Cs 352es 4 carburettor cylinder cover fuel oil tank 6
Key lv part number q ty description remarks 6
V805 000000 1 bolt torx 5 26 a226 001570 1 element air filter 27 123181 39130 1 pump primer 28 v471 001280 1 pipe 29 v130 000010 1 grommet choke 30 a241 000150 1 knob choke 31 c022 000071 1 auto oiler assembly 32 v420 001790 2 cushion 33 a160 002300 1 cover cylinder 36 100927 35830 1 pipe 37 890157 39130 1 label switch 38 x524 001900 1 label 39 x503 010410 1 label model 43 130338 32430 1 plug cover 6
C400 001030 1 handle front 2 v805 000000 3 bolt torx 5 3 v450 001610 1 spring compression 4 v805 000010 3 bolt torx 5 5 v450 000710 1 spring compression 6 v805 000000 2 bolt torx 5 7 c411 000040 1 lid handle 8 c460 000072 1 lockout throttle 9 c454 000160 1 rod throttle 10 c450 000212 1 control throttle 11 v452 000260 1 spring torsion 12 900345 40025 1 pin spring 4 25sus 13 c410 000450 1 handle rear 14 v450 001620 1 spring compression 7
Cs 352es 5 front rear handle 7
Key lv part number q ty description remarks 7
C320 000171 1 lever brake 2 v356 000430 1 collar 10 3 v804 000000 1 bolt torx 4 4 177214 03930 1 washer 5 v804 000020 1 bolt torx 4 6 v452 000250 1 spring torsion 7 433116 35430 1 spacer 8 8 c345 000271 1 cover brake 9 v804 000000 2 bolt torx 4 10 c334 000100 1 connector brake 11 433116 35430 1 spacer 8 12 93050 30098 1 roller 13 c328 000030 1 band brake 14 v376 000450 1 spacer 15 v450 000070 1 spring compression 16 a551 000080 1 plate clutch 17 a551 000140 1 plate clutch 18 a056 000210 1 clutch asy 19 v451 000470 3 spring tension 20 p021 005810 1 clutch shoe set 21 a552 000100 1 hub clutch 22 175012 03930 1 bearing needle 23 a556 000542 1 drum clutch 24 100143 19830 1 washer 8
Cs 352es 6 clutch sprocket brake handle 8
Key lv part number q ty description remarks 8
Cs 352es 6 clutch sprocket brake handle 9
Key lv part number q ty description remarks 9
V583 000120 1 ring 26 p021 015111 1 guard sprocket kit 27 c300 000401 1 guard sprocket 28 v203 000110 1 bolt 5 29 c309 000030 1 tensioner chain 30 v651 000011 1 gear bevel 31 v651 000001 1 gear bevel 32 v355 000140 1 collar 8 33 v804 000000 1 bolt torx 4 34 433019 12330 2 nut flange 8 35 v652 000040 1 gear worm 36 x502 000340 1 label echo 9
A021 003380 1 carburetor diaphragm 1 123130 02960 4 screw 2 123142 03930 1 cover m diaphragm 3 p003 001850 1 diaphragm metering 4 123140 03930 1 gasket m diaphragm 5 123138 03930 1 pin metering lever 6 123123 03930 1 lever metering 7 123139 03930 1 screw m lever pin 8 123122 03660 1 spring meter lever 9 123137 19830 1 valve inlet needle 10 123146 10631 1 plug welch 11 p003 002250 1 valve choke 12 123114 38830 3 screw 13 123119 22130 1 spring needle 14 123121 22130 1 spring needle 15 123113 37530 1 spring throttle rtn 16 p003 004200 1 shaft assy throttle 17 123126 10631 1 screen inlet 18 123116 23230 1 valve throttle 19 123127 15030 1 ring 20 p003 001040 1 lever throttle 21 p003 002260 1 spring 22 p003 001510 1 lever fast idle 23 123149 26030 1 washer 10
Cs 352es 7 carburettor 10
Key lv part number q ty description remarks 10
Cs 352es 8 carburettor 11
Key lv part number q ty description remarks 11
P003 000150 1 choke shaft 25 123112 15030 1 diaphragm fuel pump 26 123125 15030 1 gasket fuel pump 27 123124 09520 1 cover fuel pump 28 123110 03930 1 screw pump cover 30 123133 04260 1 spring idle adjust 31 123134 04260 1 screw idle adjust 32 123127 03930 1 clip throttle shaft 33 p003 001340 1 needle power 34 123118 30330 1 needle idle 35 p003 002380 1 screw 11
Parts number key no parts number key no parts number key no 12
Parts number key no parts number key no parts number key no 13
