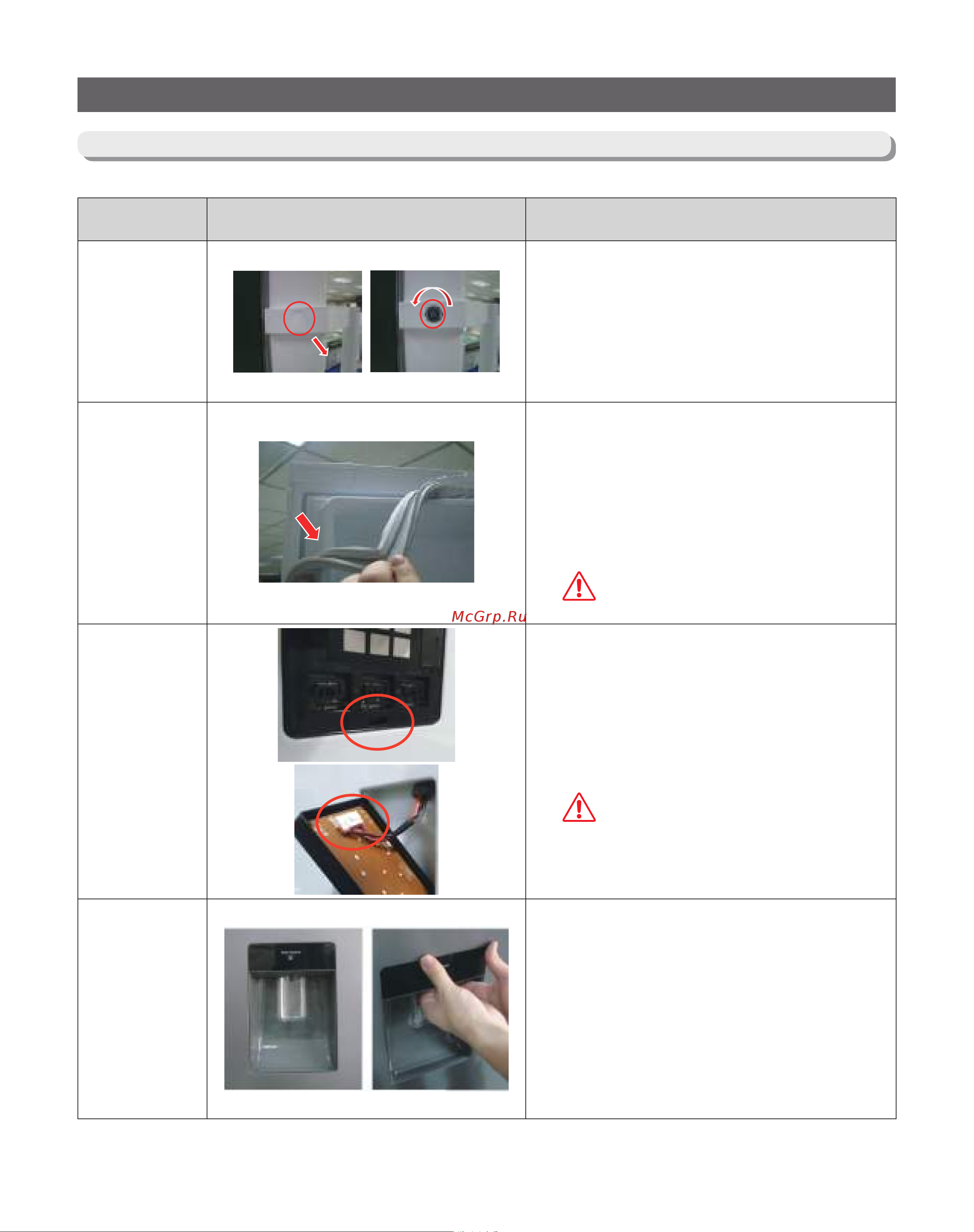

3. DISASSEMBLY & REASSEMBLY
3-3) Door Sub parts
PART NAME FIGURE DESCRIPTION
Door Handle
(Bar/Easy
handle)
1. Insert a flat-head screwdriver on the slot as
shown,and unlock the caps.
2. Remove screws by turning to counterclockwise,
and take off the Handle Assy by pulling out.
Door Gasket
The door gasket is a molded gasket set into a
channel located in the door liner.
1. Open the door.
2. Grasp the gasket and pull in an outward motion
until the molded gasket separates from the door
liner.
Be careful of injury.
Door display
(Frige Option
Item)
- Exterior Display
1. Remove inlay film as shown.
2. Insert a flat-head screwdriver on the slot as
shown,and unlock the tabs.
3. Disconnect the wire connector.
When diassembling, make sure
the unit turned off.
Water
Dispenser
(Frige Option
Item)
1. Hold the top as shown in the picture and remove
it by pulling it forward.
