![Samsung RB37A50N0SA [91/101] Wiring diagram](/img/pdf.png)
Samsung RB37A50N0SA [91/101] Wiring diagram
![Samsung RB37A50N0SA [91/101] Wiring diagram](/views2/2003579/page91/bg5b.png)
91

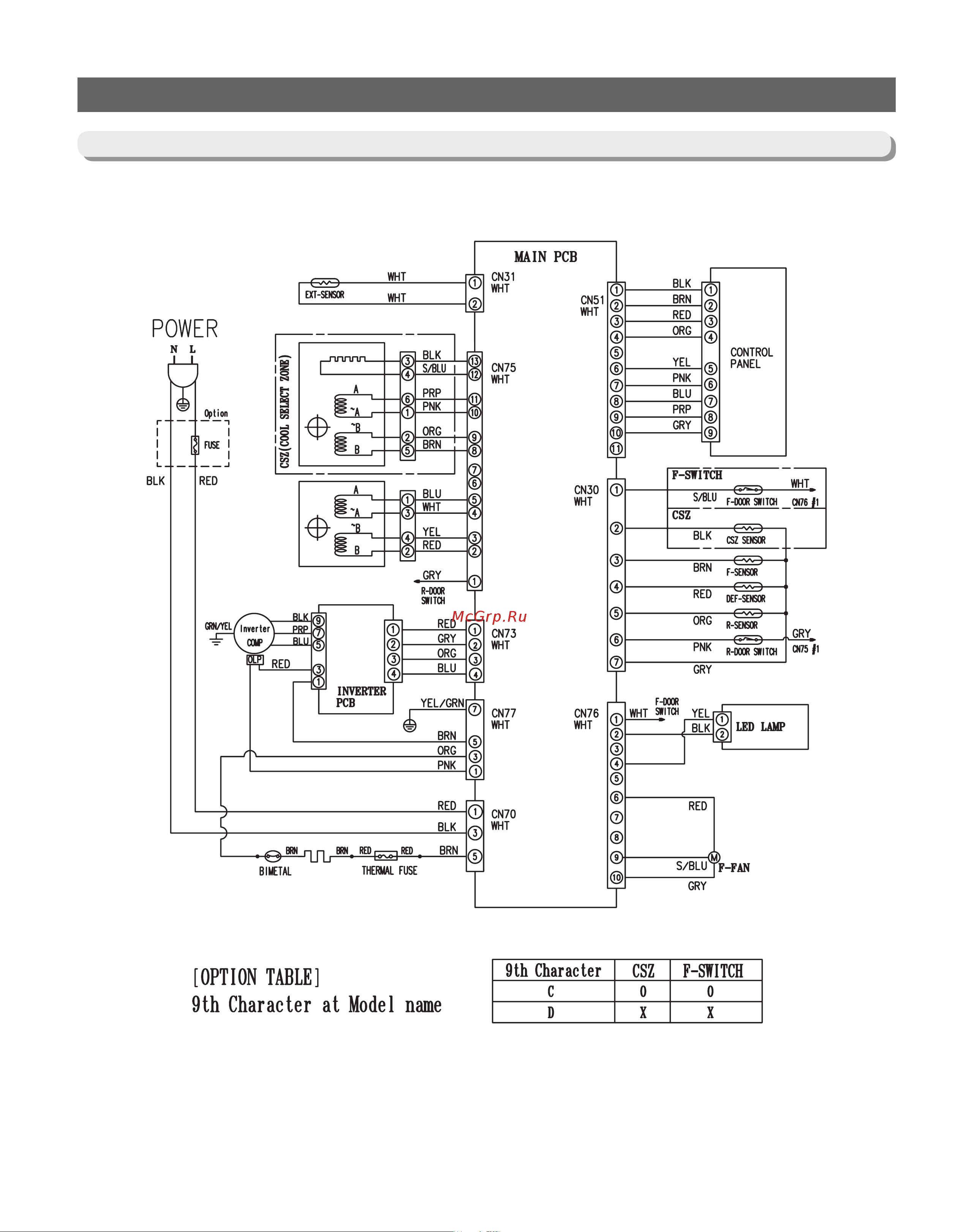

6. WIRING DIAGRAM
This document can not be used without Samsung's authorization.
6-1) Wiring Diagram (A+, A++)
