14
TASCAM MiNiSTUDIO PERSONAL
Computer

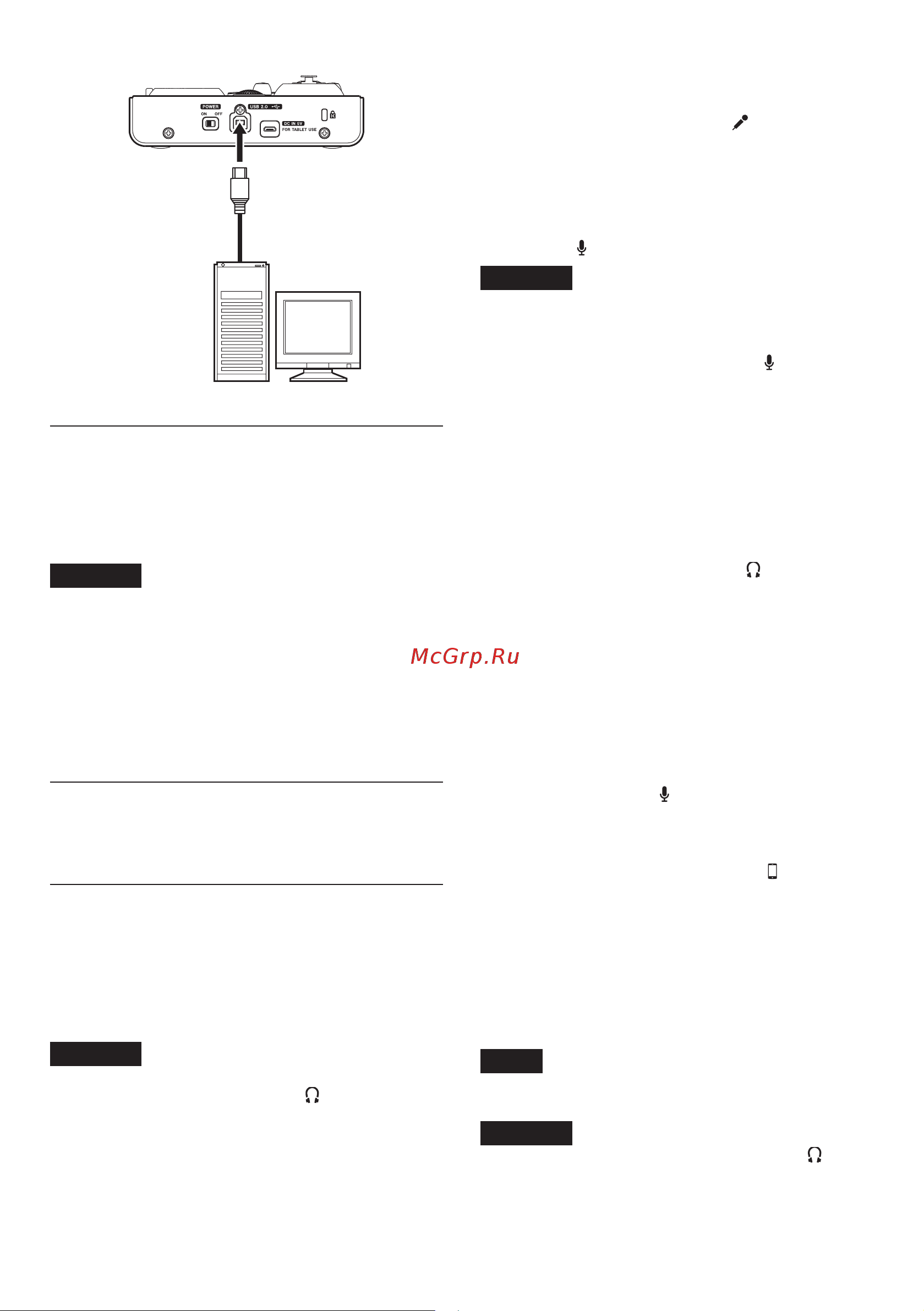

Examples of connections to a MiNiSTUDIO (back)
Connecting with a computer
Use the included USB cable to connect the unit to a
computer USB 2.0/3.0 port.
When the power is on, you can check the Settings
Panel Device item to confirm whether a USB
connection is working.
CAUTION
If you connect this unit to a computer via a
USB hub, for example, audio signal dropouts,
clicking noises and other interference could
occur due to the influence of other USB devices
connected to that hub. For this reason, we
strongly recommend connecting this unit to a
separate USB port. Connecting USB keyboards
and mice, however, to the same bus should not
be a problem.
Connecting iOS devices
You will need a Lightning to USB Camera Adapter and
the USB cable included with this unit to connect an
iOS device.
Audio connections
Analog audio signals input into this device from mics
and other audio equipment can be converted into
digital signals and sent to the computer via USB.
In addition, by connecting headphones to this unit,
you can monitor audio signals that are input to this
unit and output from the computer.
CAUTION
Before connecting audio equipment, set the
unit’s VOLUME knob (4) and headphones
knob (6) to their lowest values. Failure to
do so could cause sudden loud noises from
monitoring equipment, and this could damage
the equipment or harm hearing.
8
Connecting microphones
Dynamic mics
Set the input switch (5) to , and connect the
mic to the IN 1 jack (1) on the top of the unit.
Condenser mics
When using a condenser microphone that
requires phantom power, connect it to the IN
1 XLR jack (1), and then set the input switch
5 to .
CAUTION
• Before making connections, turn off this unit and
all connected devices (excluding computers/iOS
devices) to be connected (or put them into standby).
• Do not set the input switch (5) to (phantom
power on) when connecting a mic that does not
require phantom power.
• Turning phantom power on when a dynamic mic
or other mic that does not require it is connected
could damage this unit and connected equipment.
• Do not connect or disconnect mics while
phantom power is on. Doing so could cause
a loud noise and might damage this unit and
connected equipment.
• Set the VOLUME knob (4) and headphones
knob (6) to their minimum values before
turning phantom power on/off. Depending on
the connected mics, sudden loud noises from
monitoring equipment could occur, and this
could damage the equipment or harm hearing.
• Supplying phantom power to some ribbon mics
will break them. If you are unsure, do not supply
phantom power to a ribbon mic.
• If you connect this unit to a laptop computer
that is running on battery power and set the
input switch (5) to , the computer battery
charge will be used more quickly.
8
Connecting other audio equipment
Connect other audio equipment to the external
input jack (t) on the front of the unit.
Use the output level setting of the connected device
to adjust the input level.
8
Connecting headphones
Connect headphones to a headphones jack (standard
stereo jack or stereo mini jack) (w and e) on the
front of the unit.
NOTE
The same signals are output from both the
standard stereo jack and the stereo mini jack.
CAUTION
Before connecting headphones, use the
headphones knob (6) to minimize the volume.
Failure to do so could result in a sudden loud
noise that could harm hearing, for example.
