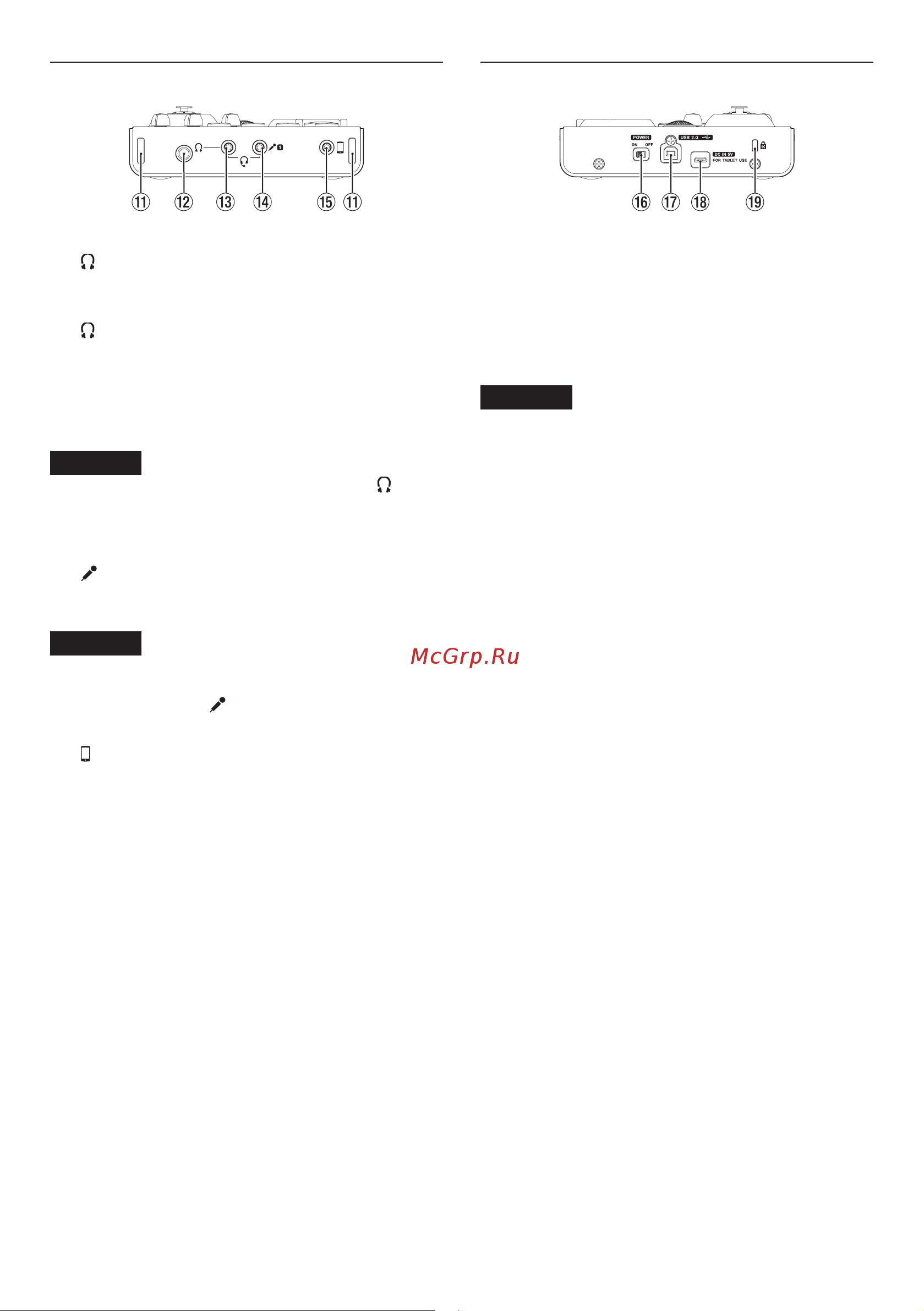

TASCAM MiNiSTUDIO PERSONAL
9
Front panel
q Strap attachments
w Headphones jack (stereo standard)
Use this standard stereo jack to connect stereo
headphones.
e Headphones jack (stereo mini)
Connect stereo headphones to this stereo mini
jack.
This unit supports input and output for 4-pole
headphones with a built-in mic and output for
headset headphones.
CAUTION
Before connecting headphones, use the
headphones knob (6) to minimize the volume.
Failure to do so could result in a sudden loud
noise that could harm hearing, for example.
r Mic jack (TS mini)
Connect the mic plug of a headset to this TS mini
jack.
CAUTION
The IN 1 jack on the top of the unit, the mic
input for 4-pole headphones with a mic (e), and
the headset jack mic input (r) cannot be used
at the same time.
t External input jack (stereo mini)
Use a stereo mini jack cable to connect this to the
line output jack of a tablet or other device.
Use the output level setting of the connected
device to adjust the input level.
Rear panel
y POWER switch
Use to turn the unit on and to put it into standby.
When the unit is turned on, the LEVEL meter (3)
lights completely once.
u USB 2.0 port
Use the included USB cable to connect the unit
to a computer. (Supports USB 2.0.)
CAUTION
• When using this unit connected to a computer, it
will receive power from the computer's USB port.
Depending on the computer, the USB port might
not be able to supply enough power to operate
the unit.
• When connected to a USB 3.0 port, it will
function in High Speed mode equivalent to USB
2.0 (480 Mbps maximum).
• After waking a computer from suspend (sleep)
mode, if the unit does not operate properly, turn
it off and turn it on again or disconnect and
reconnect the USB cable.
• USB 1.1 is not supported.
i DC IN 5V connector
When connected to an iOS device or other
equipment that cannot power this unit, you must
use a USB power adapter, mobile battery or other
power supply. See “When using an iOS device” on
page 13 for details.
o Kensington Security Slot
