8
TASCAM MiNiSTUDIO PERSONAL
Names and functions of parts

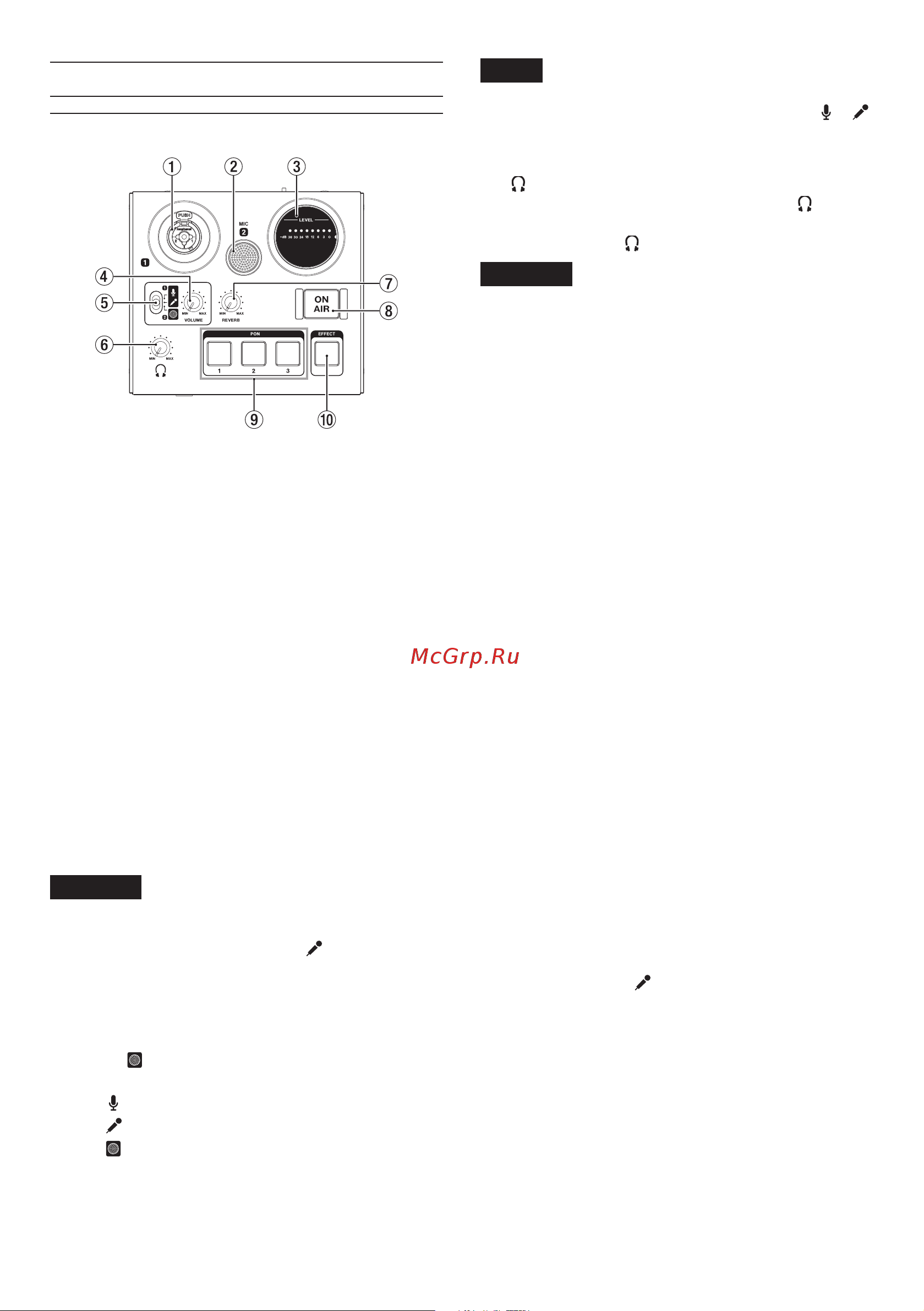

Top panel
1 IN 1 jack (BALANCED)
This XLR/TRS combo jack is an analog input.
i XLR (1: GND, 2: HOT, 3: COLD)
i TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
Use the VOLUME knob (4) to set the input level.
2 IN 2 MIC
This built-in mic is omnidirectional.
3 LEVEL meter
This shows the level of the analog input signal.
When a signal is being input, this lights yellow
when the level is too low or too high, green
when the level is good and red when the signal
is distorting.
4 VOLUME knob
Use to adjust the input levels from the IN 1
jack and IN 2 MIC (1 and 2) on the top of the
unit, as well as from the mic input for 4-pole
headphones with a built-in mic (e) and the
headset jack mic input (r).
CAUTION
The IN 1 jack (1) on the top of the unit, the
mic input for 4-pole headphones with a built-in
mic (e), and the headset jack mic input (r)
cannot be used at the same time.
5 Input switch
Set according to the input source of the IN 1
jack (1) on the top of the unit.
Set to when using IN 2 MIC (2) on the top of
the unit.
Mic (phantom power on, +48V)
Mic (phantom power off)
Built-in mic
NOTE
• When using 4-pole headphones with a built-in
mic or a headset, you can set this to either or .
• Phantom power is not output through the TRS
jack.
6 (headphones) knob
Use to adjust the output level from the
headphones jack (w) and the headphone
outputs for the headphones jack (e).
CAUTION
Before connecting headphones, minimize the
headphones knob. Failure to do so could result
in a sudden loud noise that could harm hearing,
for example.
7 REVERB knob
This knob adjusts the depth of the reverb effect.
When set all the way to MIN, no reverb will be
used and the signal will be 100% dry. When set
all the way to MAX, the signal will be 100% wet.
Use the Settings Panel to set the reverb type and
parameters. (See “Settings Panel overview” on
page 15.)
8 ON AIR button
This turns on air mode on/off.
When it is on, the button lights and the input
sound (1, 2, e, r and t) and sound from the
computer (sound of playback from Windows
Media Player, for example) are mixed and sent to
the computer.
9 PON trigger pads (1/2/3)
Press these pads to play sounds set in the
Settings Panel.
Press them strongly to play sounds loudly and
press them weakly to play sounds softly.
Use the Settings Panel to set the PON trigger pad
parameters. (See “Settings Panel overview” on
page 15.)
0 EFFECT button
Use to turn the effect on/off for the sounds input
from the IN 1 jack and IN 2 MIC (1 and 2) on
the top of the unit, as well as for the mic input for
4-pole headphones with a built-in mic (e) and
the headset jack mic input (r) on the front of
the unit.
Set the effect type and parameters on the
Settings Panel. (See “Settings Panel overview” on
page 15.)
