TASCAM MiNiSTUDIO PERSONAL
19
8

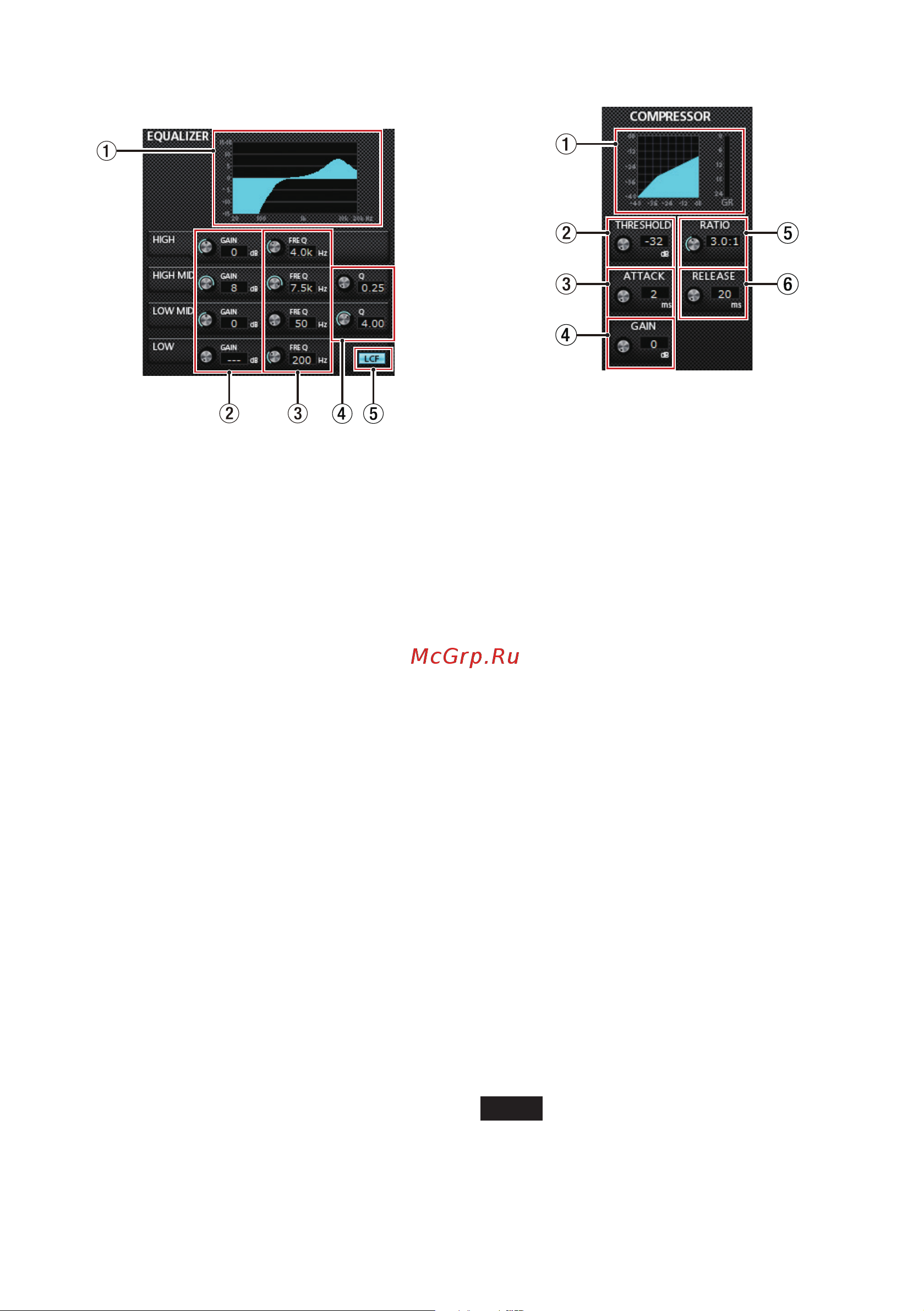

EQUALIZER (4-band parametric EQ)
display area overview
1 EQ graph
This shows the frequency response with the
current equalizer settings.
The graph is shown even when the equalizer is
off.
2 GAIN (HIGH/HIGH MID/LOW MID/LOW) knobs
Set the amount the levels are increased or
decreased for the HIGH, HIGH MID, LOW MID and
LOW bands.
Range: ±12 dB (default: 0 dB)
3 FREQ (HIGH/HIGH MID/LOW MID/LOW) knobs
Set the cutoff frequencies of the HIGH, HIGH MID,
LOW MID and LOW bands.
Ranges
HIGH: 1.7 kHz–18.0 kHz (default: 5 kHz)
HIGH MID: 32 Hz–18.0 kHz (default: 1.2 kHz)
LOW MID: 32 Hz–18.0 kHz (default: 300 Hz)
LOW: 32 Hz–1.6 kHz (default: 80 Hz)
4 Q (HIGH MID/LOW MID) knobs
Set the acutenesses of the peaks of the HIGH MID
and LOW MID bands.
The higher the value the more acute it becomes,
making it affect a narrower frequency band.
The lower the value, the less acute it becomes,
making it affect a broader frequency band.
Ranges
HIGH MID: 0.25–16.00 (default: 1.00)
LOW MID: 0.25–16.00 (default: 1.00)
5 LCF button
Click the LCF button to enable a low cut filter that
cuts noise and other sounds at low frequencies.
The LCF button lights when enabled. (Default: off)
8
COMPRESSOR display area overview
1 Compressor status display
Three meters show the level of the signal input
to the compressor (INPUT), the level of the signal
output from the compressor (OUTPUT) and the
gain reduction caused by the compressor (GR).
2 THRESHOLD knob
Sets the threshold level that will cause the
compressor to start.
Range: −32 dB–0 dB (default: 0 dB)
3 ATTACK knob
Sets the amount of time until the compression
reaches the compression RATIO setting after the
input volume exceeds the threshold.
Range: 2 ms–200 ms (default: 2 ms)
4 GAIN knob
Sets the gain of the output signal.
When the volume is compressed, the output
level becomes lower than the input level. Use the
GAIN knob to increase the output level so that it
is close to the input level.
Range: 0 dB–20 dB (default: 0 dB)
5 RATIO knob
Sets the compression ratio for the input volume.
Turning it right raises the compression ratio,
increasing the amount of compression.
Range: 1.0:1–inf:1 (default: 1.0:1)
6 RELEASE knob
Sets the amount of time until the compression
stops and the sound returns to its uncompressed
level after the input sound goes below the
threshold.
Range: 10 ms–1000 ms (default: 10 ms)
NOTE
When the compressor is off, the compressor
curve will appear but the meters will not be
active.
