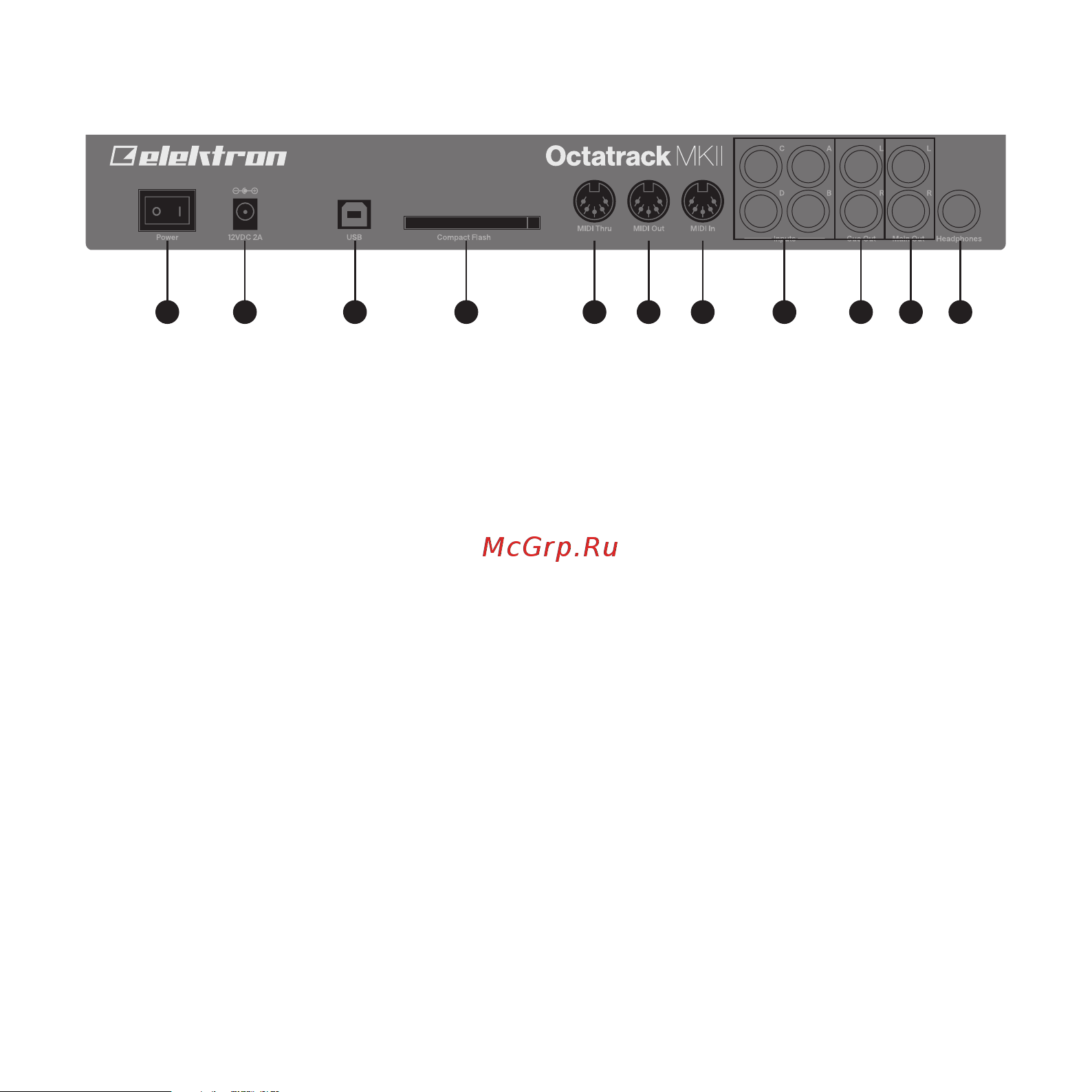

2.2 REAR PANEL CONNECTIONS

1 2 3 4 5 6 7

8 9 10

1. POWER, Switch for turning the unit on and o.

2. DC In, Input for power supply. Use the included PSU-3b power adapter, connected to

a power outlet.

3. USB, For connecting the unit to a computer. Use the included A to B USB 2.0 connec-

tor cable to connect to a computer host.

4. Compact Flash card reader.

5. MIDI THRU, Forwards data from MIDI IN. Use a standard MIDI cable to connect another

MIDI device in the chain.

6. MIDI OUT/SYNC A, MIDI data output. Use a standard MIDI cable to connect to MIDI In

of an external MIDI device.

7. MIDI IN, MIDI data input. Use a standard MIDI cable to connect to MIDI Out of an

external MIDI device.

8. INPUT C/D, A/B, Audio inputs. Use either 1/4” mono phone plug (unbalanced

connection) or 1/4” (Tip/Ring/Sleeve) phone plug (balanced connection)

9. CUE OUT L/R, Cue audio outputs. Use either 1/4” mono phone plug (unbalanced

connection) or 1/4” (Tip/Ring/Sleeve) phone plug (balanced connection).

10. MAIN OUT L/R, Main audio outputs. Use either 1/4” mono phone plug (unbalanced

connection) or 1/4” (Tip/Ring/Sleeve) phone plug (balanced connection).

11. HEADPHONES, Audio output for stereo headphones. Use 1/4” (Tip/Ring/Sleeve)

phone plug.
