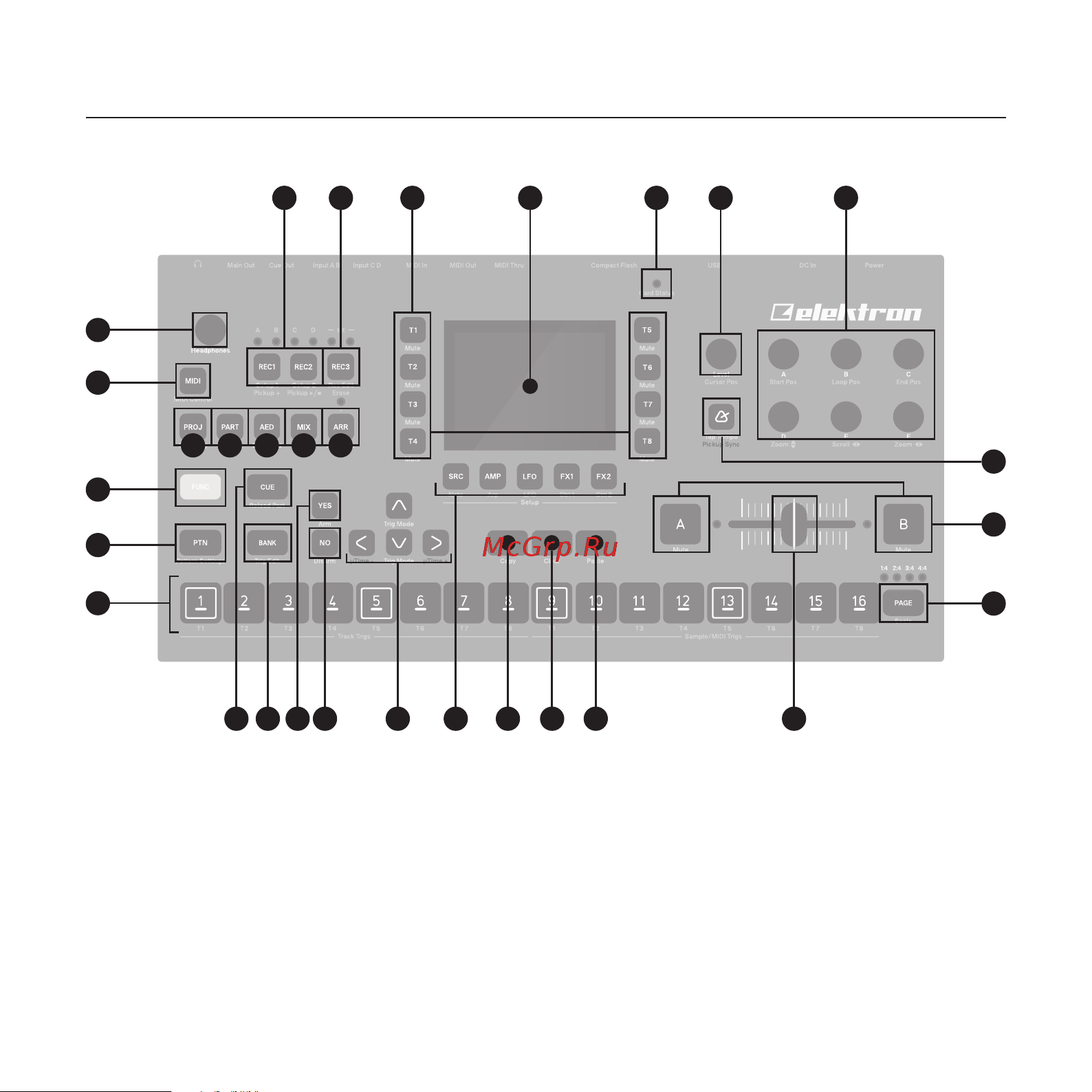

2. PANEL LAYOUT AND CONNECTIONS
2.1 FRONT PANEL CONTROLS
1 2 43 5 6
9
8
10
7
15 1116
21
22
12131718
23
29
1920 14
24 25 26 27 28
3
0
1. [REC1] and [REC2] keys are used for real-time sampling through the external inputs.
[FUNC] + [REC1/2] opens the RECORDING SETUP 1/2 menus.
2. [REC3] key is used for real-time sampling from internal sources. [FUNC] + [REC3]
opens the RECORDING EDIT menu.
3. [TRACK] keys. Press a [TRACK] key to select the corresponding track. [FUNC] +
[TRACK] will mute the selected track. [CUE] + [TRACK] will cue the selected track.
The [TRACK] keys indicate which track is active as well as the mute and cue status.
