User’s Guide OctaMic XTC © RME
19

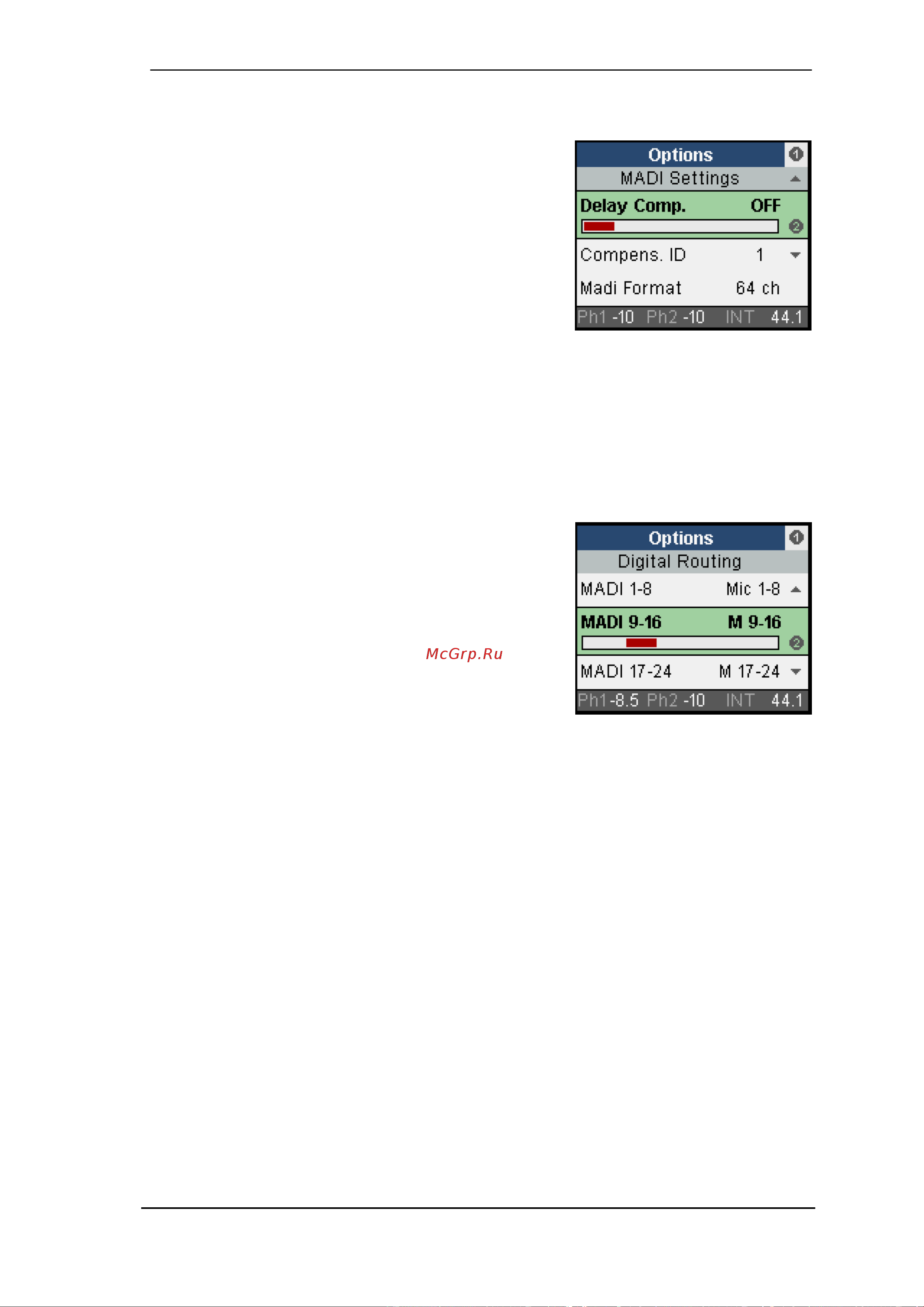

The page MADI Settings has the following entries:
Delay Comp.
Delay Compensation. Choices are Off, Manual, Auto-ID,
Auto-CA (Channel Assignment)
Compens. ID
Manual setting of the Compensation ID, from 1 to 8.
Grayed out when Auto-ID or Auto-CA are active.
MADI Format
Can be set to 56 or 64 channels.
MADI Frame
Can be set to 48k or 96k.
These options are explained in detail in chapter 10.
The page Digital Routing has the following entries:
ADAT Out
Sets the signal source of the ADAT output. Choices are Mic 1-8, ADAT In, AES In, MADI In in
groups of eight, Playback 1-8, 5-12, 9-16,13-20, 17-24.
ADAT 2 Out
See ADAT Out.
AES Out
See ADAT Out.
MADI 1-8 etc
See ADAT Out. All eight 8-channel groups of the MADI
output can be freely assigned to the above signal sources.
Recording
Inputs 1 to 8 are fixed to the USB (Class Compliant mode) recoding channels 1 to 8. The Class
Compliant mode of the XTC provides a total of 24 recording and playback channels each.
Channels 9 to 24 are freely assignable in this menu:
Rec. 9-16
Choices are Mic 1-8, ADAT In, AES In, MADI In in groups of 8 channels
Rec. 17-24
Choices are Mic 1-8, ADAT In, AES In, MADI In in groups of 8 channels
