18.2 Class Compliant Mode under Windows and Mac OS X

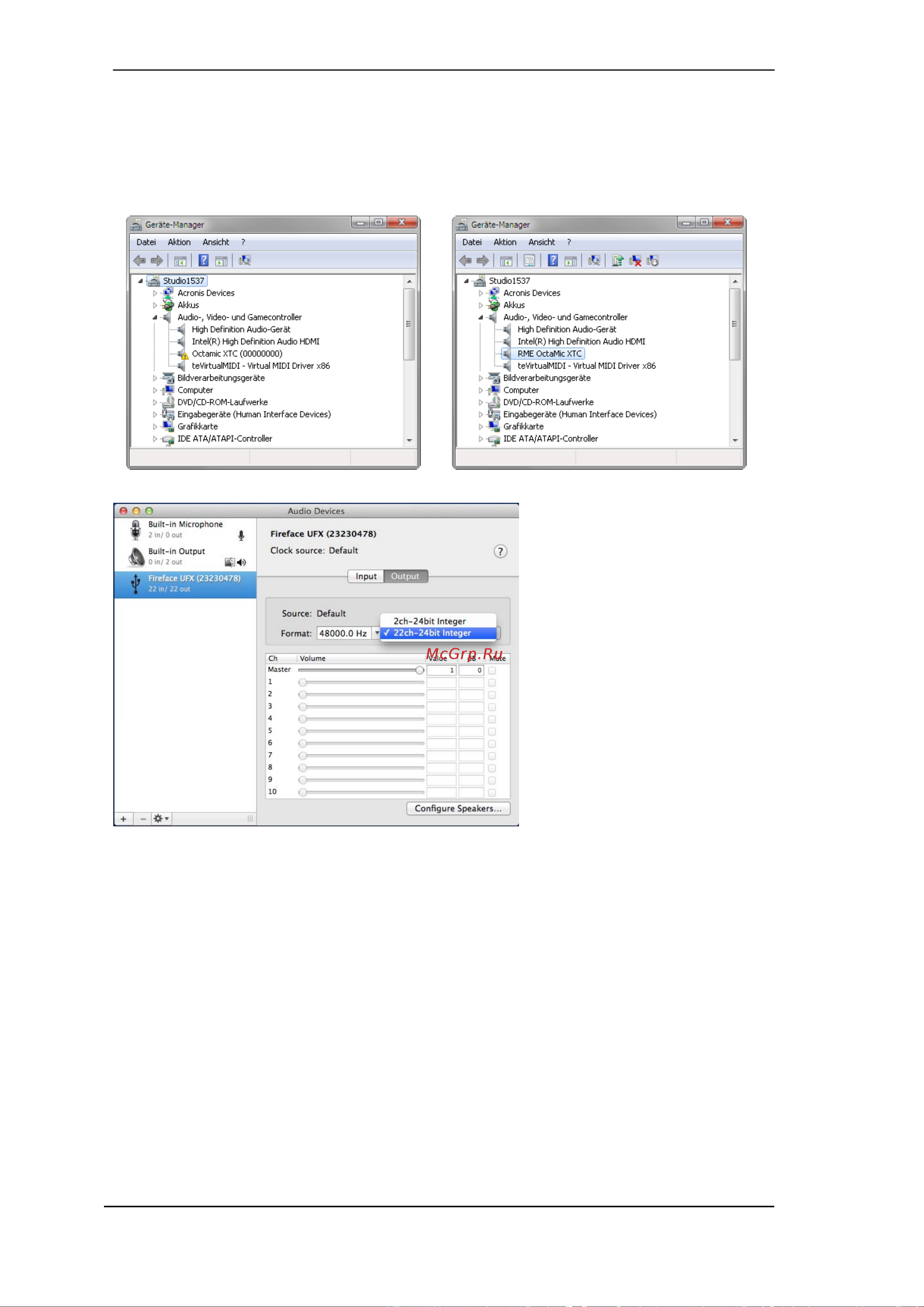

Windows does not support USB Audio 2.0 directly. The XTC will be detected, but automatic
driver installation will fail. After installation of the special driver for the firmware updates (Firm-
ware Enabler) the XTC will be listed as normal audio device, but is not available for WDM or
ASIO operation.
Mac OSX supports USB Audio
2.0, even with more than 2
channels.
The XTC offers 24 input and 24
output channels at up to 96 kHz,
but can also be used in a
resource saving 8-channel mode
with up to 192 kHz.
Alsa (Linux) does not work with USB 2 Class Compliant interfaces at this time, but it seems it
can be fixed (recompiled) to do so. More information is available here:
http://www.mail-archive.com/alsa-user@lists.sourceforge.net/msg28901.html
