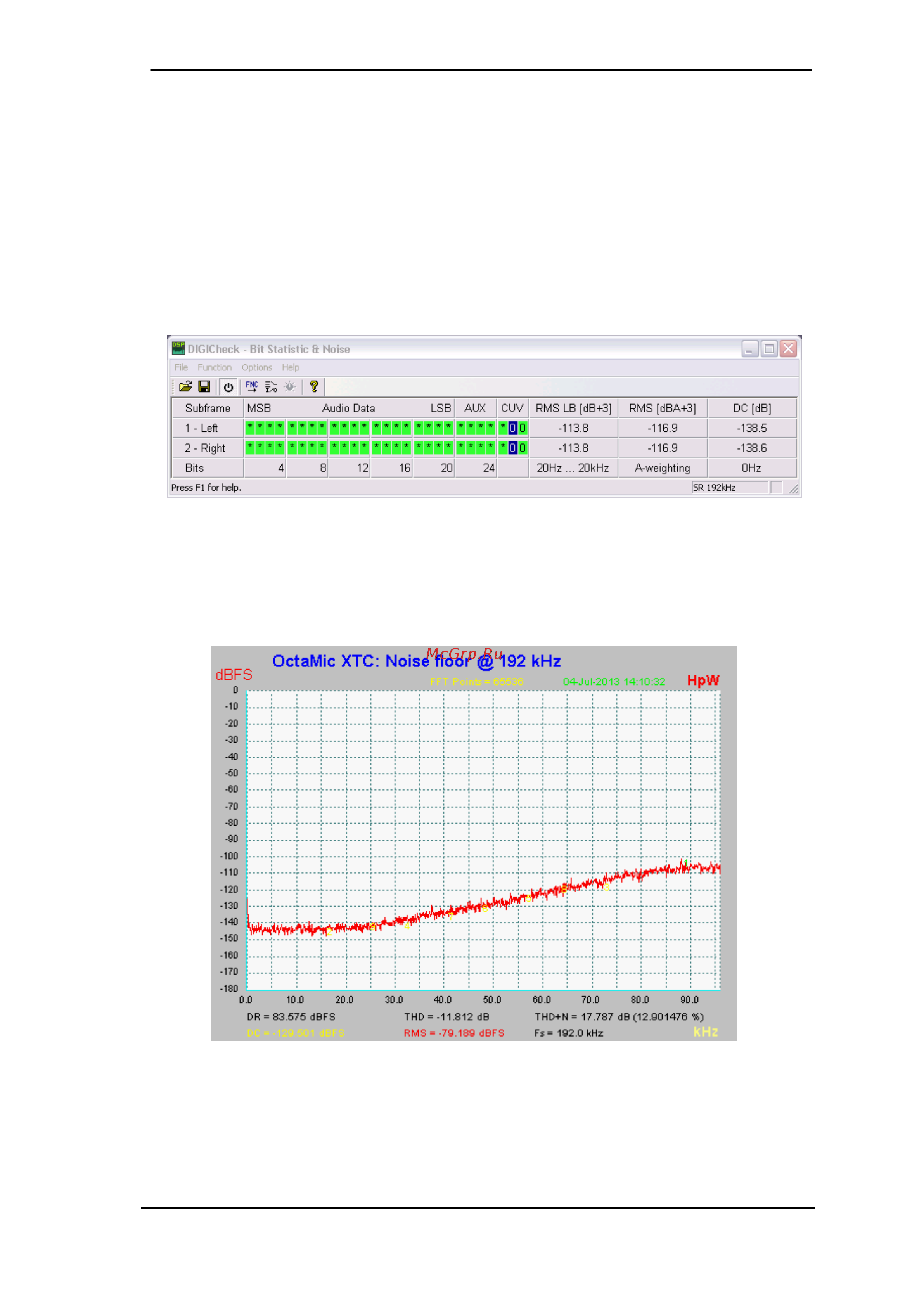

![RME OCTAMIC XTC [55/62] Signal to noise ratio in ds qs operation](/views2/2007994/page55/bg37.png)
User’s Guide OctaMic XTC © RME
55
22.7 Signal to Noise Ratio in DS- / QS-Operation
The outstanding signal to noise ratio of the OctaMic XTC's AD-converters can be verified even
without expensive test equipment, by using record level meters of various software. But when
activating the DS and QS mode, the displayed noise level will rise from -113 dBFS to -106
dBFS at 96 kHz, and –79 dBFS at 192 kHz. This is not a failure. The software measures the
noise of the whole frequency range, at 96 kHz from 0 Hz to 48 kHz (RMS unweighted), at 192
kHz from 0 Hz to 96 kHz.
When limiting the measurement range from 20 Hz to 20 kHz (so called audio bandpass) the
value would be -113 dB again. This can be verified with RME's DIGICheck. The function Bit
Statistic & Noise measures the noise floor by Limited Bandwidth, ignoring DC and ultrasound.
The reason for this behaviour is the noise shaping technology of the analog to digital convert-
ers. They move all noise and distortion to the in-audible higher frequency range, above 30 kHz.
That’s how they achieve their outstanding performance and sonic clarity. Therefore the noise is
slightly increased in the ultrasound area. High-frequent noise has a high energy. Add the quad-
rupled bandwidth, and a wideband measurement will show a significant drop in SNR, while the
human ear will notice absolutely no change in the audible noise floor.
As can be seen in the above picture, the noise floor stays fully unchanged up to 30 kHz. With
sample rates up to 96 kHz the noise shaping happens outside of the transmission range.
