User’s Guide OctaMic XTC © RME

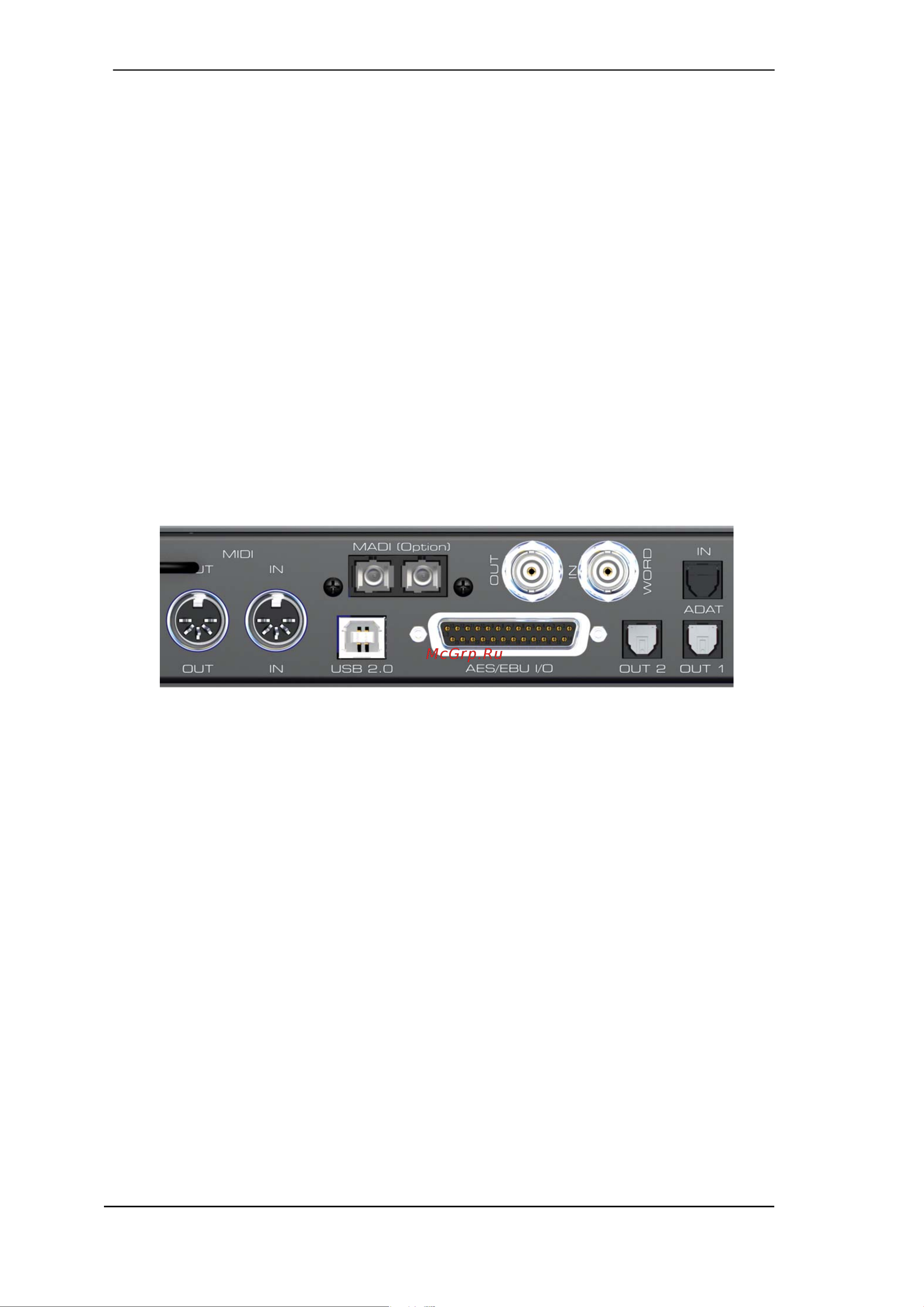

The rear panel of the OctaMic XTC has eight analog inputs, mains power, a USB 2.0 port, MIDI
I/O, word clock I/O, MADI I/O, ADAT I/O and AES/EBU I/O.
BALANCED MICROPHONE / LINE INPUTS (XLR/TRS combo socket): Eight balanced full
range mic/line/inst inputs with 85 dB gain range.
ADAT IN (TOSLINK): Optical ADAT input (clock synchronization, monitoring, format conver-
sion).
ADAT OUT (TOSLINK): Two optical ADAT outputs. These carry full 8 channels in S/MUX2
mode (96 kHz), and 4 channels at 176.4 / 192 kHz.
WORD IN (BNC): In menu Options – Clock the input can be set to be terminated with 75 Ohms.
WORD OUT (BNC): Standard word clock output.
MADI I/O optical: Standard optical MADI ports.
AES/EBU I/O (25-pin D-sub): The D-sub connector provides four AES/EBU outputs (AD sig-
nals) and four AES/EBU inputs (clock synchronization, monitoring, format conversion). The 25
pin D-sub connector is wired according to the widely spread Tascam standard (pinout see
chapter 13.1). The AES I/Os are transformer-coupled. The high sensitivity type input accepts all
common digital sources, even SPDIF.
USB 2.0: Windows: Firmware update. Mac OS X: Class Compliant audio interface and firmware
update. iPad: Class Compliant audio interface via Camera Connection Kit.
MIDI I/O (5-pin DIN): MIDI input and output via 5-pin DIN jacks. Used to remote control the Oc-
taMic XTC, and to transmit MIDI data via MADI or USB.
IEC receptacle for power connection. The specially developed, internal hi-performance switch
mode power supply lets the OctaMic XTC operate in the range of 100V to 240V AC. It is short-
circuit-proof, has an integrated line-filter, is fully regulated against voltage fluctuations, and sup-
presses mains interference.
